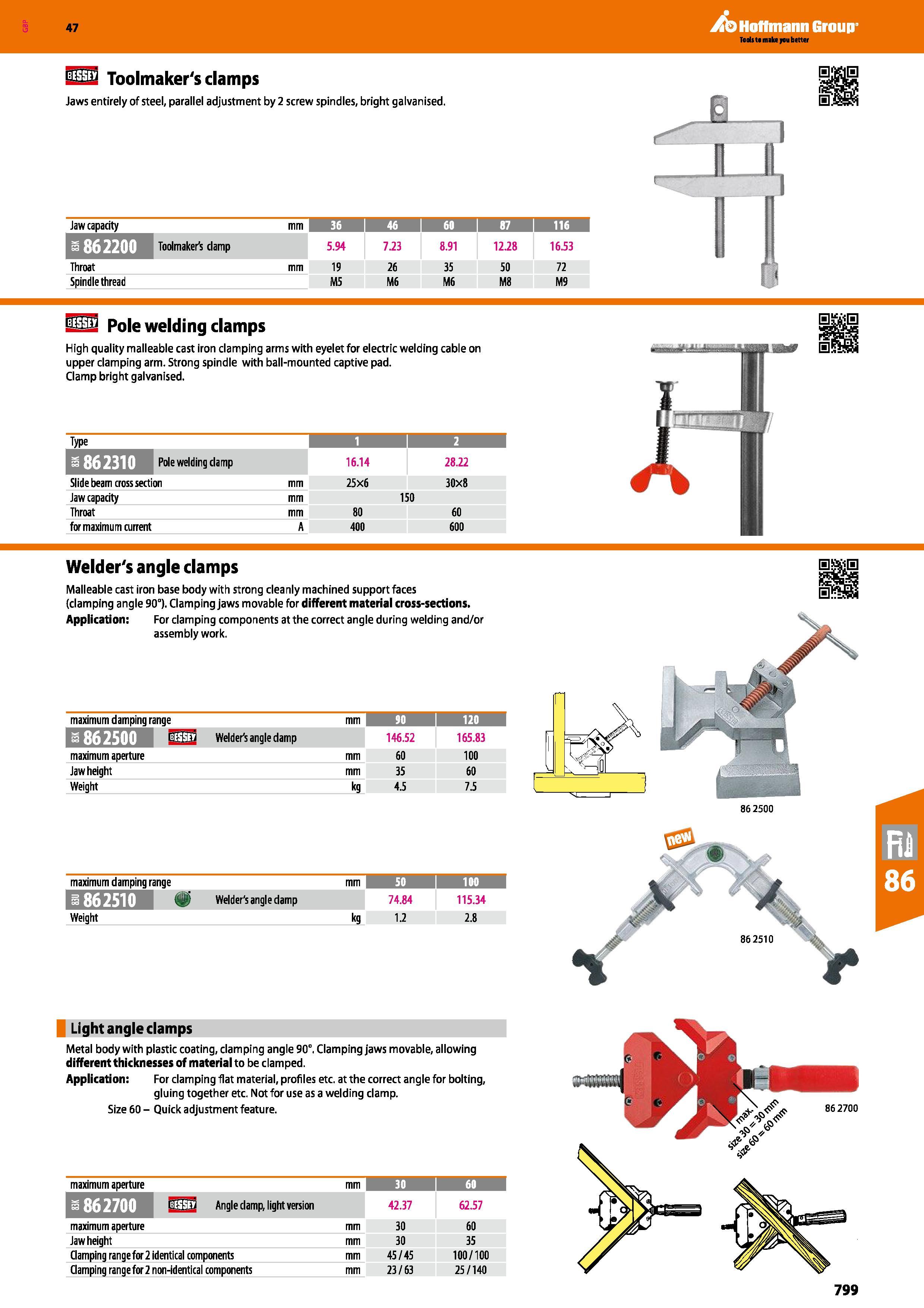

Hoffmann Group 47 122 Toolmaker's clamps Jaws entirely of steel, parallel adjustment by 2 screw spindles, bright galvanised. Jaw capacity mm i 46 1 60 i 87 116 1 a 862200 5.94 7.23 8.91 12.28 16.53 Throat mm 19 26 35 50 72 Spindle thread M5 M6 M6 M8 M9 122 Pole welding clamps High quality malleable cast iron clamping arms with eyelet for electric welding cable on upper clamping arm. Strong spindle with ball-mounted captive pad. Clamp bright galvanised. Type 1 I 2 Pole welding clamp 16.14 28.22 Slide beam cross section mm 25x6 30x8 Jaw capacity mm 150 Throat mm 80 60 for maximum current A 400 600 Welder's angle clamps Malleable cast iron base body with strong cleanly machined support faces (clamping angle 90°). Clamping jaws movable for different material cross-sections. Application: For clamping components at the correct angle during welding and/or assembly work. maximum damping range mm 90 1 120 is>:fmniiJ BM3 Welder's angle damp 146.52 165.83 maximum aperture mm 60 100 Jaw height mm 35 60 Weight kg 4.5 15 maximum damping range mm 50 1 ioo mmm m Welder's angle damp 74.84 115.34 Weight kg 1.2 2.8 J0 < 86 2500 Light angle damps Metal body with plastic coating, clamping angle 90°. Clamping jaws movable, allowing different thicknesses of material to be clamped. Application: For clamping flat material, profiles etc. at the correct angle for bolting, gluing together etc. Not for use as a welding clamp. Size 60 - Quick adjustment feature. maximum aperture mm 30 I 60 I IMS Angle clamp, light version 42.37 62.57 maximum aperture mm 30 60 Jaw height mm 30 35 Clamping range for 2 identical components mm 45/45 100/100 Clamping range for 2 non-identical components mm 23/63 25/140 & 86 2700 799
