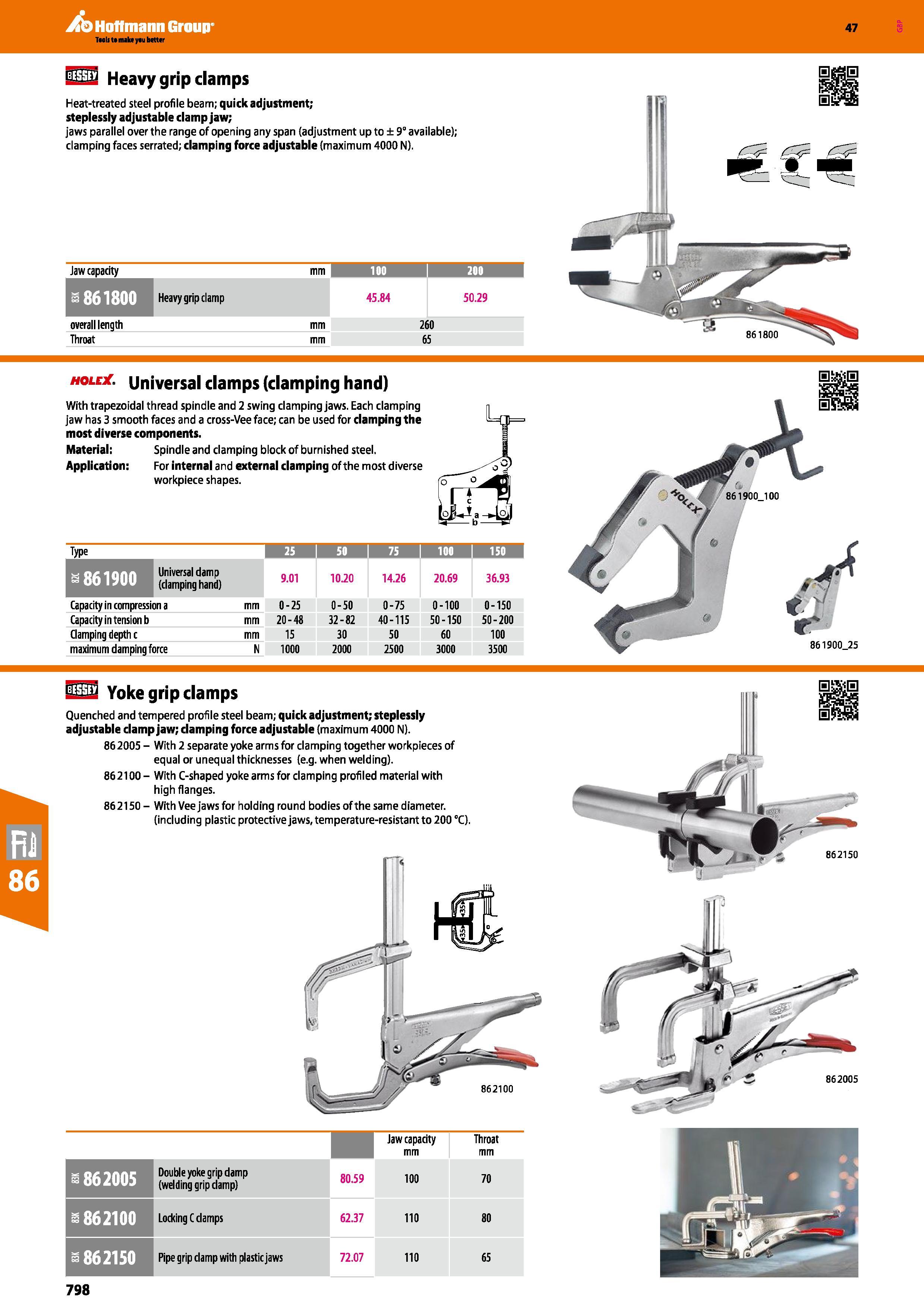

Hoffmann Group 47 122 Heavy grip clamps Heat-treated steel profile beam; quick adjustment; steplessly adjustable clamp jaw; jaws parallel over the range of opening any span (adjustment up to ± 9° available); clamping faces serrated; clamping force adjustable (maximum 4000 N). Jaw capacity KXI 100 1 200 I IlfclMlIlB Heavy grip damp 45.84 50.29 overall length mm 260 Throat mm 65 hole , universal clamps (clamping hand) With trapezoidal thread spindle and 2 swing clamping jaws. Each clamping jaw has 3 smooth faces and a cross-Vee face; can be used for clamping the most diverse components. Material: Spindle and clamping block of burnished steel. Application: For internal and external clamping of the most diverse workpiece shapes. Type 1 25 50 1 75 i 100 150 I Universal damp (clamping hand) 9.01 10.20 14.26 20.69 36.93 Capacity in compression a mm 0-25 0-50 0-75 0-100 0-150 Capacity in tension b mm 20-48 32-82 40-115 50-150 50-200 Clamping depth c mm 15 30 50 60 100 maximum damping force N 1000 2000 2500 3000 3500 122 Yoke grip clamps Quenched and tempered profile steel beam; quick adjustment; steplessly adjustable clamp jaw; clamping force adjustable (maximum 4000 N). 86 2005 - With 2 separate yoke arms for clamping together workpieces of equal or unequal thicknesses (e.g. when welding). 86 2100 - With C-shaped yoke arms for clamping profiled material with high flanges. 862150 - With Vee jaws for holding round bodies of the same diameter. (including plastic protective jaws, temperature-resistant to 200 °C). 862005 Jaw capacity mm Throat mm S3 862005 Double yoke grip damp (welding grip clamp) 80.59 100 70 S3 862100 Locking C clamps 62.37 110 80 S3 862150 Pipe grip clamp with plastic jaws 72.07 110 65 798
