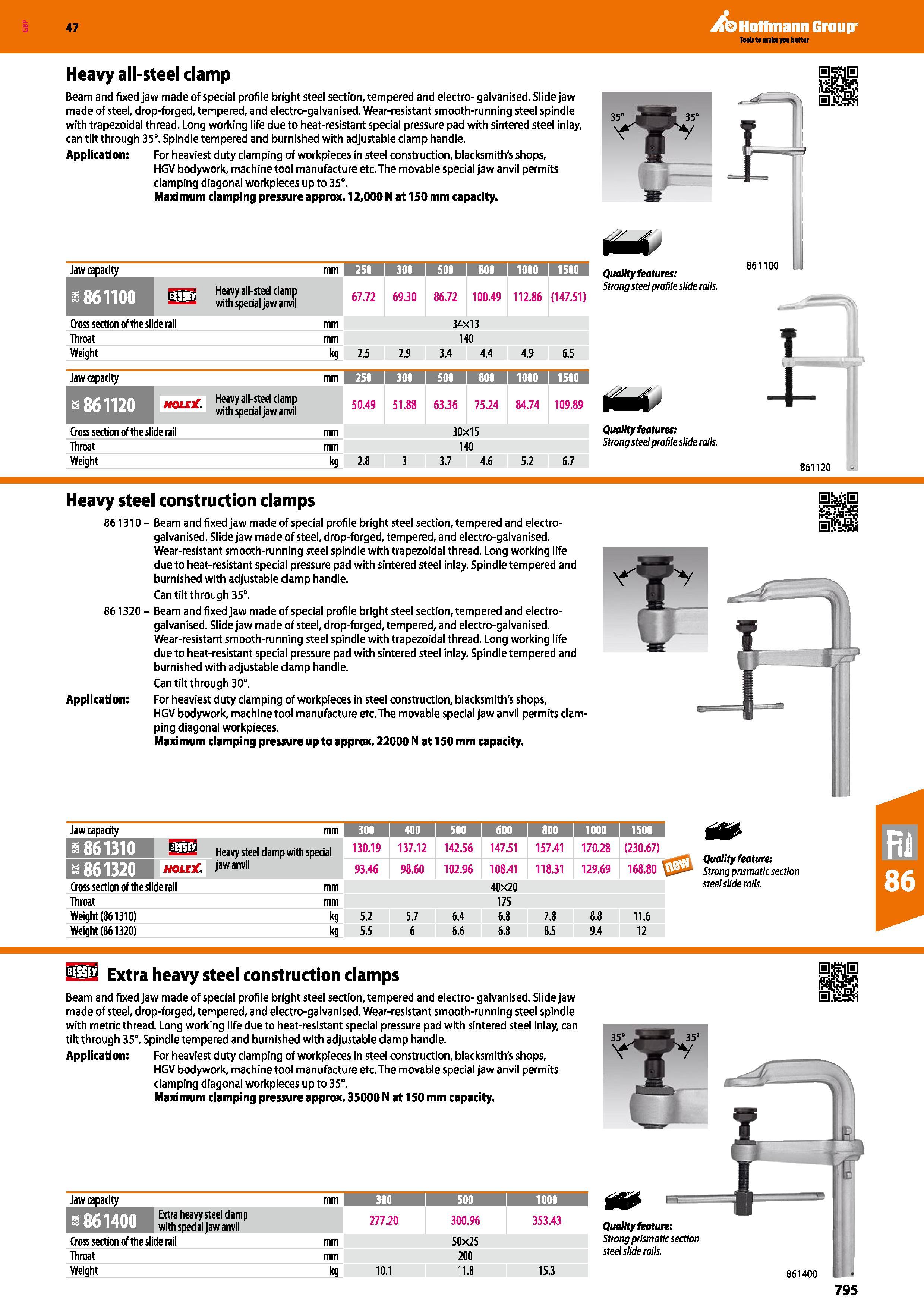

Hoffmann Group 47 Heavy all-steel clamp Beam and fixed jaw made of special profile bright steel section, tempered and electro- galvanised. Slide jaw made of steel, drop-forged, tempered, and electro-galvanised. Wear-resistant smooth-running steel spindle with trapezoidal thread. Long working life due to heat-resistant special pressure pad with sintered steel inlay, can tilt through 35°. Spindle tempered and burnished with adjustable clamp handle. Application: For heaviest duty clamping of workpieces in steel construction, blacksmith's shops, HGV bodywork, machine tool manufacture etc. The movable special jaw anvil permits clamping diagonal workpieces up to 35°. Maximum damping pressure approx. 12,000 N at 150 mm capacity. Jaw capacity mm 250 I 300 I 500 Mm 1000 1 1500 861100 Epra Heavy all-steel damp with special jaw anvil 67.72 69.30 86.72 100.49 112.86 (147.51) Cross section of the slide rail mm 34x13 Throat mm 140 Weight kg 2.5 2.9 3.4 4.4 4.9 6.5 Jaw capacity mm 250 I 300 I 500 1000 I 1500 861120 holoC Heavy all-steel damp with special jaw anvil 50.49 51.88 63.36 75.24 84.74 109.89 Quality features: Strong steel profile slide rails. Cross section of the slide rail Throat Weight mm 30x15 mm 140 kg 2.8 3 3.7 4.6 5.2 6.7 Quality features: Strong steel profile slide rails. 861120 Heavy steel construction clamps 861310- Beam and fixed jaw made of special profile bright steel section, tempered and electrogalvanised. Slide jaw made of steel, drop-forged, tempered, and electro-galvanised. Wear-resistant smooth-running steel spindle with trapezoidal thread. Long working life due to heat-resistant special pressure pad with sintered steel inlay. Spindle tempered and burnished with adjustable clamp handle. Can tilt through 35°. 861320- Beam and fixed jaw made of special profile bright steel section, tempered and electrogalvanised. Slide jaw made of steel, drop-forged, tempered, and electro-galvanised. Wear-resistant smooth-running steel spindle with trapezoidal thread. Long working life due to heat-resistant special pressure pad with sintered steel inlay. Spindle tempered and burnished with adjustable clamp handle. Can tilt through 30°. Application: For heaviest duty clamping of workpieces in steel construction, blacksmith's shops, HGV bodywork, machine tool manufacture etc. The movable special jaw anvil permits clamping diagonal workpieces. Maximum damping pressure up to approx. 22000 N at 150 mm capacity. Jaw capacity mm MlBWl 500 I 600 IOI 1000 I 1500 a 861310 1551 Heavy steel dampwith special 130.19 137.12 142.56 147.51 157.41 170.28 (230.67) 861320 HOLE . jaw anvil 93.46 98.60 102.96 108.41 118.31 129.69 168.80 \ Cross section of the slide rail mm 40x20 Throat mm 175 Weight (861310) kg 5.2 5.7 6.4 6.8 7.8 8.8 11.6 Weight (861320) kg 5.5 6 6.6 6.8 8.5 9.4 12 Quality feature: Strong prismatic section steel slide rails. HH Extra heavy steel construction clamps Beam and fixed jaw made of special profile bright steel section, tempered and electro- galvanised. Slide jaw made of steel, drop-forged, tempered, and electro-galvanised. Wear-resistant smooth-running steel spindle with metric thread. Long working life due to heat-resistant special pressure pad with sintered steel inlay, can tilt through 35°. Spindle tempered and burnished with adjustable clamp handle. Application: For heaviest duty clamping of workpieces in steel construction, blacksmith's shops, HGV bodywork, machine tool manufacture etc. The movable special jaw anvil permits clamping diagonal workpieces up to 35°. Maximum clamping pressure approx. 35000 N at 150 mm capacity. Jaw capacity 300 500 iooo jj Extra heavy steel clamp with special jaw anvil 277.20 300.96 353.43 Cross section of the slide rail mm 50x25 Throat mm 200 Weight kg 10.1 11.8 15.3
