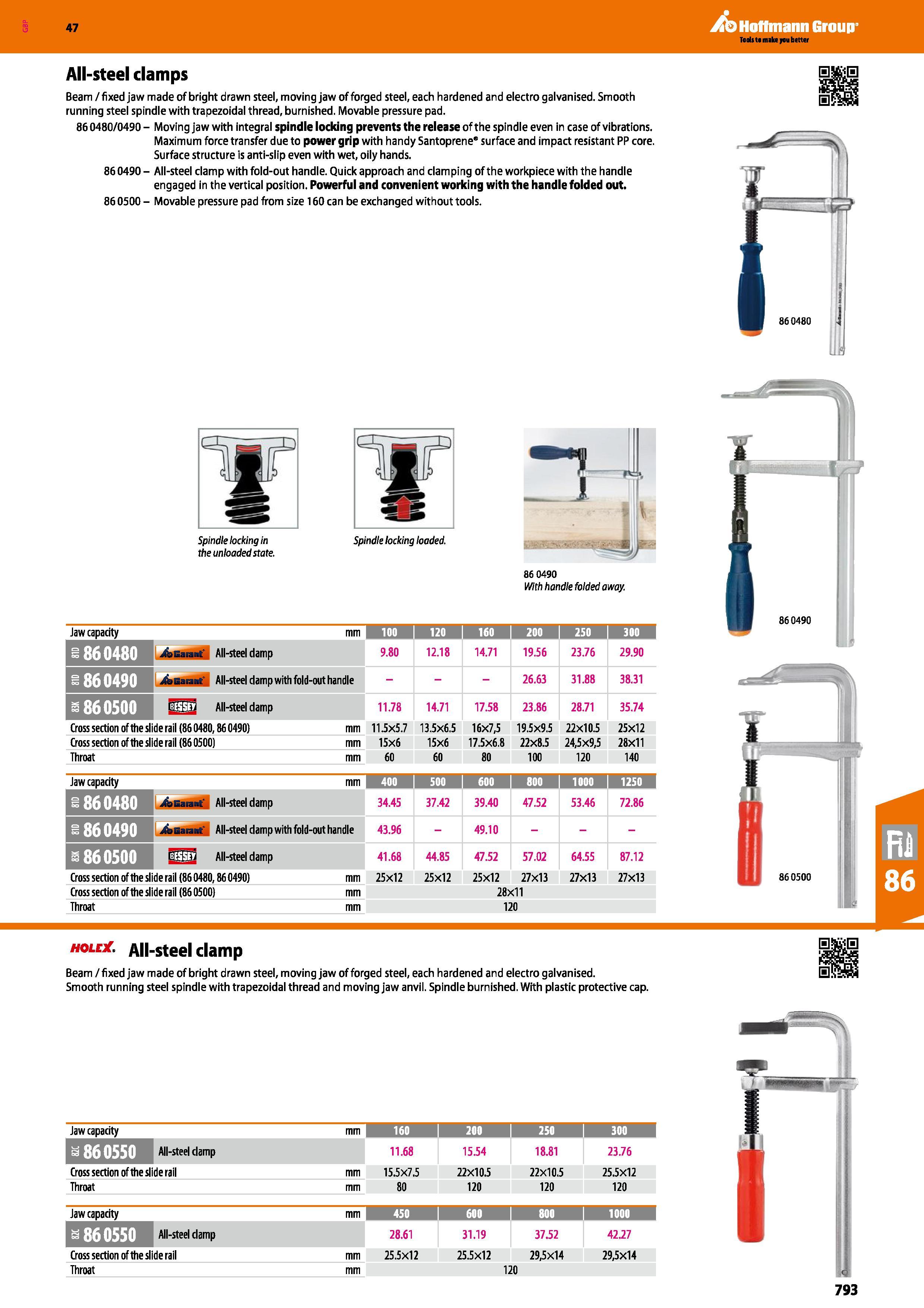

Hoffmann Group 47 All-steel clamps Beam/fixed jaw made of bright drawn steel, moving jaw of forged steel, each hardened and electro galvanised. Smooth running steel spindle with trapezoidal thread, burnished. Movable pressure pad. 860480/0490 - Moving jaw with integral spindle locking prevents the release of the spindle even in case of vibrations. Maximum force transfer due to power grip with handy Santoprene surface and impact resistant PP core. Surface structure is anti-slip even with wet, oily hands. 860490 - All-steel clamp with fold-out handle. Quick approach and clamping of the workpiece with the handle engaged in the vertical position. Powerful and convenient working with the handle folded out. 86 0500 - Movable pressure pad from size 160 can be exchanged without tools. Spindle locking in the unloaded state. Spindle locking loaded. 86 0490 With handle folded away. Jaw capacity mm 100 120 i 160 I 200 I 250 i 300 All-steel damp 9.80 12.18 14.71 19.56 23.76 29.90 S 86 0490 j&jia j All-steel damp with fold-out handle 26.63 31.88 38.31 860500 All-steel damp 11.78 14.71 17.58 23.86 28.71 35.74 Cross section of the slide rail (86 0480,86 0490) mm 11.5x5.7 13.5x6.5 16x7,5 19.5x9.5 22x10.5 25x12 Cross section of the slide rail (86 0500) mm 15x6 15x6 17.5x6.8 22x8.5 24,5x9,5 28x11 Throat mm 60 60 80 100 120 140 Jaw capacity mm 400 500 1 600 IH1I 1000 1 1250 jfana L All-steel damn 34.45 37.42 39.40 47.52 53.46 72.86 S 86 0490 /bGarant All-steel damp with fold-out handle 43.96 - 49.10 860500 All-steel damp 41.68 44.85 47.52 57.02 64.55 87.12 Cross section of the slide rail (86 0480,86 0490) mm 25x12 25x12 25x12 27x13 27x13 27x13 Cross section of the slide rail (86 0500 Throat mm 28x11 120 860490 860500 hole . All-steel damp Beam /fixed jaw made of bright drawn steel, moving jaw of forged steel, each hardened and electro galvanised. Smooth running steel spindle with trapezoidal thread and moving jaw anvil. Spindle burnished. With plastic protective cap. Jaw capacity mm 160 i 200 I 250 300 f a 86 0550 11.68 15.54 18.81 23.76 Cross section of the slide rail mm 15.5x7.5 22x10.5 22x10.5 25.5x12 Throat mm 80 120 120 120 Jaw capacity mm 450 i 600 I 800 i 1000 1 s 86 0550 28.61 31.19 37.52 42.27 Cross section of the slide rail mm 25.5x12 25.5x12 29,5x14 29,5x14 Throat mm 120 793
