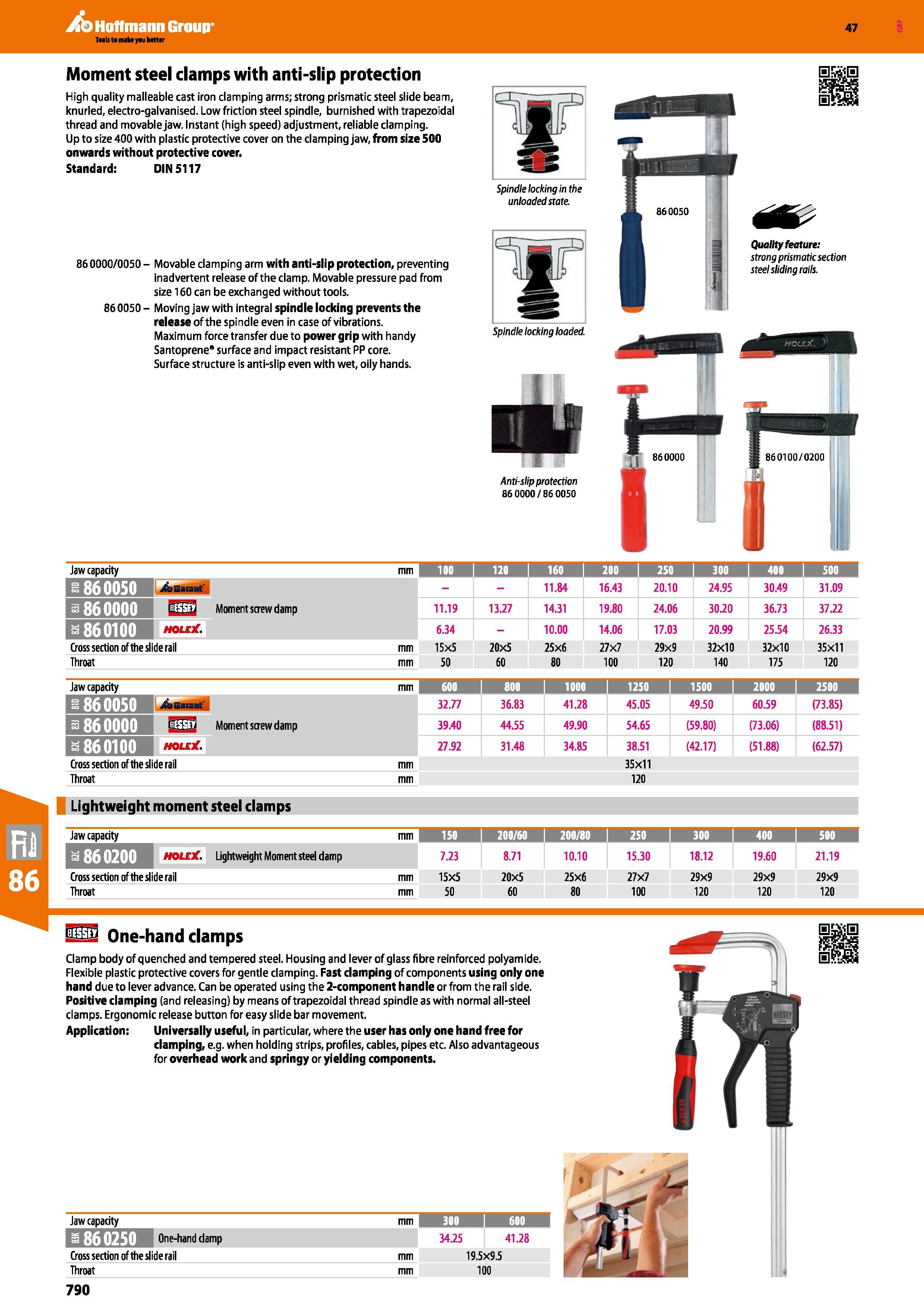

Hoffmann Group 47 Moment steel clamps with anti-slip protection High quality malleable cast iron clamping arms; strong prismatic steel slide beam, knurled, electro-galvanised. Low friction steel spindle, burnished with trapezoidal thread and movable jaw. Instant (high speed) adjustment, reliable clamping. Up to size 400 with plastic protective cover on the clamping jaw, from size 500 onwards without protective cover. Standard: DIN 5117 Spindle locking in the unloaded state 86 0000/0050 - Movable clamping arm with anti-slip protection, preventing inadvertent release of the clamp. Movable pressure pad from size 160 can be exchanged without tools. 86 0050 - Moving jaw with integral spindle locking prevents the release of the spindle even in case of vibrations. Maximum force transfer due to power grip with handy Santoprene" surface and impact resistant PP core. Surface structure is anti-slip even with wet, oily hands. Spindle locking loaded. Anti-slip protection 86 0000/86 0050 Quality feature: strong prismatic section steel sliding rails. Jaw capacity mm 100 120 160 200 250 300 nun 500 1 I ” 86 0050 11.84 16.43 20.10 24.95 30.49 31.09 223 Moment screw damp 11.19 13.27 14.31 19.80 24.06 30.20 36.73 37.22 Is 860100 ra 6.34 - 10.00 14.06 17.03 20.99 25.54 26.33 Cross section of the slide rail mm 15x5 20x5 25x6 27x7 29x9 32x10 32x10 35x11 Throat mm 50 60 80 100 120 140 175 120 Jaw capacity mm 600 800 i 1000 I 1250 1500 \ 2000 I 2500 860050 J&fiaiant 32.77 36.83 41.28 45.05 49.50 60.59 (73.85) = 860000 BFFB2 Moment screw damp 39.40 44.55 49.90 54.65 (59.80) (73.06) (88.51) h 860100 HOLEjC. 27.92 31.48 34.85 38.51 (42.17) (51.88) (62.57) Cross section of the slide rail mm 35x11 Throat mm 120 Lightweight moment steel clamps Jaw capacity mm 150 I 200/60 I 200/80 i 250 300 400 500 jsTfiljWi HOLEX, Lightweight Moment steel damp 7.23 8.71 10.10 15.30 18.12 19.60 21.19 Cross section of the slide rail mm 15x5 20x5 25x6 27X7 29x9 29x9 29x9 Throat mm 50 60 80 100 120 120 120 HI One-hand damps Clamp body of quenched and tempered steel. Housing and lever of glass fibre reinforced polyamide. Flexible plastic protective covers for gentle clamping. Fast clamping of components using only one hand due to lever advance. Can be operated using the 2-component handle or from the rail side. Positive clamping (and releasing) by means of trapezoidal thread spindle as with normal all-steel clamps. Ergonomic release button for easy slide bar movement. Application: Universally useful, in particular, where the user has only one hand free for damping, e.g. when holding strips, profiles, cables, pipes etc. Also advantageous for overhead work and springy or yielding components. Jaw capacity mm 300 I 600 j 1 h 86 0250 MBSM 34.25 41.28 Cross section of the slide rail mm 19.5x9.5 Throat mm 100 790
