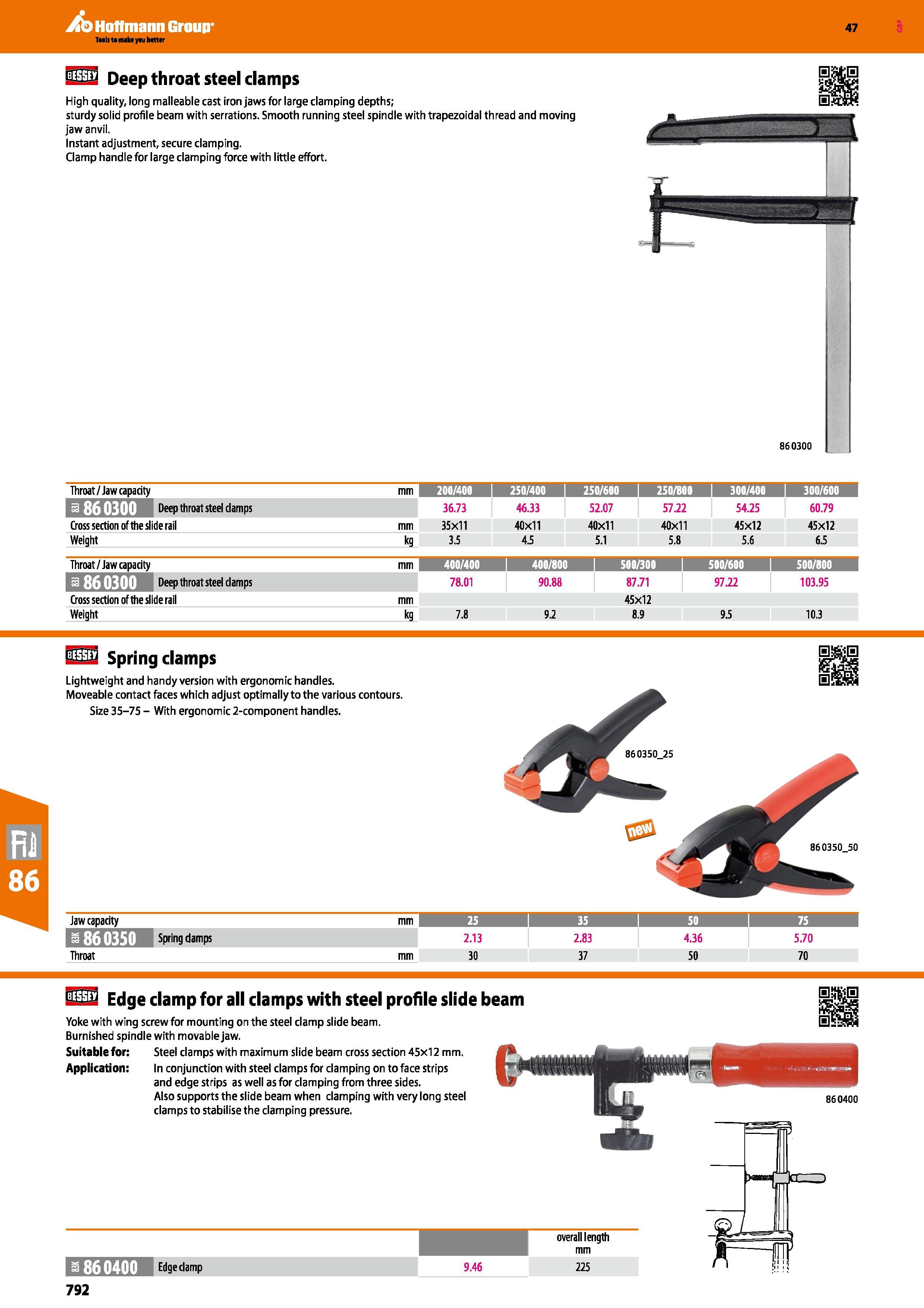

Hoffmann Group 47 122 Deep throat steel clamps High quality, long malleable cast iron jaws for large clamping depths; sturdy solid profile beam with serrations. Smooth running steel spindle with trapezoidal thread and moving jaw anvil. Instant adjustment, secure clamping. Clamp handle for large clamping force with little effort. 860300 Throat /Jaw capacity mm 200/400 I 250/400 250/600 j 250/800 300/400 I 300/600 86 0300 Deep throat steel damps 36.73 46.33 52.07 57.22 54.25 60.79 Cross section of the slide rail mm 35x11 40x11 40x11 40x11 45x12 45x12 Weight kg 3.5 4.5 5.1 5.8 5.6 6.5 Throat /Jaw capacity mm 400/400 400/800 I 500/300 I 500/600 I 500/800 = 86 0300 Deep throat steel clamps 78.01 90.88 87.71 97.22 103.95 Cross section of the slide rail mm 45x12 Weight kg 7.8 9.2 8.9 95 10.3 HSS Spring clamps Lightweight and handy version with ergonomic handles. Moveable contact faces which adjust optimally to the various contours. Size 35-75 - With ergonomic 2-component handles. Jaw capacity mm 25 1 35 50 1 75 i 86 0350 2.13 2.83 4.36 5.70 Throat 30 37 50 70 HSS Edge clamp for all clamps with steel profile slide beam Yoke with wing screw for mounting on the steel clamp slide beam. Burnished spindle with movable jaw. Suitable for: Steel clamps with maximum slide beam cross section 45x12 mm. Application: In conjunction with steel clamps for clamping on to face strips and edge strips as well as for clamping from three sides. Also supports the slide beam when clamping with very long steel clamps to stabilise the clamping pressure. 860400 overall length mm h 86 0400 Edge damp 9.46 225 792
