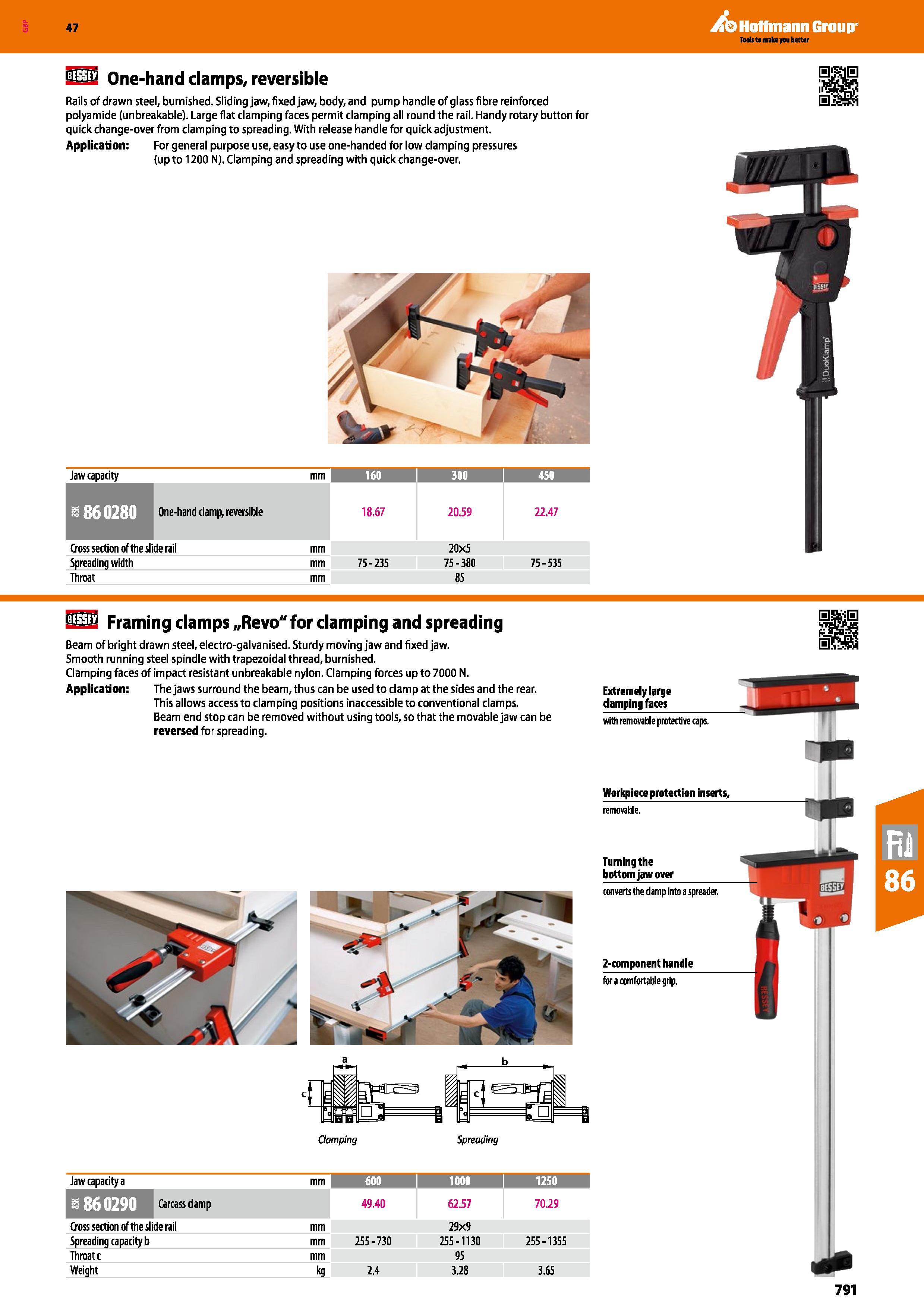

Hoffmann Group 47 Jaw capacity mm 160 1 300 ; 450 h 86 0280 One-hand clamp, reversible 18.67 20.59 22.47 Cross section of the slide rail mm 20x5 Spreading width mm 75 - 235 75 - 380 75-535 Throat mm 85 122 One-hand damps, reversible Rails of drawn steel, burnished. Sliding jaw, fixed jaw, body, and pump handle of glass fibre reinforced polyamide (unbreakable). Large flat clamping faces permit clamping all round the rail. Handy rotary button for quick change-over from clamping to spreading. With release handle for quick adjustment. Application: For general purpose use, easy to use one-handed for low clamping pressures (upto 1200 N). Clamping and spreading with quick change-over. il Framing clamps „Revo" for clamping and spreading Beam of bright drawn steel, electro-galvanised. Sturdy moving jaw and fixed jaw. Smooth running steel spindle with trapezoidal thread, burnished. Clamping faces of impact resistant unbreakable nylon. Clamping forces up to 7000 N. Application: The jaws surround the beam, thus can be used to clamp at the sides and the rear. This allows access to clamping positions inaccessible to conventional clamps. Beam end stop can be removed without using tools, so that the movable jaw can be reversed for spreading. Jaw capacity a mm i 1000 I 1250 1 a 86 0290 49.40 62.57 70.29 Cross section of the slide rail mm 29x9 Spreading capacity b mm 255-730 255-1130 255-1355 Throatc mm 95 Weight kg 2.4 3.28 3.65 Extremely large damping faces with removable protective caps. Workpiece protection inserts, removable. Turning the bottom jaw over converts the damp into i spreader. 2-component handle for a comfortable grip. 791 Clamping Spreading
