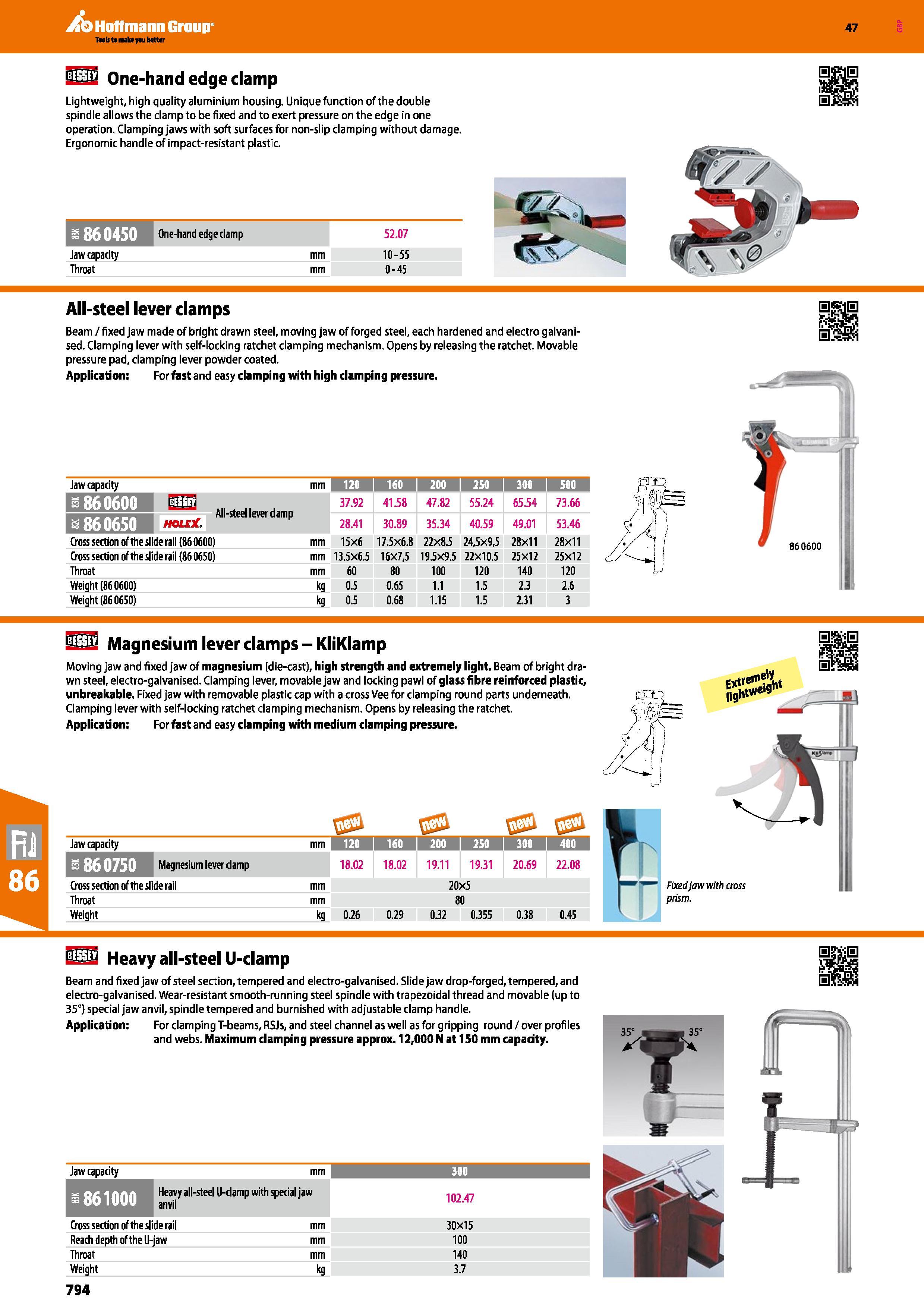

Hoffmann Group 47 122 One-hand edge clamp Lightweight, high quality aluminium housing. Unique function of the double spindle allows the clamp to be fixed and to exert pressure on the edge in one operation. Clamping jaws with soft surfaces for non-slip clamping without damage. Ergonomic handle of impact-resistant plastic. One-hand edge damp 52.07 Jaw capacity mm 10-55 Throat mm 0-45 All-steel lever clamps Beam/fixed jaw made of bright drawn steel, moving jaw of forged steel, each hardened and electro galvanised. Clamping lever with self-locking ratchet clamping mechanism. Opens by releasing the ratchet. Movable pressure pad, clamping lever powder coated. Application: For fast and easy clamping with high clamping pressure. Jaw capacity mm I 120 I 160 I 200 I 250 s 86 0600 BM3 All-steel lever damp HOLE . 37.92 41.58 47.82 55.24 65.54 73.66 a 86 0650 28.41 30.89 35.34 40.59 49.01 53.46 Cross section of the slide rail (86 0600) mm 15x6 17.5x6.8 22x8.5 24,5x9,5 28x11 28x11 Cross section of the slide rail (86 0650) mm 13.5x6.5 16x7,5 19.5x9.5 22x10.5 25x12 25x12 Throat mm 60 80 100 120 140 120 Weight (860600) kg 0.5 0.65 1.1 1.5 2.3 2.6 Weight (860650) kg 0.5 0.68 1.15 1.5 2.31 3 KHi Magnesium lever clamps - KliKlamp Moving jaw and fixed jaw of magnesium (die-cast), high strength and extremely light. Beam of bright drawn steel, electro-galvanised. Clamping lever, movable jaw and locking pawl of glass fibre reinforced plastic, unbreakable. Fixed jaw with removable plastic cap with a cross Vee for clamping round parts underneath. Clamping lever with self-locking ratchet clamping mechanism. Opens by releasing the ratchet. Application: For fast and easy clamping with medium clamping pressure. Jaw capacity mm 1 120 I 160 nm 250 -; 11 1 > vflM Magnesium lever clamp 18.02 18.02 19.11 19.31 20.69 22.08 Cross section of the slide rail mm 20x5 Throat mm 80 Weight kg 0.26 0.29 0.32 0.355 0.38 0.45 S5S& Fixed jaw with cross prism. Hill Heavy all-steel U-damp Beam and fixed jaw of steel section, tempered and electro-galvanised. Slide jaw drop-forged, tempered, and electro-galvanised. Wear-resistant smooth-running steel spindle with trapezoidal thread and movable (up to 35°) special jaw anvil, spindle tempered and burnished with adjustable clamp handle. Application: For clamping T-beams, RSJs, and steel channel as well as for gripping round / over profiles and webs. Maximum clamping pressure approx. 12,000 N at 150 mm capacity. Jaw capacity I 861000 Heavy all-steel U-damp with spedal jaw anvil Cross section of the slide rail Reach depth of the J-jaw Throat Weight 794 mm kg 102.47 30x15 100 140 3.7 35° CM 35° T 860600
