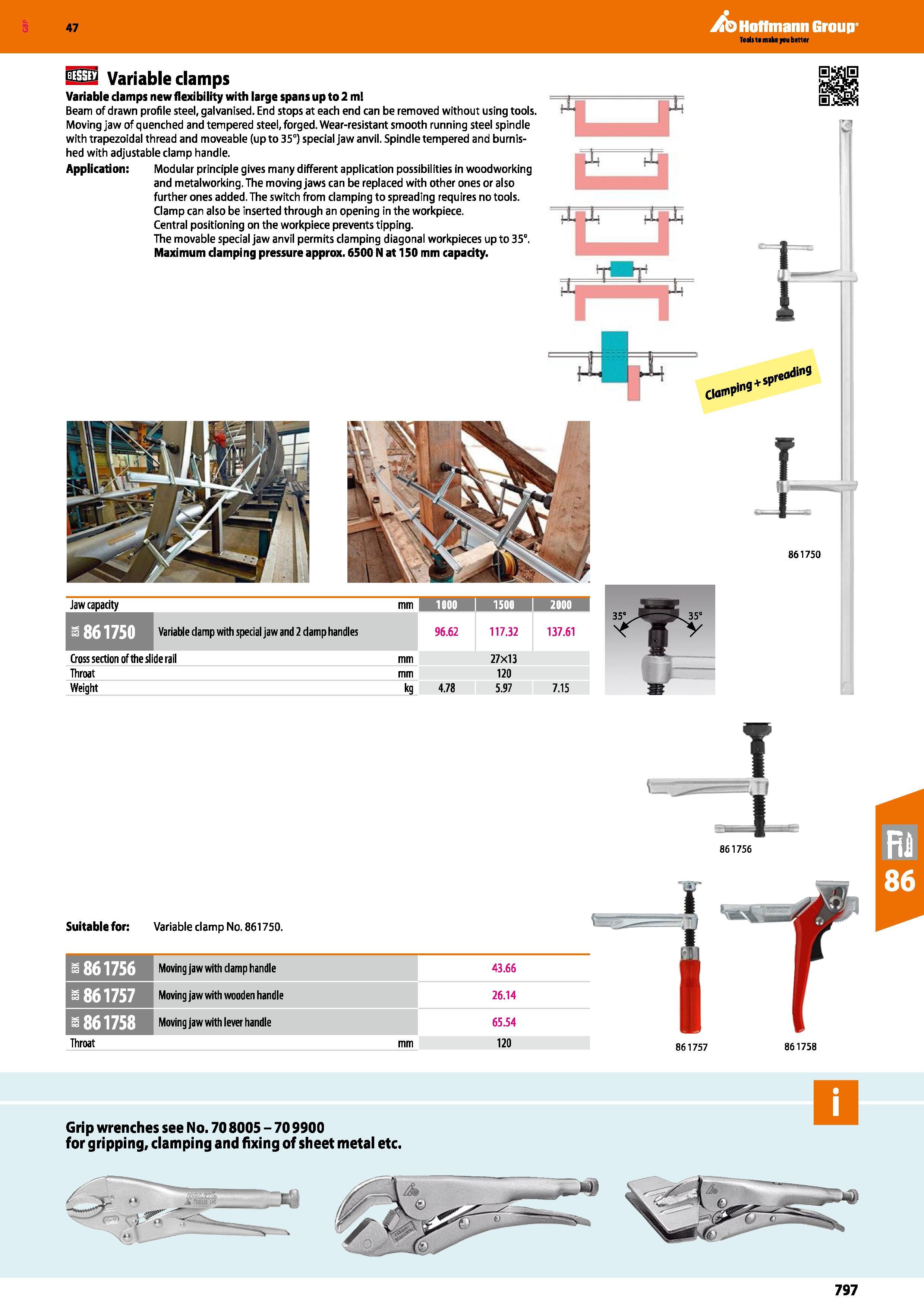

Hoffmann Group 47 122 Variable clamps Variable clamps new flexibility with large spans up to 2 m Beam of drawn profile steel, galvanised. End stops at each end can be removed without using tools. Moving jaw of quenched and tempered steel, forged. Wear-resistant smooth running steel spindle with trapezoidal thread and moveable (up to 35°) special jaw anvil. Spindle tempered and burnished with adjustable clamp handle. Application: Modular principle gives many different application possibilities in woodworking and metalworking. The moving jaws can be replaced with other ones or also further ones added. The switch from clamping to spreading requires no tools. Clamp can also be inserted through an opening in the workpiece. Central positioning on the workpiece prevents tipping. The movable special jaw anvil permits clamping diagonal workpieces up to 35°. Maximum clamping pressure approx. 6500 N at 150 mm capacity. " 7 ciomPin9+ spi odin9 861750 Jaw capacity mm 1000 I 1500 I 2000 861750 Variable damp with special jaw and 2 damp handles 96.62 117.32 137.61 Cross section of the slide rail Throat Weight mm kg 4.78 27x13 120 5.97 7.15 T 861756 Suitable for: Variable clamp No. 861750. a 861756 Moving jaw with damp handle 43.66 = 861757 Moving jaw with wooden handle 26.14 h 861758 Moving jaw with lever handle 65.54 Throat mm 120 861757 861758 Grip wrenches see No. 70 8005 - 70 9900 for gripping, damping and fixing of sheet metal etc. 797
