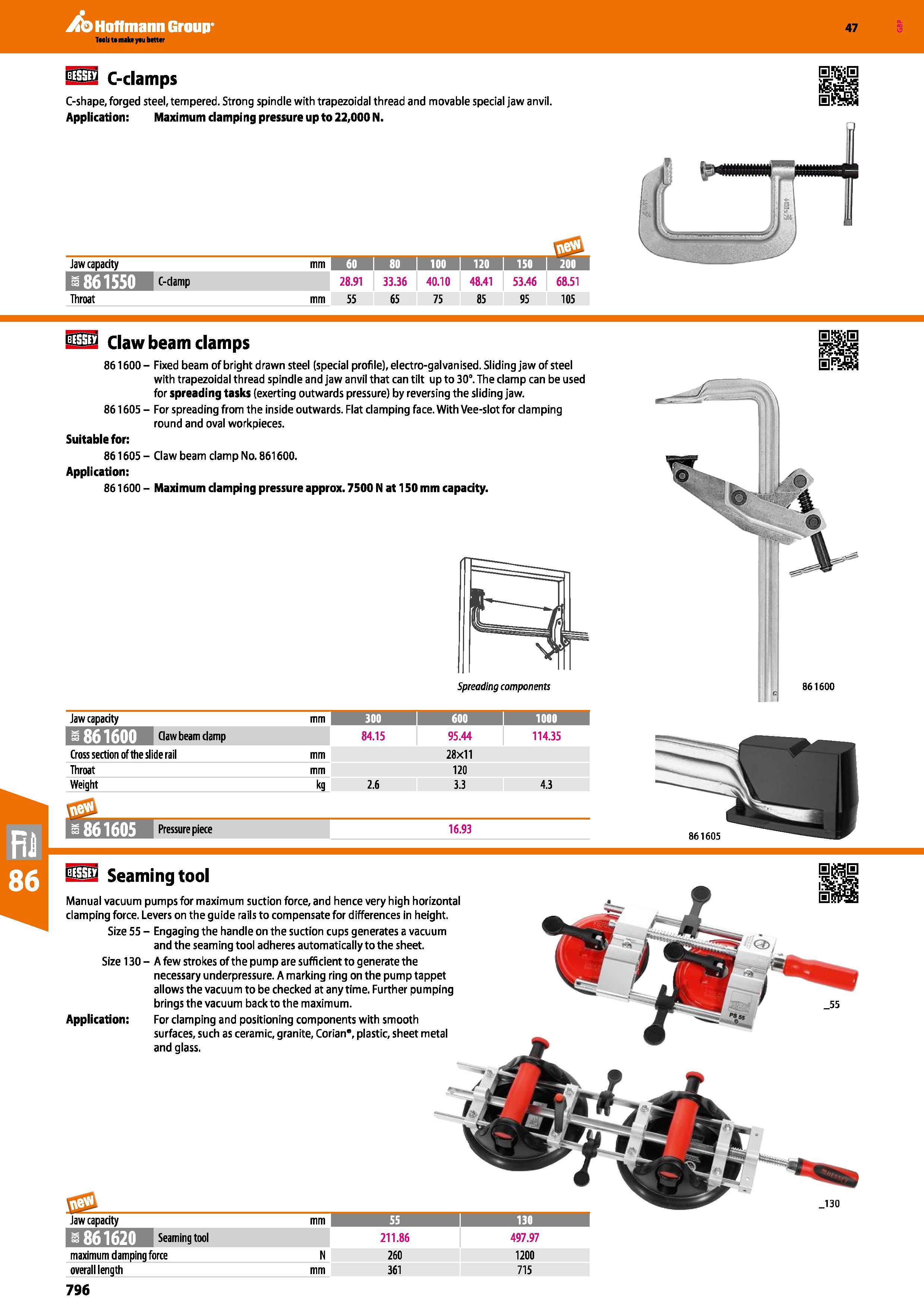

Hoffmann Group 47 122 C-damps C-shape, forged steel, tempered. Strong spindle with trapezoidal thread and movable special jaw anvil. Application: Maximum damping pressure upto 22,000 N. Jaw capacity mm MTB imim\ 100 1 120 1 150 Ii861550 BBS 28.91 33.36 40.10 48.41 53.46 68.51 Throat mm 55 65 75 85 95 105 HSS Claw beam damps 861600 - Fixed beam of bright drawn steel (special profile , electro-galvanised. Sliding jaw of steel with trapezoidal thread spindle and jaw anvil that can tilt up to 30°. The clamp can be used for spreading tasks (exerting outwards pressure) by reversing the sliding jaw. 861605 - For spreading from the inside outwards. Flat clamping face. With Vee-slot for clamping round and oval workpieces. Suitable for: 861605 - Claw beam clamp No. 861600. Application: 861600 - Maximum clamping pressure approx. 7500 N at 150 mm capacity. BFafif 861600 Jaw capacity mm 300 I 600 1000 I Ii861600 M.UI.MLM 84.15 95.44 114.35 Cross section of the slide rail mm 28x11 Throat mm 120 Weight kg 2.6 3.3 4.3 Pressure piece 16.93 Jaw capacity mm 55 IB 861620 KBS 211.86 maximum damping force N 260 overall length mm 361 HI Seaming tool Manual vacuum pumps for maximum suction force, and hence very high horizontal clamping force. Levers on the guide rails to compensate for differences in height. Size 55 - Engaging the handle on the suction cups generates a vacuum and the seaming tool adheres automatically to the sheet. Size 130- A few strokes of the pump are sufficient to generate the necessary underpressure. A marking ring on the pump tappet allows the vacuum to be checked at anytime. Further pumping brings the vacuum back to the maximum. Application: For clamping and positioning components with smooth surfaces, such as ceramic, granite, Corian’, plastic, sheet metal and glass.
