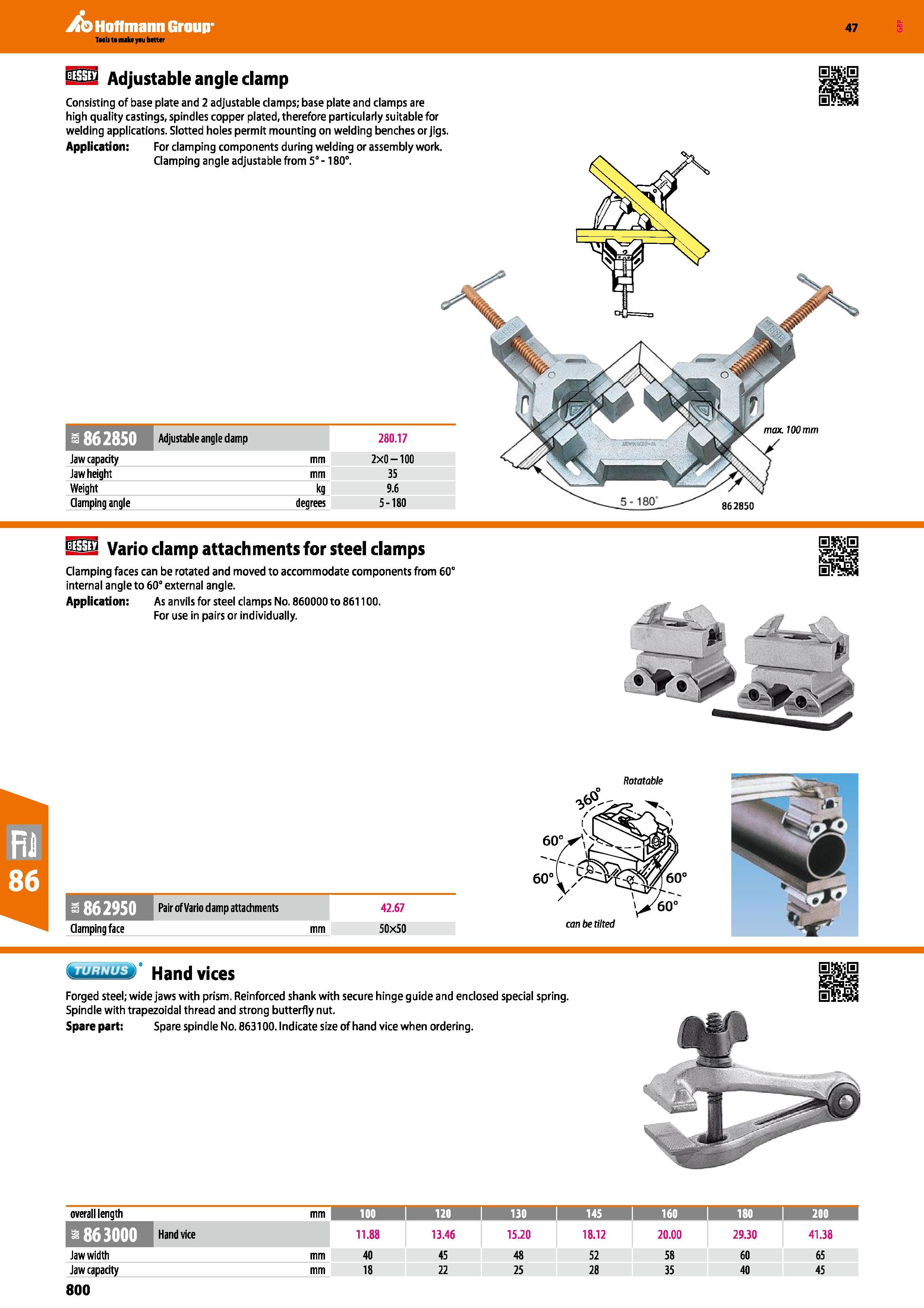

i 862850 Jaw capacity Jaw height Weight Clamping angle USD Vario clamp attachments for steel clamps Clamping faces can be rotated and moved to accommodate components from 60° internal angle to 60° external angle. Application: As anvils for steel clamps No. 860000 to 861100. For use in pairs or individually. Hand vices Forged steel; wide jaws with prism. Reinforced shank with secure hinge guide and enclosed special spring. Spindle with trapezoidal thread and strong butterfly nut. Spare part: Spare spindle No. 863100. Indicate size of hand vice when ordering. overall length mm 100 i 120 130 145 1 160 180 200 1 Hand vice 11.88 13.46 15.20 18.12 20.00 29.30 41.38 Jaw width mm 40 45 48 52 58 60 65 Jaw capacity mm 18 22 25 28 35 40 45 Hoffmann Group Taals to malnyau better HSS Adjustable angle clamp Consisting of base plate and 2 adjustable clamps; base plate and clamps are high quality castings, spindles copper plated, therefore particularly suitable for welding applications. Slotted holes permit mounting on welding benches or jigs. Application: For clamping components during welding or assembly work. Clamping angle adjustable from 5°-180°. Adjustable angle damp 280.17 mm 2x0-100 mm 35 kg 9.6 degrees 5-180 max. 100 mm 862850
