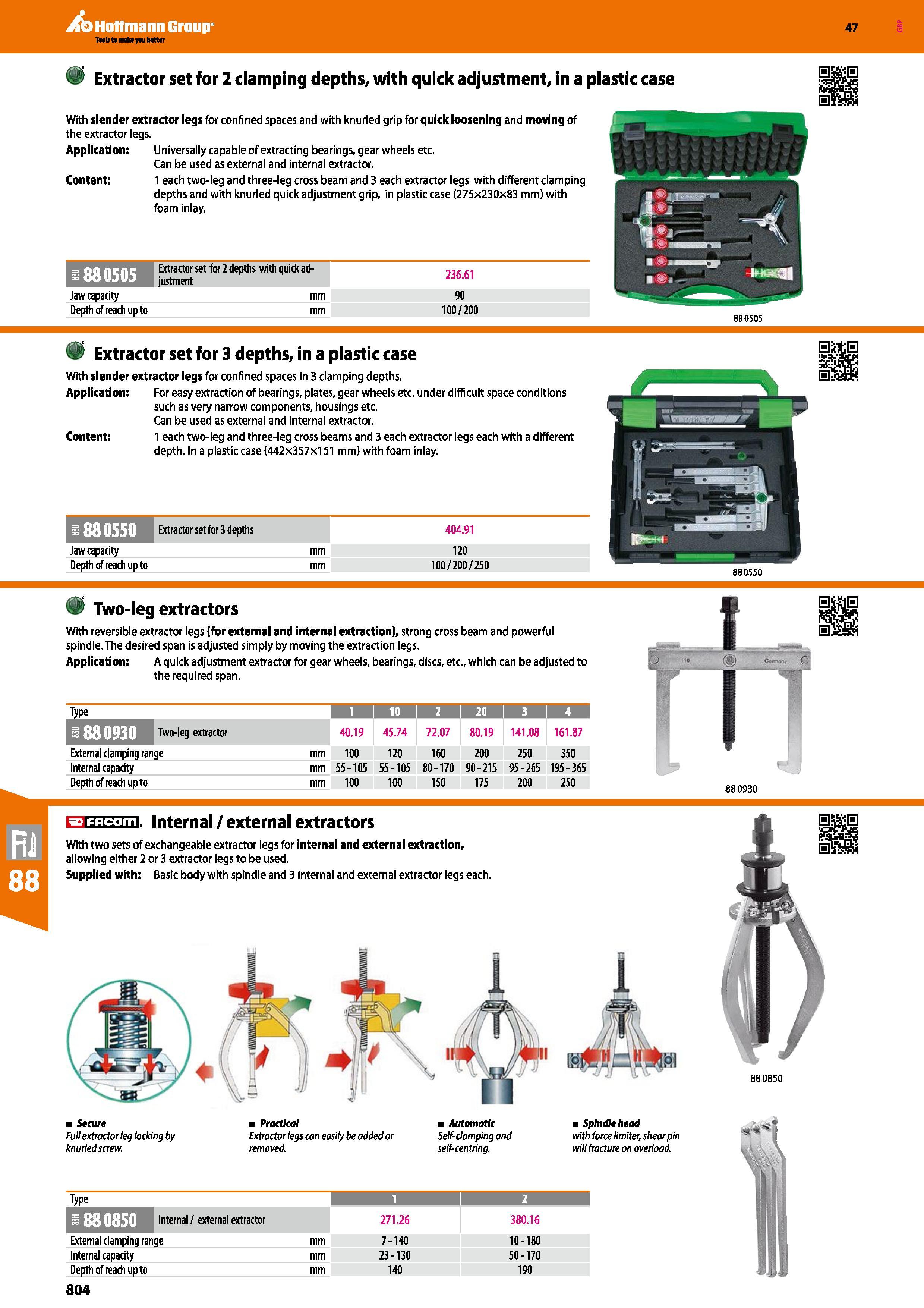

Hoffmann Group 47 Extractor set for 2 clamping depths, with quick adjustment, in a plastic case With slender extractor legs for confined spaces and with knurled grip for quick loosening and moving of the extractor legs. Application: Universally capable of extracting bearings, gear wheels etc. Can be used as external and internal extractor. Content: 1 each two-leg and three-leg cross beam and 3 each extractor legs with different clamping depths and with knurled quick adjustment grip, in plastic case (275x230x83 mm) with foam inlay. 188 Extractor set for 2 depths with quick adjustment 236.61 Jaw capacity mm 90 Depth of reach up to mm 100 / 200 Extractor set for 3 depths, in a plastic case With slender extractor legs for confined spaces in 3 clamping depths. Application: For easy extraction of bearings, plates, gear wheels etc. under difficult space conditions such as very narrow components, housings etc. Can be used as external and internal extractor. Content: 1 each two-leg and three-leg cross beams and 3 each extractor legs each with a different depth. In a plastic case (442x357x151 mm)withfoam inlay. Extractorsetfor3depths 404.91 Jaw capacity mm 120 Depth of reach up to mm 100/200/250 Two-leg extractors With reversible extractor legs (for external and internal extraction), strong cross beam and powerful spindle. The desired span is adjusted simply by moving the extraction legs. Application: A quick adjustment extractor for gear wheels, bearings, discs, etc., which can be adjusted to the required span. r u m Qeatan, ( > Type 1 1 io 1 2 I 2 I 3 I 4 i 88 0930 40.19 45.74 72.07 80.19 141.08 161.87 External clamping range mm 100 120 160 200 250 350 Internal capacity mm 55-105 55-105 80-170 90-215 95-265 195-365 Depth of reach upto mm 100 100 150 175 200 250 I 880930 E3ld;L-i-Jnl. Internal / external extractors With two sets of exchangeable extractor legs for internal and external extraction, allowing either 2 or 3 extractor legs to be used. Supplied with: Basic body with spindle and 3 internal and external extractor legs each. 880850 Secure Full extractor leg locking by knurled screw. Practical Extractor legs can easily be added or removed. Automatic Self-clamping and self-centring. Spindle head with force limiter, shear pin will fracture on overload. Type 1 1 2 CTTlTrrB Internal/external extractor 271.26 380.16 External clamping range mm 7-140 10-180 Internal capacity mm 23-130 50-170 Depth of reach upto mm 140 190 804 880505
