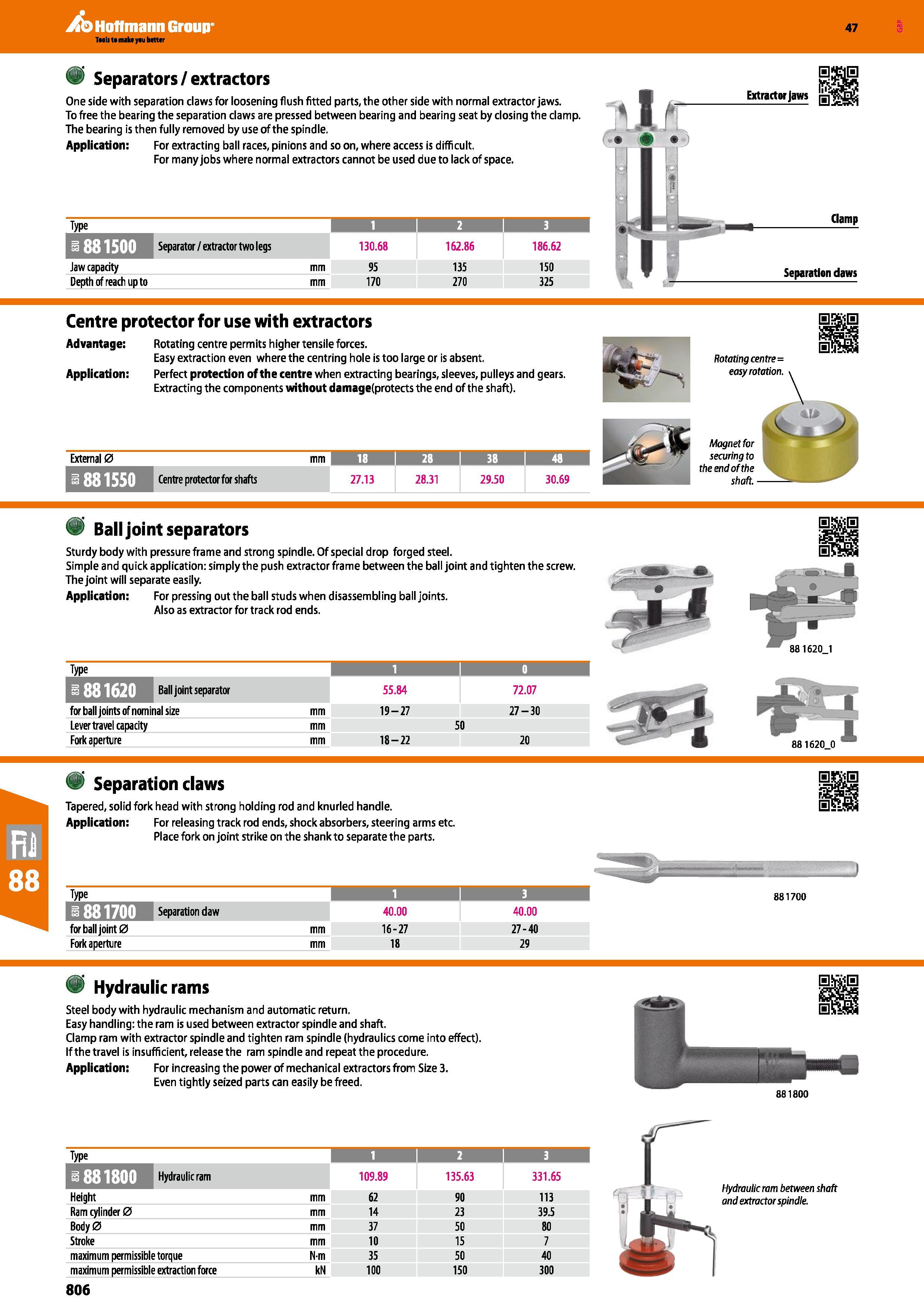

Hoffmann Group 47 Separators/extractors One side with separation claws for loosening flush fitted parts, the other side with normal extractor jaws. To free the bearing the separation claws are pressed between bearing and bearing seat by closing the clamp. The bearing is then fully removed by use of the spindle. Application: For extracting ball races, pinions and so on, where access is difficult. For many jobs where normal extractors cannot be used due to lack of space. I 0KL0 isis Extractor Jaws jjjjT Type 1 1 1 2 I 3 Separator/extractor two legs 130.68 162.86 186.62 Jaw capacity mm 95 135 150 Depth of reach up to mm 170 270 325 UL_ I" - Clamp 1 1 V Separation daws Centre protector for use with extractors Advantage: Rotating centre permits higher tensile forces. Easy extraction even where the centring hole is too large or is absent. Application: Perfect protection of the centre when extracting bearings, sleeves, pulleys and gears. Extracting the components without damage(protects the end of the shaft). External 0 mm IS 1 28 38 48 1 Centre protector for shafts 27.13 28.31 29.50 30.69 Ball joint separators Sturdy body with pressure frame and strong spindle. Of special drop forged steel. Simple and quick application: simply the push extractor frame between the ball joint and tighten the screw. The joint will separate easily. Application: For pressing out the ball studs when disassembling ball joints. Also as extractor for track rod ends. Type 1 1 0 1 Ball joint separator 55.84 72.07 for ball joints of nominal size mm 19-27 27-30 Lever travel capacity mm 50 Fork aperture mm 18-22 20 1620 0 Separation claws Tapered, solid fork head with strong holding rod and knurled handle. Application: For releasing track rod ends, shock absorbers, steering arms etc. Place fork on joint strike on the shank to separate the parts. Type 1 1 3 i88i7oo immm 40.00 40.00 for ball joint 0 mm 16-27 27-40 Fork aperture mm 18 29 881700 Hydraulic rams Steel body with hydraulic mechanism and automatic return. Easy handling: the ram is used between extractor spindle and shaft. Clamp ram with extractor spindle and tighten ram spindle (hydraulics come into effect). If the travel is insufficient, release the ram spindle and repeat the procedure. Application: For increasing the power of mechanical extractors from Size 3. Even tightly seized parts can easily be freed. 881800 Type 1 I 2 I 3 Hydraulic ram 109.89 135.63 331.65 Height mm 62 90 113 Ram cylinder 0 mm 14 23 39.5 Body0 mm 37 50 80 Stroke mm 10 15 7 maximum permissible torque N-m 35 50 40 maximum permissible extraction force kN 100 150 300 Hydraulic ram between shaft and extractor spindle. 806 Rotating centre= easy rotation. SIMs Magnet for securing to the end of the shaft.
