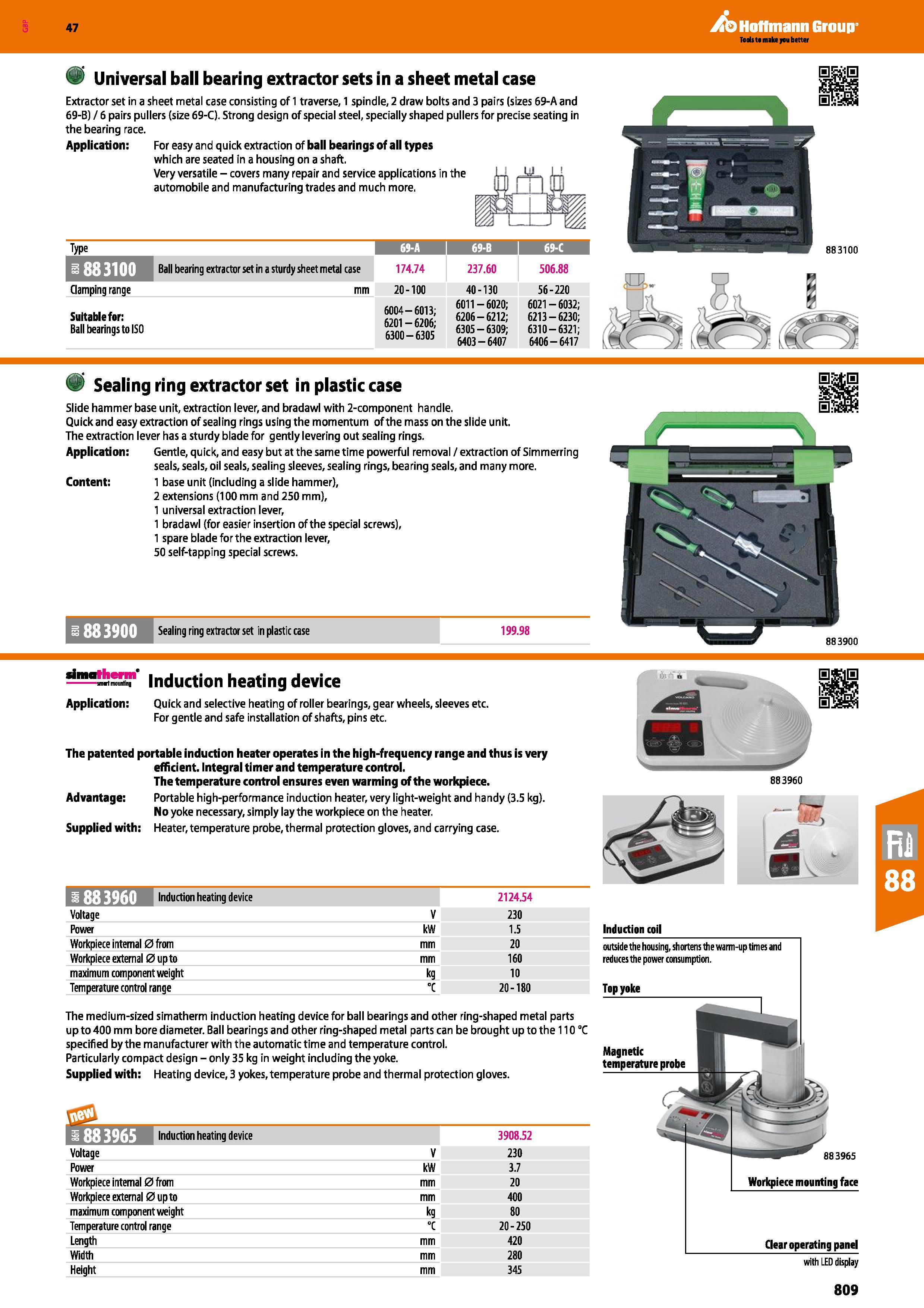

47 Universal ball bearing extractor sets in a sheet metal case Extractor set in a sheet metal case consisting of 1 traverse, 1 spindle, 2 draw bolts and 3 pairs (sizes 69-A and 69-B) / 6 pairs pullers (size 69-C). Strong design of special steel, specially shaped pullers for precise seating in the bearing race. Application: For easy and quick extraction of ball bearings of all types which are seated in a housing on a shaft. Very versatile - covers many repair and service applications in the jlj-j, W Aq Hoffmann Group automobile and manufacturing trades and much more. Type 69-A 69-B 69-C Ball bearing extractor set in a sturdy sheet metal case 174.74 237.60 506.88 Clamping range mm 20-100 40-130 56-220 Suitable for: Ball bearings to ISO 6004 - 6013; 6201-6206; 6300 - 6305 6011-6020; 6206 - 6212; 6305 - 6309; 6403 - 6407 6021-6032; 6213 - 6230; 6310 - 6321; 6406 - 6417 0 Sealing ring extractor set in plastic case Slide hammer base unit, extraction lever, and bradawl with 2-component handle. Quick and easy extraction of sealing rings using the momentum of the mass on the slide unit. The extraction lever has a sturdy blade for gently levering out sealing rings. Application: Gentle, quick, and easy but at the same time powerful removal / extraction of Simmerring seals, seals, oil seals, sealing sleeves, sealing rings, bearing seals, and many more. Content: 1 base unit (including a slide hammer), 2 extensions (100 mm and 250 mm), 1 universal extraction lever, 1 bradawl (for easier insertion of the special screws , 1 spare blade for the extraction lever, 50 self-tapping special screws. 1883900 Sealing ring extractor set in plastic case 199.98 simatherm Application: Induction heating device Quick and selective heating of roller bearings, gear wheels, sleeves etc. For gentle and safe installation of shafts, pins etc. The patented portable induction heater operates in the high-frequency range and thus is very efficient. Integral timer and temperature control. The temperature control ensures even warming of the workpiece. Advantage: Portable high-performance induction heater, very light-weight and handy (3.5 kg). No yoke necessary, simply lay the workpiece on the heater. Supplied with: Heater, temperature probe, thermal protection gloves, and carrying case. Induction heating device 2124.54 Voltage V 230 Power kW 1.5 Induction coil Workpiece internal 0 from mm 20 outside the housing, shortens the warm-up times and Workpiece external 0 upto mm 160 reduces the power consumption. maximum component weight kg 10 Temperature control range "C 20-180 Top yoke The medium-sized simatherm induction heating device for ball bearings and other ring-shaped metal parts up to 400 mm bore diameter. Ball bearings and other ring-shaped metal parts can be brought up to the 110 °C specified by the manufacturer with the automatic time and temperature control. Particularly compact design - only 35 kg in weight including the yoke. Supplied with: Heating device, 3 yokes, temperature probe and thermal protection gloves. Induction heating device 3908.52 Voltage V 230 Power kW 3.7 Workpiece internal 0 from mm 20 Workpiece external 0 upto mm 400 maximum component weight kg 80 Temperature control range °C 20-250 Length mm 420 Width mm 280 Height mm 345 883965 Workpiece mounting face Clear operating panel with LED display 809
