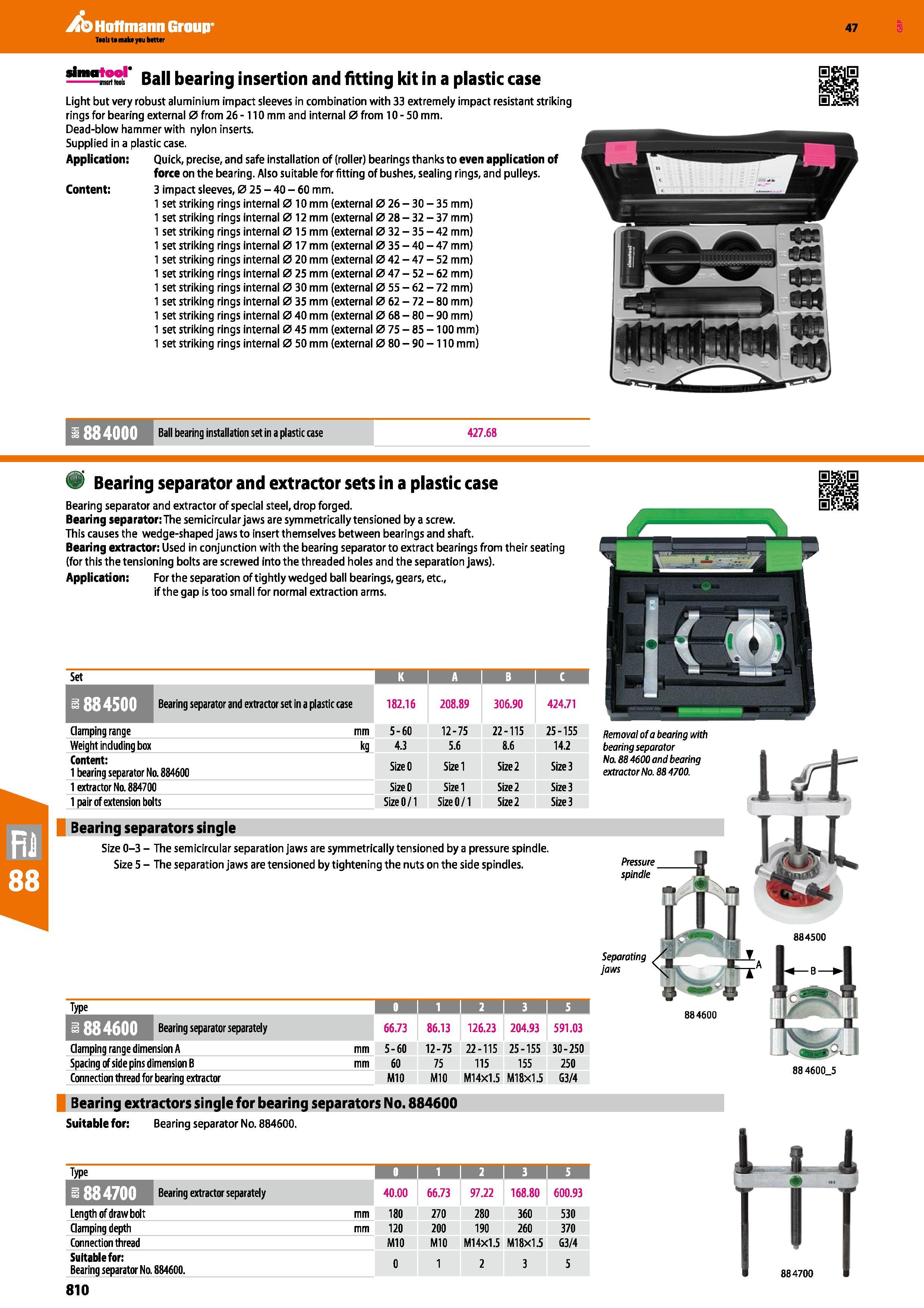

810 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.810

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 810 0810 ENG Lab2u

Hoffmann Group 47 Ball bearing insertion and fitting kit in a plastic case Light but very robust aluminium impact sleeves in combination with 33 extremely impact resistant striking rings for bearing external 0 from 26-110 mm and internal 0 from 10-50 mm. Dead-blow hammer with nylon inserts. Supplied in a plastic case. Application: Quick, precise, and safe installation of (roller) bearings thanks to even application of force on the bearing. Also suitable for fitting of bushes, sealing rings, and pulleys. Content: 3 impact sleeves, 0 25 - 40 - 60 mm. 1 set striking rings internal 0 10 mm (external 0 26 - 30 - 35 mm) 1 set striking rings internal 0 12 mm (external 0 28 - 32 - 37 mm) 1 set striking rings internal 0 15 mm (external 0 32 - 35 - 42 mm) 1 set striking rings internal 0 17 mm (external 0 35 - 40 - 47 mm) 1 set striking rings internal 0 20 mm (external 0 42 - 47 - 52 mm) 1 set striking rings internal 0 25 mm (external 0 47 - 52 - 62 mm) 1 set striking rings internal 0 30 mm (external 0 55 - 62 - 72 mm) 1 set striking rings internal 0 35 mm (external 0 62 - 72 - 80 mm) 1 set striking rings internal 0 40 mm (external 0 68 - 80 - 90 mm) 1 set striking rings internal 0 45 mm (external 0 75 - 85 -100 mm) 1 set striking rings internal 0 50 mm (external 0 80 - 90 - 110 mm) iTlTlfl Ball bearing installation set in a plastic case 427.68 Bearing separator and extractor sets in a plastic case Bearing separator and extractor of special steel, drop forged. Bearing separator: The semicircular jaws are symmetrically tensioned by a screw. This causes the wedge-shaped jaws to insert themselves between bearings and shaft. Bearing extractor: Used in conjunction with the bearing separator to extract bearings from their seating (for this the tensioning bolts are screwed into the threaded holes and the separation jaws). Application: For the separation of tightly wedged ball bearings, gears, etc., if the gap is too small for normal extraction arms. Set S IflKl iHB Bearing separator and extractor set in a plastic case 182.16 208.89 306.90 424.71 Clamping range mm 5-60 12-75 22-115 25-155 Weight including box kg 4.3 5.6 8.6 14.2 Content: 1 bearing separator Na 884600 SizeO Size 1 Size 2 Size 3 1 extractor Na 884700 SizeO Size 1 Size 2 Size 3 1 pair of extension bolts Size 0/1 SizeO/1 Size 2 Size 3 Bearing separators single Size 0-3 - The semicircular separation jaws are symmetrically tensioned by a pressure spindle. Size 5 - The separation jaws are tensioned by tightening the nuts on the side spindles. Type 1 1 2 1 3 1 5 i 884600 Bearing separator separately 66.73 86.13 126.23 204.93 591.03 Clamping range dimension A Spacing of side pins dimension B Connection thread for bearing extractor mm 5-60 60 M10 12-75 75 M10 22-115 25-155 115 155 M14X1.5 M18X1.5 30-250 250 G3/4 Bearing extractors single for bearing separators No. 884600 Suitable for: Bearing separator No. 884600. Type I 1 I 2 I 3 I 5 Bearing extractor separately 40.00 66.73 97.22 168.80 600.93 Length of draw bolt mm 180 270 280 360 530 Clamping depth mm 120 200 190 260 370 Connection thread M10 M10 M14X1.5 M18X1.5 G3/4 Suitable for: Rparinn cpnaratnr Nn 0 1 2 3 5 La-1 HI 884700 810 Removal of a bearing with bearing separator No. 88 4600 and bearing extractor No. 88 4700. Pressure _ spindle 884500 Separating jaws ing /9 M '1A 884600 88 4600_5
