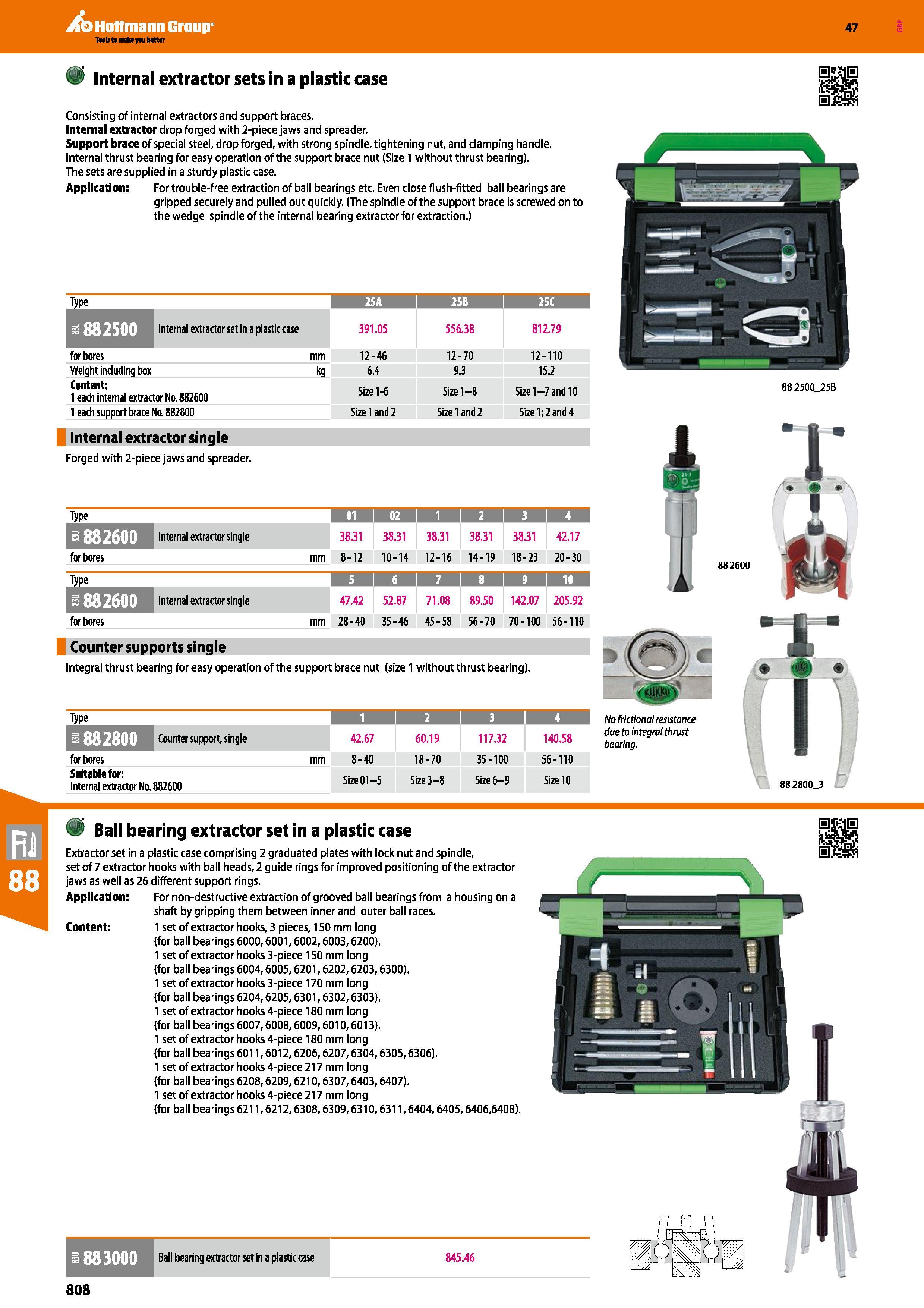

Hoffmann Group 47 Internal extractor sets in a plastic case Consisting of internal extractors and support braces. Internal extractor drop forged with 2-piece jaws and spreader. Support brace of special steel, drop forged, with strong spindle, tightening nut, and clamping handle. Internal thrust bearing for easy operation of the support brace nut (Size 1 without thrust bearing). The sets are supplied in a sturdy plastic case. Application: For trouble-free extraction of ball bearings etc. Even close flush-fitted ball bearings are gripped securely and pulled out quickly. (The spindle of the support brace is screwed on to the wedge spindle of the internal bearing extractor for extraction.) Type 1882500 Internal extractor set in a plastic case for bores Weight including box Content: 1 each internal extractor Na 882600 1 each support brace Na 882800 mm kg 25A I 25B 391.05 556.38 12-46 12-70 6.4 9.3 Size 1-6 Size 1-8 Size 1 and 2 Size 1 and 2 Internal extractor single 812.79 12-110 15.2 Size 1-7 and 10 Sizel; 2 and 4 882500_25B Forged with 2-piece jaws and spreader. Type Internal extractor single I 01 02 1 1 2 1 3 1 38.31 38.31 38.31 38.31 38.31 for bores mm 8-12 10-14 12-16 14-19 18-23 20-30 Type 5 6 7 8 9 10 a 882600 Internal extractor single 47.42 52.87 71.08 89.50 142.07 205.92 882600 Counter supports single Integral thrust bearing for easy operation of the support brace nut (size 1 without thrust bearing). Type i 1 2 1 3 4 No frictional resistance 'B Counter support, single 42.67 60.19 117.32 140.58 due to integral thrust bearing. for bores mm 8-40 18-70 35-100 56-110 Suitable for: Internal extractor No. 882600 Size 01-5 Size 3-8 Size 6-9 Size 10 Ball bearing extractor set in a plastic case Extractor set in a plastic case comprising 2 graduated plates with lock nut and spindle, set of 7 extractor hooks with ball heads, 2 guide rings for improved positioning of the extractor jaws as well as 26 different support rings. Application: For non-destructive extraction of grooved ball bearings from a housing on a shaft by gripping them between inner and outer ball races. Content: 1 setofextractorhooks,3pieces,150mmlong (for ball bearings 6000,6001,6002,6003,6200). 1 set of extractor hooks 3-piece 150 mm long (for ball bearings 6004,6005,6201,6202,6203,6300). 1 set of extractor hooks 3-piece 170 mm long (for ball bearings 6204,6205,6301,6302,6303). 1 set of extractor hooks 4-piece 180 mm long (for ball bearings 6007,6008,6009,6010,6013). 1 set of extractor hooks 4-piece 180 mm long (for ball bearings 6011,6012,6206,6207,6304,6305,6306). 1 set of extractor hooks 4-piece 217 mm long (for ball bearings 6208,6209,6210,6307,6403,6407). 1 set of extractor hooks 4-piece 217 mm long (for ball bearings 6211,6212,6308,6309,6310,6311,6404,6405,6406,6408). i 88 3000 Ball bearing extractor set in a plastic case 845.46 808
