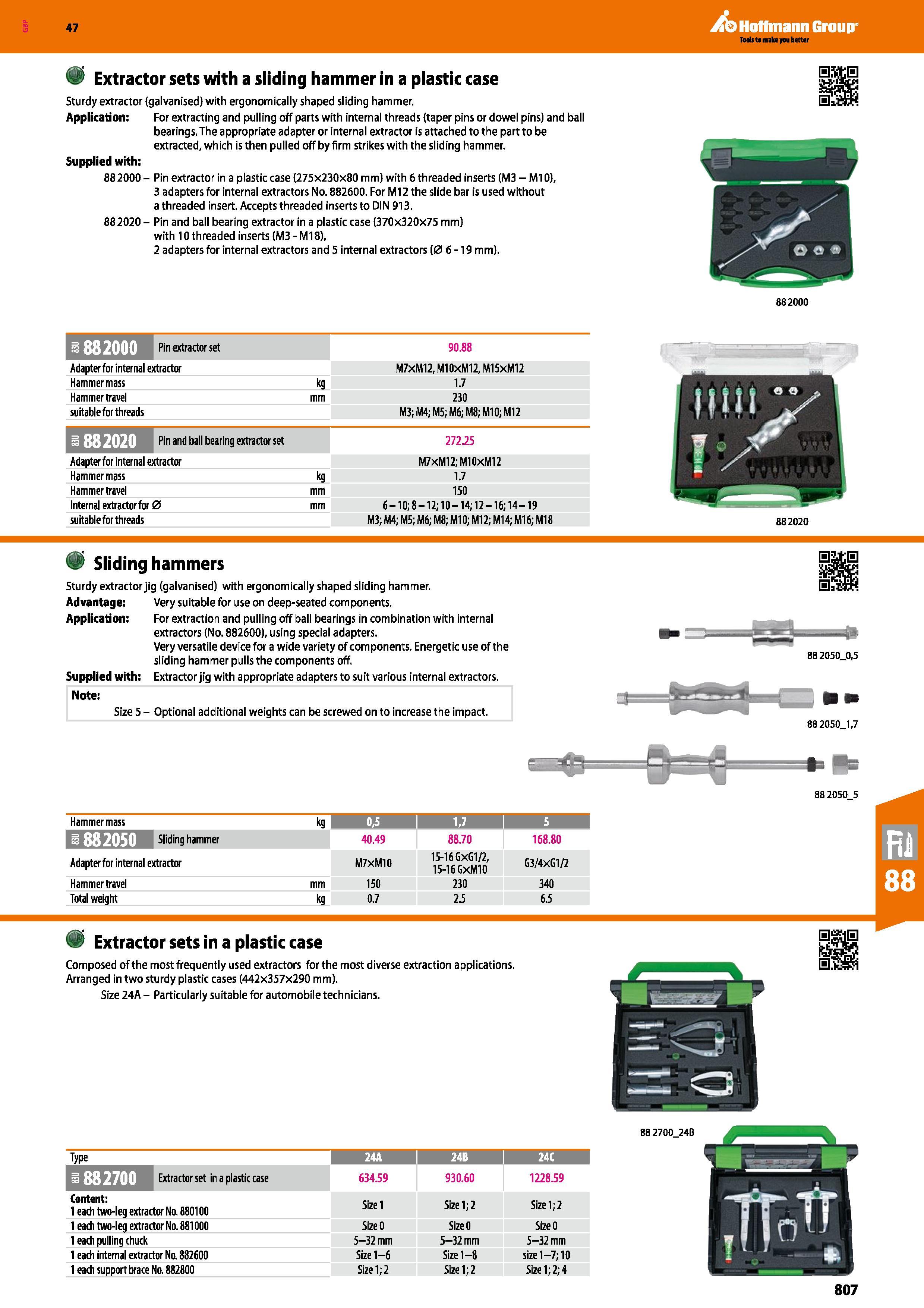

Hoffmann Group 47 Extractor sets with a sliding hammer in a plastic case Sturdy extractor (galvanised) with ergonomically shaped sliding hammer. Application: For extracting and pulling off parts with internal threads (taper pins or dowel pins) and ball bearings. The appropriate adapter or internal extractor is attached to the part to be extracted, which is then pulled off by firm strikes with the sliding hammer. Supplied with: 88 2000 - Pin extractor in a plastic case (275x230x80 mm) with 6 threaded inserts (M3 - Ml 0), 3 adapters for internal extractors No. 882600. For M12 the slide bar is used without a threaded insert. Accepts threaded inserts to DIN 913. 882020 - Pin and ball bearing extractor in a plastic case (370x320x75 mm) with 10 threaded inserts (M3 - M18), 2 adapters for internal extractors and 5 internal extractors (0 6 -19 mm). 882000 a 882000 90.88 Adapter for internal extractor M7xM12,M10xM12,M15xM12 Hammer mass kg 1.7 Hammer travel mm 230 suitable for threads M3; M4; M5; M6; M8; M10; M12 Nf Pin and ball bearing extractor set 272.25 Adapter for internal extractor M7xM12;M10xM12 Hammer mass kg 1.7 Hammer travel mm 150 Internal extractor for 0 mm 6 -10; 8 -12; 10 -14; 12 -16; 14-19 suitable for threads M3; M4; M5; M6; M8; M10; M12; M14; M16; M18 Vs 882020 Sliding hammers Sturdy extractor jig (galvanised) with ergonomically shaped sliding hammer. Advantage: Very suitable for use on deep-seated components. Application: For extraction and pulling off ball bearings in combination with internal extractors (No. 882600), using special adapters. Very versatile device for a wide variety of components. Energetic use of the sliding hammer pulls the components off. Supplied with: Extractor jig with appropriate adapters to suit various internal extractors. Note: Size 5 - Optional additional weights can be screwed on to increase the impact. 88 2050_0,5 3 2050_1,7 Hammer mass kg 0,5 V 1 5 1 I a 882050 Mm 40.49 88.70 168.80 Adapter for internal extractor M7XM10 15-16 GxG1/2, 15-16 GxM10 G3/4XG1/2 Hammer travel mm 150 230 340 Total weight kg 0.7 2.5 6.5 Extractor sets in a plastic case Composed of the most frequently used extractors for the most diverse extraction applications. Arranged in two sturdy plastic cases (442x357x290 mm). Size 24A - Particularly suitable for automobile technicians. 88 2700_24B Type 24A I 24B 24C j Extractor set in a plastic case 634.59 930.60 1228.59 Content: 1 each two-leg extractor Na 880100 Size 1 Size 1; 2 Size 1; 2 1 each two-leg extractor Na 881000 SizeO SizeO SizeO 1 each pulling chuck 5-32 mm 5-32 mm 5-32 mm 1 each internal extractor Na 882600 Size 1-6 Size 1-8 size 1-7; 10 1 each support brace Na 882800 Size 1; 2 Size 1; 2 Size 1; 2; 4 iTTotr 807
