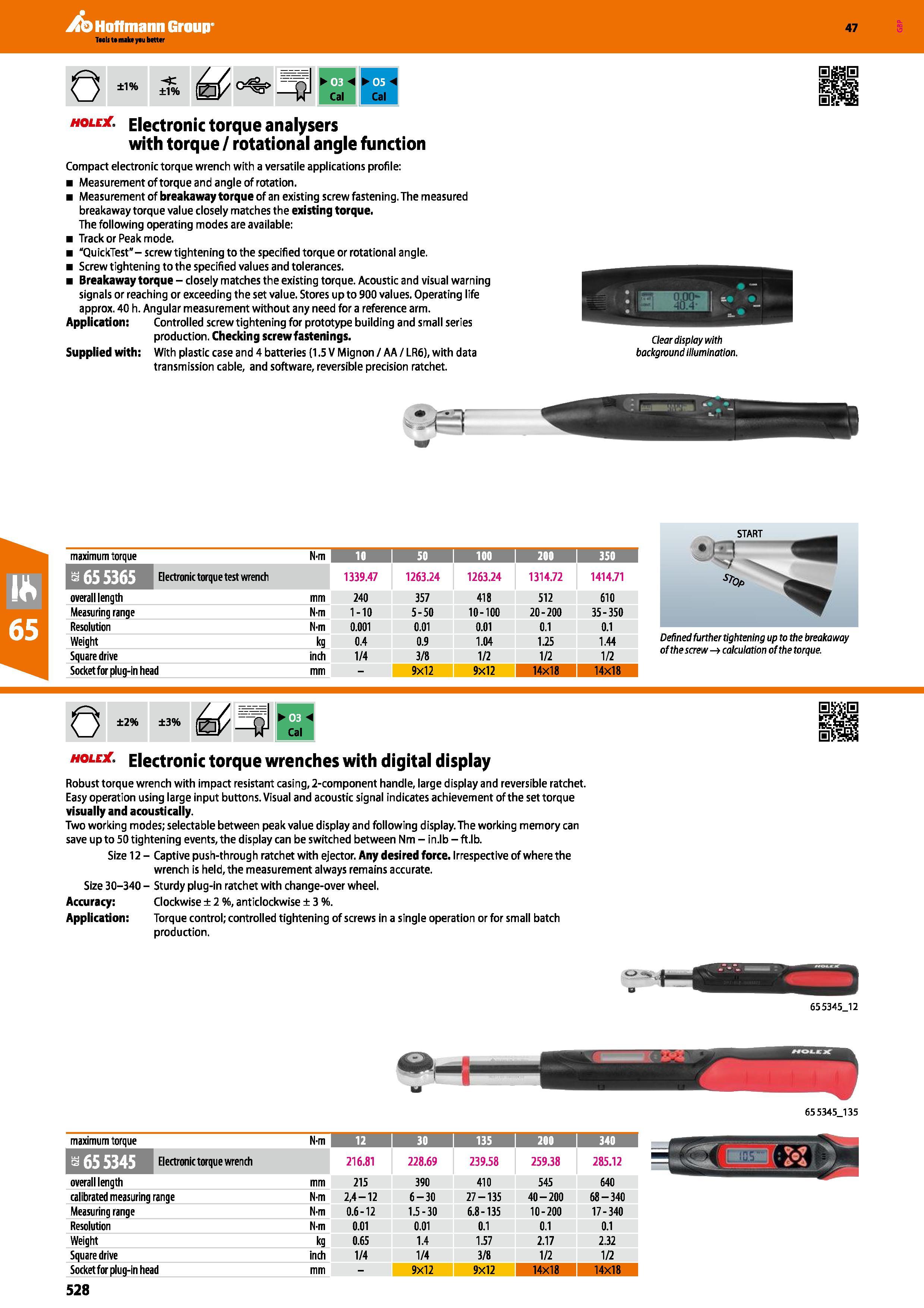

Hoffmann Group 47 0 ±1% Cal J Cal holex. Electronic torque analysers with torque / rotational angle function Compact electronic torque wrench with a versatile applications profile: Measurement of torque and angle of rotation. Measurement of breakaway torque of an existing screw fastening. The measured breakaway torque value closely matches the existing torque. The following operating modes are available: Track or Peak mode. “QuickTest”- screw tightening to the specified torque or rotational angle. Screw tightening to the specified values and tolerances. Breakaway torque - closely matches the existing torque. Acoustic and visual warning signals or reaching or exceeding the set value. Stores up to 900 values. Operating life approx. 40 h. Angular measurement without any need for a reference arm. Application: Controlled screw tightening for prototype building and small series production. Checking screw fastenings. Supplied with: With plastic case and 4 batteries (1.5 V Mignon / AA / LR6), with data transmission cable, and software, reversible precision ratchet. Clear display with background illumination. maximum torque N-m 10 1 50 100 200 350 I Igf Vt'tf iVM Electronic torque test wrench 1339.47 1263.24 1263.24 1314.72 1414.71 overall length mm 240 357 418 512 610 Measuring range N-m 1-10 5-50 10-100 20-200 35-350 Resolution N-m 0.001 0.01 0.01 0.1 0.1 Weight kg 0.4 0.9 1.04 1.25 1.44 Square drive inch 1/4 3/8 1/2 1/2 1/2 Socket for plug-in head mm - 9x12 9x12 14x18 14x18 Defined further tightening up to the breakaway of the screw > calculation of the torque. 0 ±2% ±3% hole . Electronic torque wrenches with digital display Robust torque wrench with impact resistant casing, 2-component handle, large display and reversible ratchet. Easy operation using large input buttons. Visual and acoustic signal indicates achievement of the set torque visually and acoustically. Two working modes; selectable between peak value display and following display. The working memory can save up to 50 tightening events, the display can be switched between Nm - in.lb ft.lb. Size 12 - Captive push-through ratchet with ejector. Any desired force. Irrespective of where the wrench is held, the measurement always remains accurate. Size 30-340 - Sturdy plug-in ratchet with change-over wheel. Accuracy: Clockwise ±2%, anticlockwise ± 3 %. Application: Torque control; controlled tightening of screws in a single operation or for small batch production. 655345_12 655345 135 maximum torque N-m 12 i 30 1 135 i 200 1 340 1 Electronic torque wrench 216.81 228.69 239.58 259.38 285.12 overall length mm 215 390 410 545 640 calibrated measuring range N-m 2,4-12 6-30 27-135 40 - 200 68 - 340 Measuring range N-m 0.6-12 1.5-30 6.8-135 10-200 17-340 Resolution N-m 0.01 0.01 0.1 0.1 0.1 Weight kg 0.65 1.4 1.57 2.17 2.32 Square drive inch 1/4 1/4 3/8 1/2 1/2 Socket for plug-in head mm - 9x12 9X12 14x18 14x18 528
