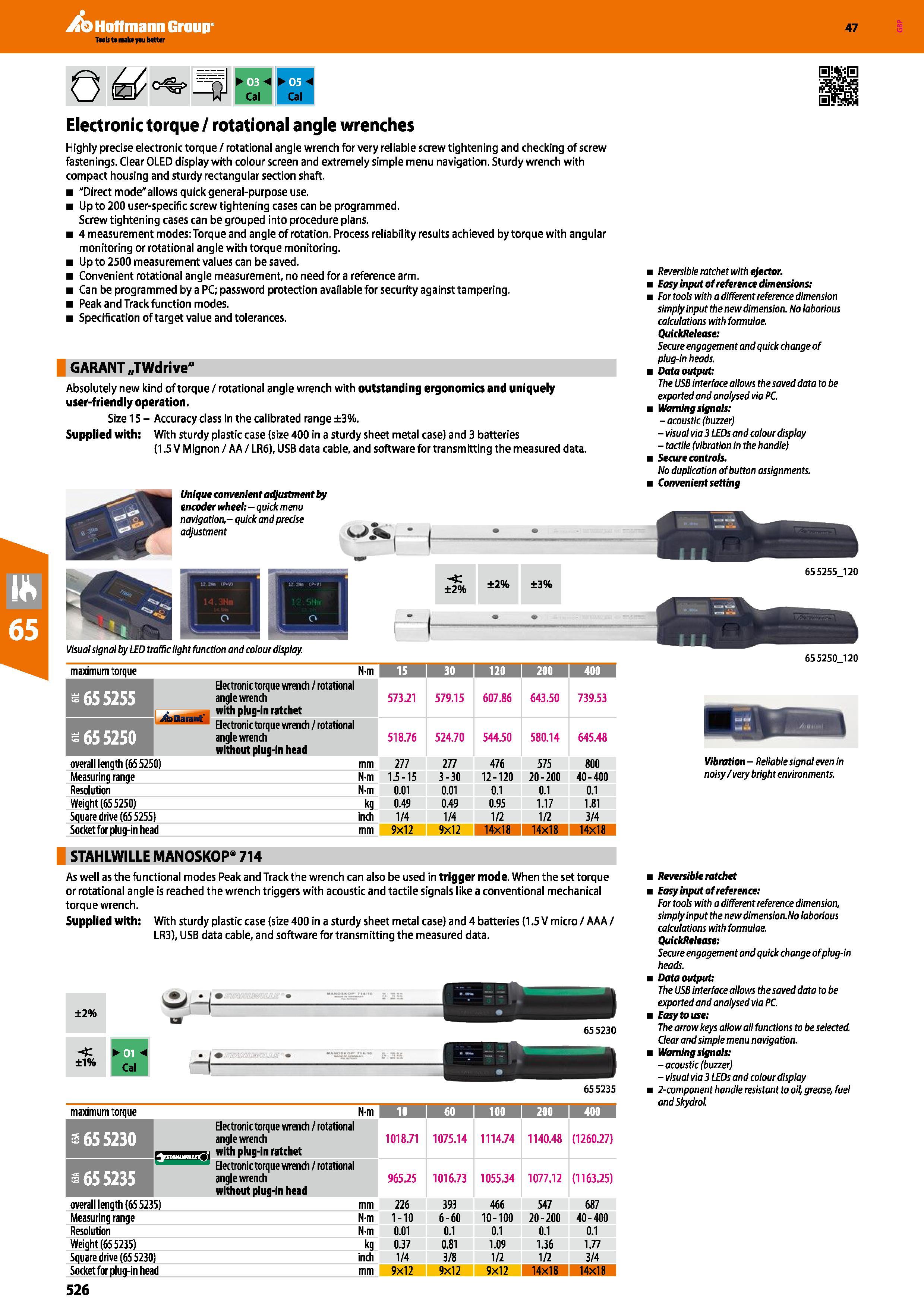

Hoffmann Group 47 Cal Electronic torque / rotational angle wrenches Highly precise electronic torque / rotational angle wrench for very reliable screw tightening and checking of screw fastenings. Clear OLED display with colour screen and extremely simple menu navigation. Sturdy wrench with compact housing and sturdy rectangular section shaft. “Direct mode”allows quick general-purpose use. Up to 200 user-specific screw tightening cases can be programmed. Screw tightening cases can be grouped into procedure plans. 4 measurement modes: Torque and angle of rotation. Process reliability results achieved by torque with angular monitoring or rotational angle with torque monitoring. Up to 2500 measurement values can be saved. Convenient rotational angle measurement, no need for a reference arm. Can be programmed by a PC; password protection available for security against tampering. Peak and Track function modes. Specification of target value and tolerances. GARANT „TWdrive" Absolutely new kind of torque / rotational angle wrench with outstanding ergonomics and uniquely user-friendly operation. Size 15 - Accuracy class in the calibrated range ±3%. Supplied with: With sturdy plastic case (size 400 in a sturdy sheet metal case) and 3 batteries (1.5 V Mignon / AA / LR6), USB data cable, and software for transmitting the measured data. Unique convenient adjustment by encoder wheel: - quick menu navigation,-quick and precise adjustment t, -< ±2% ±2% ±3% Visual signal by LED traffic light function and colour display. maximum torque N-m 15 S 30 1 120 1 200 I 400 I - 65 5255 Electronic torque wrench / rotational angle wrench j . with plug-in ratchet 573.21 579.15 607.86 643.50 739.53 e 65 5250 Electronic torque wrench / rotational angle wrench without plug-in head 518.76 524.70 544.50 580.14 645.48 overall length (65 5250) mm 277 277 476 575 800 Measuring range N-m 1.5-15 3-30 12-120 20-200 40 - 400 Resolution N-m 0.01 0.01 0.1 0.1 0.1 Weight (65 5250) kg 0.49 0.49 0.95 1.17 1.81 Square drive (65 5255) inch 1/4 1/4 1/2 1/2 3/4 Socket for plug-in head mm 9x12 9x12 14x18 14x18 14x18 STAHLWILLE MANOSKOP8 714 As well as the functional modes Peak and Track the wrench can also be used in trigger mode. When the set torque or rotational angle is reached the wrench triggers with acoustic and tactile signals like a conventional mechanical torque wrench. Supplied with: With sturdy plastic case (size 400 in a sturdy sheet metal case) and 4 batteries (1.5 V micro / AAA / LR3), USB data cable, and software for transmitting the measured data. ±2% ±1% ri CT 655235 maximum torque N-m 10 I 0 I 100 I 200 a 65 5230 Electronic torque wrench / rotational angle wrench 1018.71 1075.14 1114.74 1140.48 (1260.27) 655235 Electronic torque wrench/rotational angle wrench without plug-in head 965.25 1016.73 1055.34 1077.12 (1163.25) overall length (65 5235) mm 226 393 466 547 687 Measuring range N-m 1-10 6-60 10-100 20-200 40 - 400 Resolution N-m 0.01 0.1 0.1 0.1 0.1 Weight (65 5235) kg 0.37 0.81 1.09 1.36 1.77 Square drive (65 5230) inch 1/4 3/8 1/2 1/2 3/4 Socket for plug-in head mm 9x12 9x12 9x12 14x18 14x18 i Reversible ratchet with ejector. i Easy input of reference dimensions: i For tools with a different reference dimension simply input the new dimension. No laborious calculations with formulae QuickRelease: Secure engagement and quick change of plug-in heads. i Data output: The USB interface allows the saved data to be exported and analysed via PC i Warning signals: - acoustic (buzzer) - visual via 3 LEDs and colour display - tactile (vibration in the handle) i Secure controls. No duplication of button assignments. i Convenient setting 65 5255_120 65 5250_120 Vibration - Reliable signal even in noisy/very bright environments. i Reversible ratchet i Easy input of reference: For tools with a different reference dimension, simply input the new dimension.No laborious calculations with formulae. QuickRelease: Secure engagement and quick change of plug-in heads. i Data output: The USB interface allows the saved data to be exported and analysed via PC. i Easy to use: The arrow keys allow all functions to be selected Clear and simple menu navigation. i Wtiming signals: -acoustic (buzzer) - visual via 3 LEDs and colour display i 2-component handle resistant to oil, grease, fuel andSkydrol. 526
