527 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.527

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 527 0527 ENG Lab2u

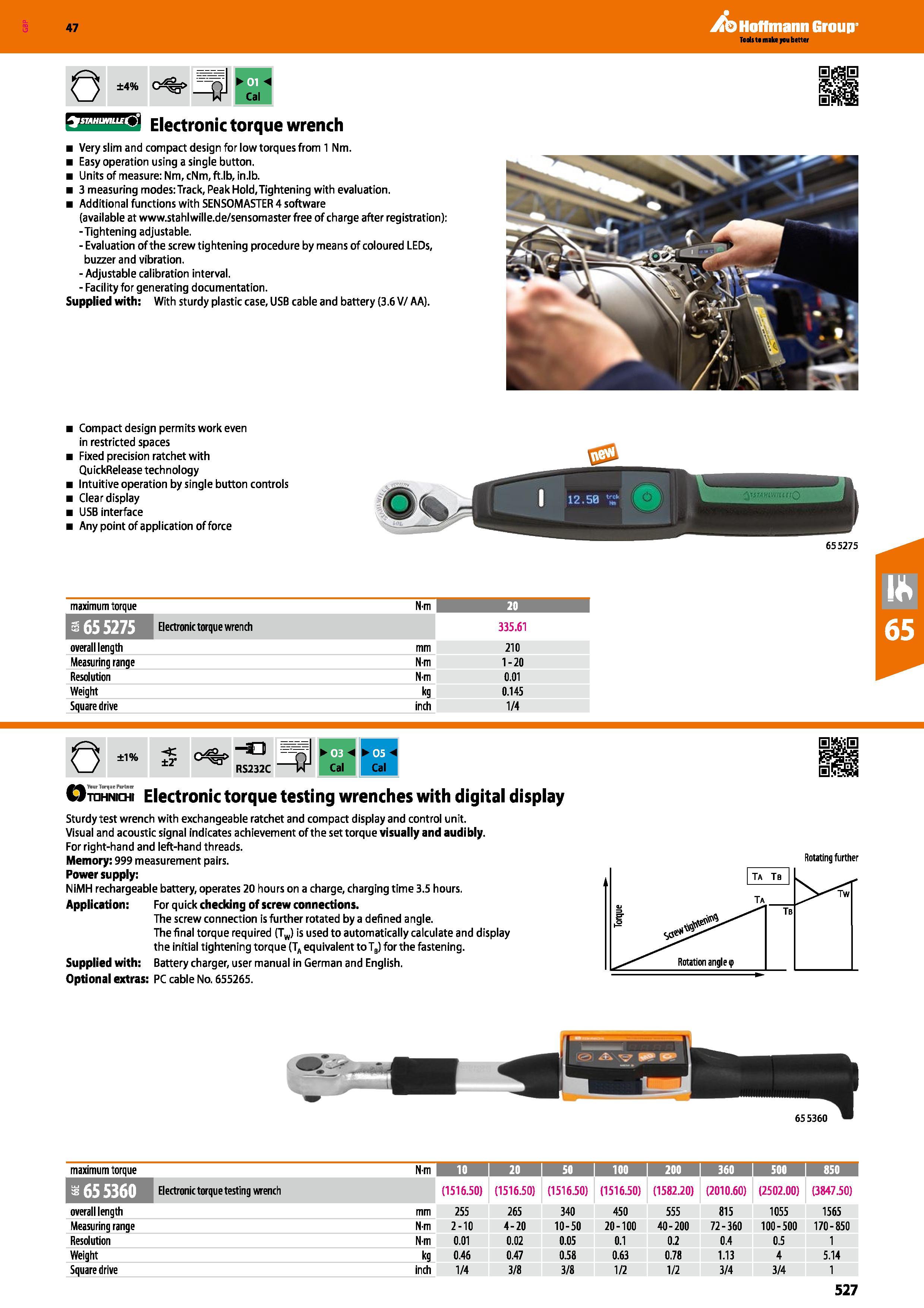

Hoffmann Group 47 0 ±4% Cal STAHUMLLE ') Electronic torque wrench Very slim and compact design for low torques from 1 Nm. Easy operation using a single button. Units of measure: Nm, cNm, ft.lb, in.lb. 3 measuring modes: Track, Peak Hold,Tightening with evaluation. Additional functions with SENSOMASTER 4 software (available at www.stahlwille.de/sensomaster free of charge after registration): -Tightening adjustable. -Evaluation of the screw tightening procedure by means of coloured LEDs, buzzer and vibration. - Adjustable calibration interval. - Facility for generating documentation. Supplied with: With sturdy plastic case, USB cable and battery (3.6 V/ AA). Compact design permits work even in restricted spaces Fixed precision ratchet with QuickRelease technology Intuitive operation by single button controls Clear display USB interface Any point of application of force maximum torque N-m 20 Electronic torque wrench 335.61 overall length mm 210 Measuring range N-m 1-20 Resolution N-m 0.01 Weight kg 0.145 Square drive inch 1/4 0 ±i% ±r -SD RS232C Cal J Cal riDHNICHI Electronic torque testing wrenches with digital display Sturdy test wrench with exchangeable ratchet and compact display and control unit. Visual and acoustic signal indicates achievement of the set torque visually and audibly. For right-hand and left-hand threads. Memory: 999 measurement pairs. Power supply: NiMH rechargeable battery, operates 20 hours on a charge, charging time 3.5 hours. Application: For quick checking of screw connections. The screw connection is further rotated by a defined angle. The final torque required (Tw) is used to automatically calculate and display the initial tightening torque (TA equivalent toTa) for the fastening. Supplied with: Battery charger, user manual in German and English. Optional extras: PC cable No. 655265. Rotating further 65 5360 maximum torque N-m 10 i 20 i 50 j 100 IKS 360 iKiIHBlilHS Electronic torque testing wrench (1516.50) (1516.50) (1516.50) (1516.50) (1582.20) (2010.60) (2502.00) (3847.50) overall length mm 255 265 340 450 555 815 1055 1565 Measuring range N-m 2-10 4-20 10-50 20-100 40-200 72-360 100-500 170-850 Resolution N-m 0.01 0.02 0.05 0.1 0.2 0.4 0.5 1 Weight kg 0.46 0.47 0.58 0.63 0.78 1.13 4 5.14 Square drive inch 1/4 3/8 3/8 1/2 1/2 3/4 3/4 1 527 655275
