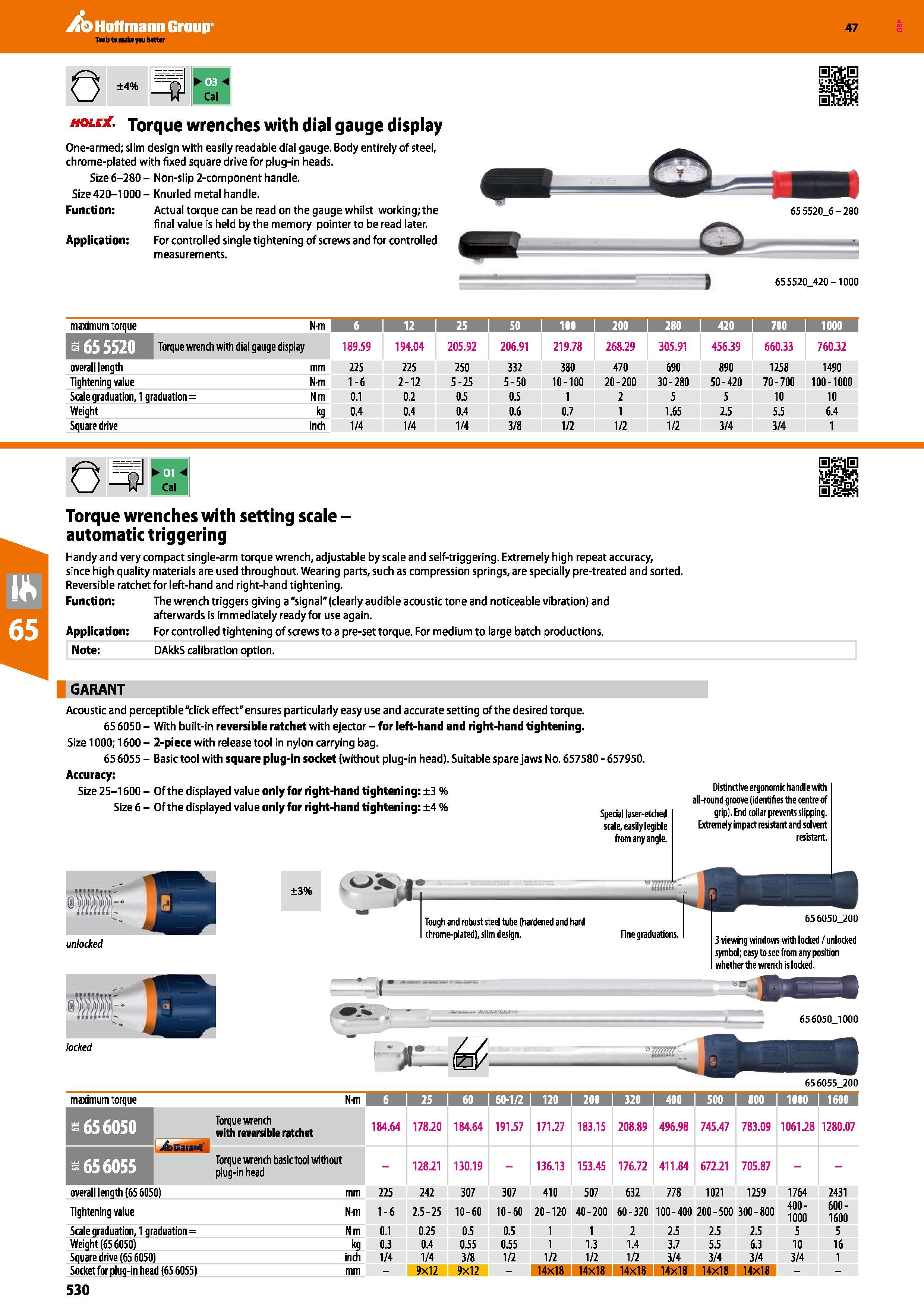

Hoffmann Group 47 0 ±4% t v holljC Torque wrenches with dial gauge display One-armed; slim design with easily readable dial gauge. Body entirely of steel, chrome-plated with fixed square drive for plug-in heads. Size 6-280 - Non-slip 2-component handle. Size 420-1000- Knurled metal handle. Function: Actual torque can be read on the gauge whilst working; the final value is held by the memory pointer to be read later. Application: For controlled single tightening of screws and for controlled measurements. 655520_420 -1000 maximum torque N-m 6 I 12 1 25 i 50 I 100 I 200 Hill 420 IKH 1000 I gVtTCVuiV Torque wrench with dial gauge display 189.59 194.04 205.92 206.91 219.78 268.29 305.91 456.39 660.33 760.32 overall length mm 225 225 250 332 380 470 690 890 1258 1490 Tightening value N-m 1-6 2-12 5-25 5-50 10-100 20-200 30-280 50 - 420 70-700 100-1000 Scale graduation, 1 graduation = Nm 0.1 0.2 0.5 0.5 1 2 5 5 10 10 Weight kg 0.4 0.4 0.4 0.6 0.7 1 1.65 2.5 5.5 6.4 Square drive inch 1/4 1/4 1/4 3/8 1/2 1/2 1/2 3/4 3/4 1 Torque wrenches with setting scale -automatic triggering Handy and very compact single-arm torque wrench, adjustable by scale and self-triggering. Extremely high repeat accuracy, since high quality materials are used throughout. Wearing parts, such as compression springs, are specially pre-treated and sorted. Reversible ratchet for left-hand and right-hand tightening. Function: The wrench triggers giving a "signal" (clearly audible acoustic tone and noticeable vibration) and afterwards is immediately ready for use again. Application: For controlled tightening of screws to a pre-set torque. For medium to large batch productions. Note: DAkkS calibration option. GARANT Acoustic and perceptible "click effect"ensures particularly easy use and accurate setting of the desired torque. 65 6050 - With built-in reversible ratchet with ejector - for left-hand and right-hand tightening. Size 1000; 1600 - 2-piece with release tool in nylon carrying bag. 65 6055 - Basic tool with square plug-in socket (without plug-in head). Suitable spare jaws No. 657580 - 657950. Accuracy: Size 25-1600 - Of the displayed value only for right-hand tightening: ±3 % Size 6 - Of the displayed value only for right-hand tightening: ±4 % Special laser-etched scale, easily legible from any angle. Distinctive ergonomic handle with all-round groove (identifies the centre of grip). End collar prevents slipping. Extremely impact resistant and solvent resistant. 9 unlocked 1 ±3% it Tough and robust steel tube hardened and hard chrome-plated), slim design. Fine graduations. -r 65 6050_200 3 viewing windows with locked / unlocked symbol; easy to see from any position whether the wrench is locked. 65 6050_1000 locked jc (6j/. sm- 656055 200 maximum torque N-m 6 25 I M I 60-1/2 I 120 I 200 1 320 500 1000 1 1600 1 Torque wrench with reversible ratchet J&Gaiant Torque wrench basic tool without plug-in head 184.64 178.20 184.64 191.57 171.27 183.15 208.89 496.98 745.47 783.09 1061.28 1280.07 -656055 - 128.21 130.19 - 136.13 153.45 176.72 411.84 672.21 705.87 overall length (65 6050) mm 225 242 307 307 410 507 632 778 1021 1259 1764 2431 Tightening value N-m 1-6 2.5-25 10-60 10-60 20-120 40-200 60-320 100-400 200-500 300 - 800 400- 1000 600- 1600 Scale graduation, 1 graduation = N m 0.1 0.25 0.5 0.5 1 1 2 2.5 2.5 2.5 5 5 Weight (65 6050) kg 0.3 0.4 0.55 0.55 1 1.3 1.4 3.7 5.5 6.3 10 16 Square drive (65 6050) inch 1/4 1/4 3/8 1/2 1/2 1/2 1/2 3/4 3/4 3/4 3/4 1 Socket for plug-in head (65 6055) mm - 9x12 9x12 - 14x18 14x18 14x18 14x18 14x18 14x18 530
