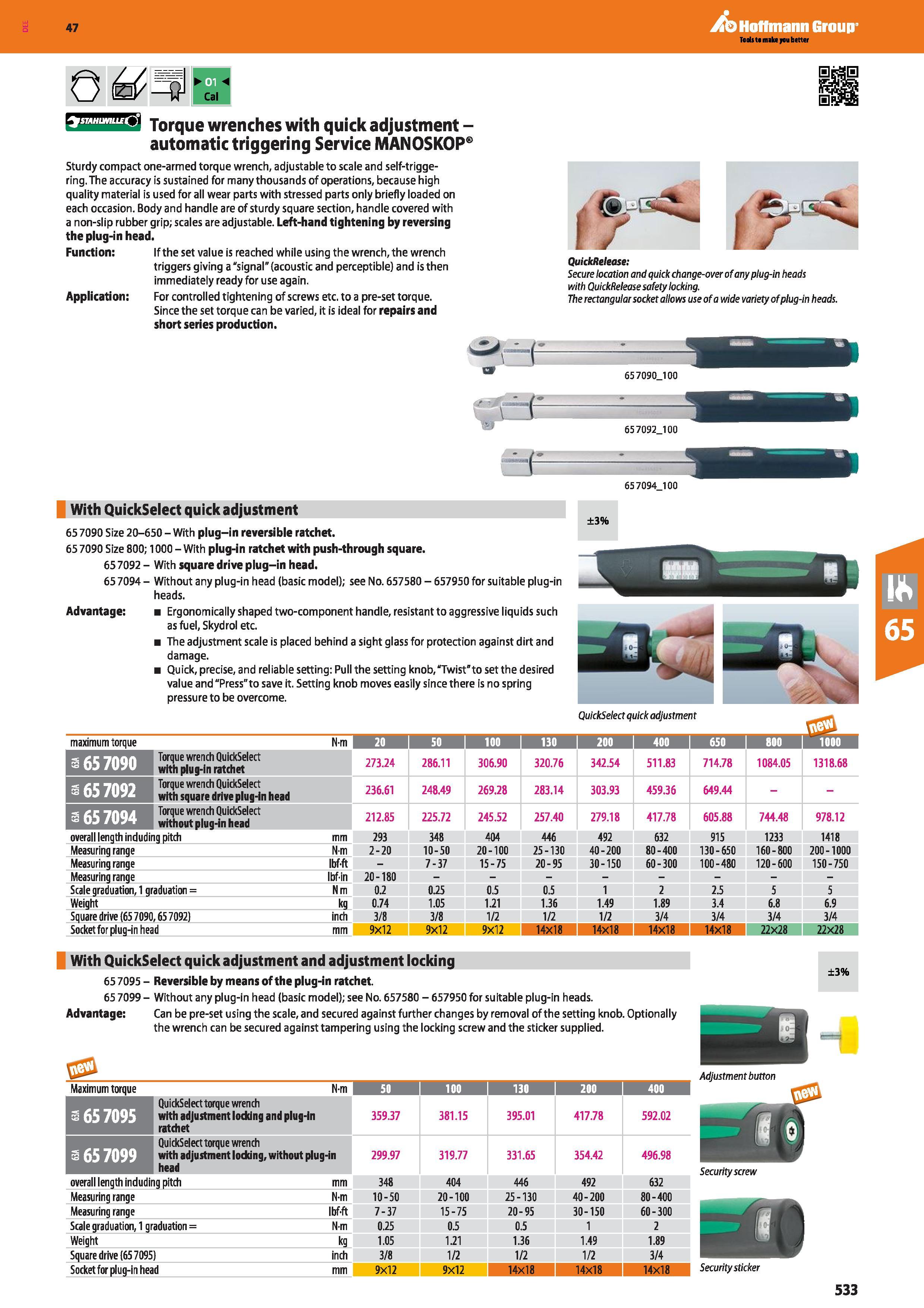

Hoffmann Group 47 STAHUMLLE ') Torque wrenches with quick adjustment -automatic triggering Service MANOSKOP Sturdy compact one-armed torque wrench, adjustable to scale and self-trigge-ring.The accuracy is sustained for many thousands of operations, because high quality material is used for all wear parts with stressed parts only briefly loaded on each occasion. Body and handle are of sturdy square section, handle covered with a non-slip rubber grip; scales are adjustable. Left-hand tightening by reversing the plug-in head. Function: If the set value is reached while using the wrench, the wrench triggers giving a "signal" (acoustic and perceptible) and is then immediately ready for use again. Application: For controlled tightening of screws etc. to a pre-set torque. Since the set torque can be varied, it is ideal for repairs and short series production. QuickRelease: Secure location and quick change-over of any plug-in heads with QuickRelease safety locking. The rectangular socket allows use of a wide variety of plug-in heads. 657090_100 <±f w 657092_100 =f 65 7094 100 With QuickSelect quick adjustment 65 7090 Size 20-650 - With plug-in reversible ratchet. 65 7090 Size 800; 1000 - With plug-in ratchet with push-through square. 65 7092 - With square drive plug-in head. 65 7094 - Without any plug-in head (basic model); see No. 657580 - 657950 for suitable plug-in heads. Advantage: Ergonomically shaped two-component handle, resistant to aggressive liquids such as fuel, Skydrol etc. The adjustment scale is placed behind a sight glass for protection against dirt and damage. Quick, precise, and reliable setting: Pull the setting knob,"Twist"to set the desired value and "Press" to save it. Setting knob moves easily since there is no spring pressure to be overcome. ±3% QuickSelect quick adjustmen f maximum torque N-m m Torque wrench QuickSelect BlliZuij with piua-in ratchet 273.24 286.11 306.90 320.76 342.54 511.83 714.78 1084.05 1318.68 Torque wrench QuickSelect with sauare drive Dluo-in head 236.61 248.49 269.28 283.14 303.93 459.36 649.44 Torque wrench QuickSelect mm £MLzJiA without Dluo-in head 212.85 225.72 245.52 257.40 279.18 417.78 605.88 744.48 978.12 overall length induding pitch mm 293 348 404 446 492 632 915 1233 1418 Measuring range N-m 2-20 10-50 20-100 25-130 40-200 80-400 130-650 160 - 800 200-1000 Measuring range Ibf-ft 7-37 15-75 20-95 30-150 60-300 100-480 120 - 600 150-750 Measuring range Ibfin 20-180 Scale graduation, 1 graduation = Nm 0.2 0.25 0.5 0.5 1 2 2.5 5 5 Weight kg 0.74 1.05 1.21 1.36 1.49 1.89 3.4 6.8 6.9 Square drive (65 7090,65 7092) inch 3/8 3/8 1/2 1/2 1/2 3/4 3/4 3/4 3/4 Socket for plug-in head mm 9x12 9X12 9X12 14X18 14X18 14X18 14X18 22X28 22X28 With QuickSelect quick adjustment and adjustment locking 65 7095 - Reversible by means of the plug-in ratchet. 65 7099 - Without any plug-in head (basic model); see No. 657580 - 657950 for suitable plug-in heads. Advantage: Can be pre-set using the scale, and secured against further changes by removal of the setting knob. Optionally the wrench can be secured against tampering using the locking screw and the sticker supplied. Maximum torque N-m 50 100 130 200 400 5 65 7095 QuickSelect torque wrench with adjustment locking and plug-in ratchet 359.37 381.15 395.01 417.78 592.02 3 65 7099 QuickSelect torque wrench with adjustment loddng, without plug-in head 299.97 319.77 331.65 354.42 496.98 overall length induding pitch mm 348 404 446 492 632 Measuring range N-m 10-50 20-100 25-130 40-200 80-400 Measuring range Ibf-ft 7-37 15-75 20-95 30-150 60-300 Scale graduation, 1 graduation = N-m 0.25 0.5 0.5 1 2 Weight kg 1.05 1.21 1.36 1.49 1.89 Square drive (65 7095) inch 3/8 1/2 1/2 1/2 3/4 Socket for plug-in head mm 9x12 9X12 14x18 14x18 14x18 ±3% Securityscrew Security sticker 533
