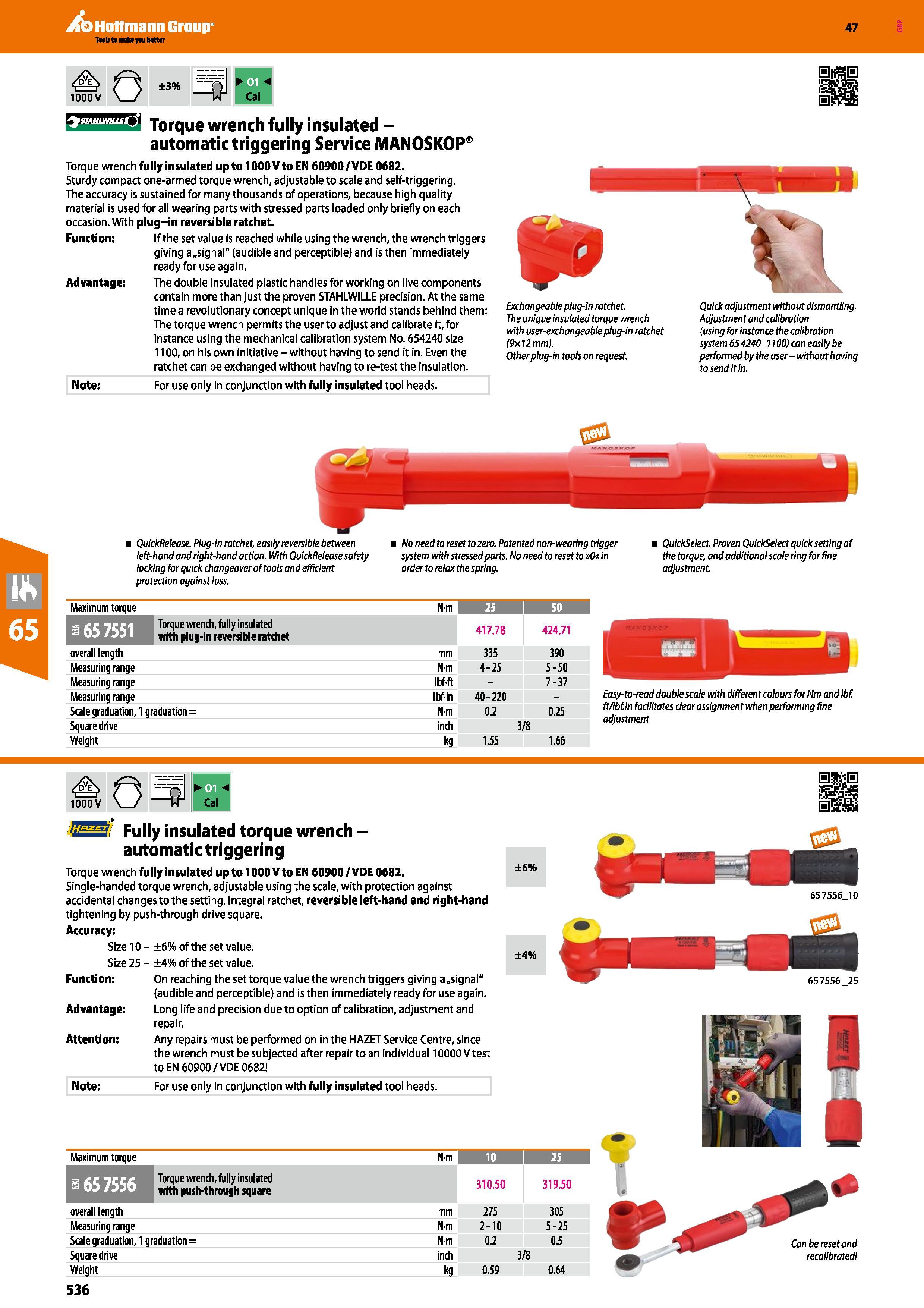

Hoffmann Group 47 WOOV 0 ±3% -I1 R -4 Cal STAHUMLLE ') Torque wrench fully insulated -automatic triggering Service MANOSKOP Torque wrench fully insulated up to 1000V to EN 60900/VDE 0682. Sturdy compact one-armed torque wrench, adjustable to scale and self-triggering. The accuracy is sustained for many thousands of operations, because high quality material is used for all wearing parts with stressed parts loaded only briefly on each occasion. With plug-in reversible ratchet. Function: If the set value is reached while using the wrench, the wrench triggers giving a„signal" (audible and perceptible) and is then immediately ready for use again. Advantage: The double insulated plastic handles for working on live components contain more than just the proven STAHLWILLE precision. At the same time a revolutionary concept unique in the world stands behind them: The torque wrench permits the user to adjust and calibrate it, for instance using the mechanical calibration system No. 654240 size 1100, on his own initiative - without having to send it in. Even the ratchet can be exchanged without having to re-test the insulation. Exchangeable plug-in ratchet. The unique insulated torque wrench with user-exchangeable plug-in ratchet 19x12 mm). Other plug-in tools on request Quick adjustment without dismantling. Adjustment and calibration Iusing for instance the calibration system fiJ4240_ 1100) can easily be performed by the user-without having to send it in. Note: For use only in conjunction with fully insulated tool heads. i QuickRelease. Plug-in ratchet, easily reversible between left-hand and right-hand action. With QuickRelease safety locking for quick changeover of tools and efficient protection against loss. No need to reset to zero. Patented non-wearing trigger system with stressed parts. No need to reset to 0 in order to relax the spring. QuickSelect. Proven QuickSelect quick setting of the torque, and additional scale ring for fine adjustment. Maximum torque N-m 25 50 Torque wrench, fully insulated with plug-in reversible ratchet 417.78 424.71 overall length mm 335 390 Measuring range N-m 4-25 5-50 Measuring range Ibf-ft - 7-37 Measuring range Ibf-in 40-220 - Scale graduation, 1 graduation = N-m 0.2 0.25 Square drive inch 3/8 Weight kg 1.55 1.66 Easy-to-read double scale with different colours for Nm and Ibf. ft/lbfin facilitates clear assignment when performing fine adjustment / E\ 1000V 'i£is±n Fully insulated torque wrench -automatic triggering Torque wrench fully insulated up to 1000 V to EN 60900/VDE 0682. Single-handed torque wrench, adjustable using the scale, with protection against accidental changes to the setting. Integral ratchet, reversible left-hand and right-hand tightening by push-through drive square. Accuracy: Size 10 - ±6% of the set value. Size 25 - ±4% of the set value. Function: On reaching the set torque value the wrench triggers giving a„signal“ (audible and perceptible) and is then immediately ready for use again. Advantage: Long life and precision due to option of calibration, adjustment and repair. Attention: Any repairs must be performed on in the HAZET Service Centre, since the wrench must be subjected after repair to an individual 10000 V test toEN 60900/VDE 0682 Note: For use only in conjunction with fully insulated tool heads. ±6% ±4% 657556 25 Maximum torque N-m 10 25 65 7556 Torque wrench, fully insulated with push-through square 310.50 319.50 overall length mm 275 305 Measuring range N-m 2-10 5-25 Scale graduation, 1 graduation = N-m 0.2 0.5 Square drive inch 3/8 Weight kg 0.59 0.64
