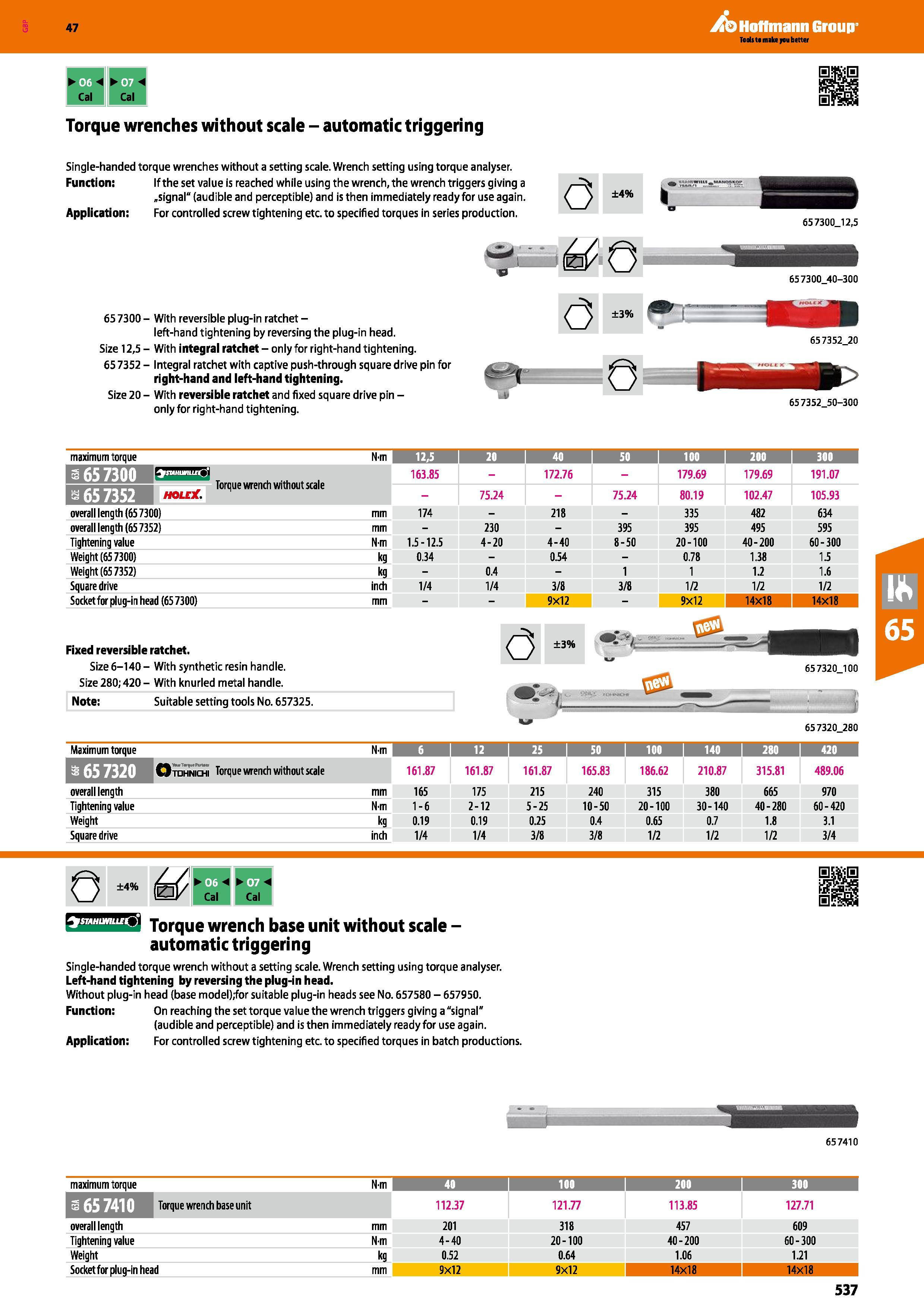

Hoffmann Group 47 Cal Cal Torque wrenches without scale - automatic triggering Single-handed torque wrenches without a setting scale. Wrench setting using torque analyser. Function: If the set value is reached while using the wrench, the wrench triggers giving a „signal“ (audible and perceptible) and is then immediately ready for use again. Application: For controlled screw tightening etc. to specified torques in series production. 65 7300 - With reversible plug-in ratchet - left-hand tightening by reversing the plug-in head. Size 12,5- With integral ratchet-only for right-hand tightening. 65 7352 - Integral ratchet with captive push-through square drive pin for right-hand and left-hand tightening. Size 20 - With reversible ratchet and fixed square drive pin -only for right-hand tightening. O 657300_12,5 65 7352_50-300 maximum torque N'tn 12,5 i 20 1 40 I 50 I 100 200 300 3 65 7300 163.85 - 172.76 - 179.69 179.69 191.07 luruuewrciiuiwiuiumsuie holcX. - 75.24 - 75.24 80.19 102.47 105.93 overall length (65 7300) mm 174 - 218 - 335 482 634 overall length (65 7352) mm - 230 - 395 395 495 595 Tightening value Nm 1.5-12.5 4-20 4-40 8-50 20-100 40-200 60-300 Weight (65 7300) kg 0.34 - 0.54 - 0.78 1.38 1J Weight (65 7352) kg - 0.4 - 1 1 1.2 1.6 Square drive inch 1/4 1/4 3/8 3/8 1/2 1/2 1/2 Socket for plug-in head (65 7300) mm 9x12 - 9X12 14X18 14x18 Fixed reversible ratchet. Size 6-140- With synthetic resin handle. Size 280; 420 - With knurled metal handle. Note: Suitable setting tools No. 657325. (3 ±3% 65 7320J100 _ 65 7320_280 Maximum torque N-m 6 I 12 I 25 50 : 100 i 140 i 280 1 420 OtohnohI Torque wrench without scale 161.87 161.87 161.87 165.83 186.62 210.87 315.81 489.06 overall length mm 165 175 215 240 315 380 665 970 Tightening value N-m 1-6 2-12 5-25 10-50 20-100 30-140 40 - 280 60 - 420 Weight kg 0.19 0.19 0.25 0.4 0.65 0.7 1.8 3.1 Square drive inch 1/4 1/4 3/8 3/8 1/2 1/2 1/2 3/4 O ±4% Torque wrench base unit without scale -automatic triggering Single-handed torque wrench without a setting scale. Wrench setting using torque analyser. Left-hand tightening by reversing the plug-in head. Without plug-in head (base model);for suitable plug-in heads see No. 657580 - 657950. Function: On reaching the set torque value the wrench triggers giving a "signal" (audible and perceptible) and is then immediately ready for use again. Application: For controlled screw tightening etc. to specified torques in batch productions. 657410 maximum torque N-m 40 1 100 200 1 300 1 IfiWTJTM Torque wrench base unit 112.37 121.77 113.85 127.71 overall length mm 201 318 457 609 Tightening value N-m 4-40 20-100 40-200 60-300 Weight kg 0.52 0.64 1.06 1.21 Socket for plug-in head mm 9x12 9x12 14x18 14x18 537
