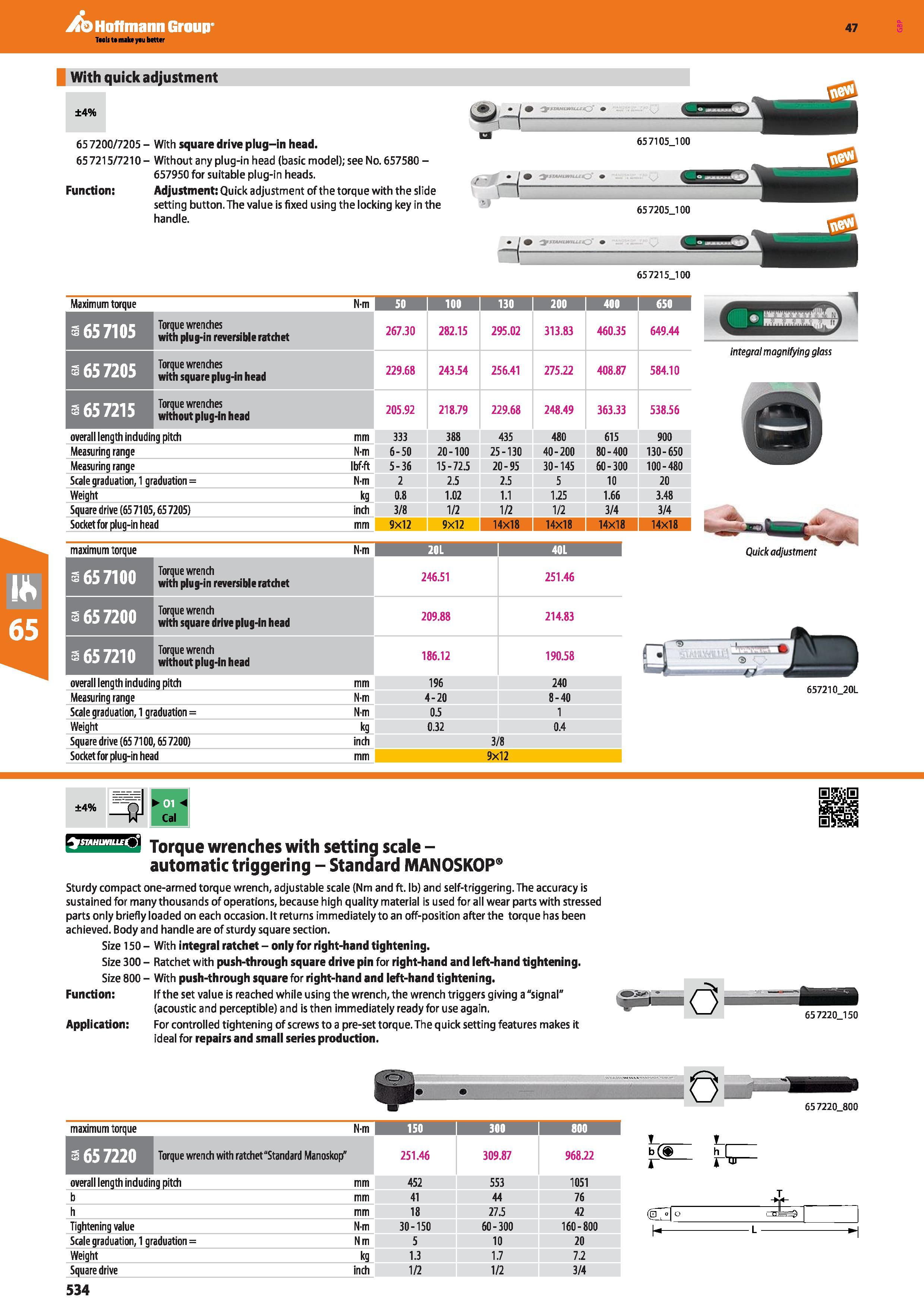

Hoffmann Group 47 With quick adjustment ±4% 65 7200/7205 - With square drive plug-in head. 65 7215/7210 - Without any plug-in head (basic model); see No. 657580 -657950 for suitable plug-in heads. Function: Adjustment: Quick adjustment of the torque with the slide setting button. The value is fixed using the locking key in the handle. 65 7105J 00 657205J00 65 7215J 00 Maximum torque N-m 50 100 130 200 650 Torque wrenches with plug-in reversible ratchet 267.30 282.15 295.02 313.83 460.35 649.44 Torque wrenches with square plug-in head 229.68 243.54 256.41 275.22 408.87 584.10 Torque wrenches without plug-in head 205.92 218.79 229.68 248.49 363.33 538.56 overall length induding pitch mm 333 388 435 480 615 900 Measuring range N-m 6-50 20-100 25-130 40-200 80 - 400 130-650 Measuring range Ibf-ft 5-36 15-72.5 20-95 30-145 60-300 100 - 480 Scale graduation, 1 graduation = N-m 2 2.5 2.5 5 10 20 Weight kg 0.8 1.02 1.1 1.25 1.66 3.48 Square drive (65 7105,65 7205) inch 3/8 1/2 1/2 1/2 3/4 3/4 Socket for plug-in head mm 9x12 9X12 14x18 14x18 14x18 14x18 maximum torque N-m Torque wrench with plug-in reversible ratchet 246.51 251.46 Torque wrench with square drive plug-in head 209.88 214.83 Torque wrench without plug-in head 186.12 190.58 overall length induding pitch mm 196 240 Measuring range N-m 4-20 8-40 Scale graduation, 1 graduation = N-m 0.5 1 Weight kg 0.32 0.4 Square drive (65 7100,65 7200) inch 3/8 Socket for plug-in head mm 9x12 ±4% “i 1 w SMMWIUfO Torque wrenches with setting scale -automatic triggering - Standard MANOSKOP Sturdy compact one-armed torque wrench, adjustable scale (Nm and ft. lb) and self-triggering. The accuracy is sustained for many thousands of operations, because high quality material is used for all wear parts with stressed parts only briefly loaded on each occasion. It returns immediately to an off-position after the torque has been achieved. Body and handle are of sturdy square section. Size 150 - With integral ratchet - only for right-hand tightening. Size 300 - Ratchet with push-through square drive pin for right-hand and left-hand tightening. Size 800 - With push-through square for right-hand and left-hand tightening. Function: If the set value is reached while using the wrench, the wrench triggers giving a “signal" (acoustic and perceptible) and is then immediately ready for use again. Application: For controlled tightening of screws to a pre-set torque. The quick setting features makes it ideal for repairs and small series production. 657220_150 65 7220_800 maximum torque N-m b( -f Torque wrench with ratchet“Standard Manoskop" 251.46 309.87 968.22 overall length induding pitch mm 452 553 1051 b mm 41 44 76 h mm 18 27.5 42 oj Q ... -o Tightening value N-m 30-150 60-300 160-800 U L H Scale graduation, 1 graduation = Nm 5 10 20 1 l Weight kg 1.3 1.7 7.2 Square drive inch 1/2 1/2 3/4 534 integral magnifying glass 657210_20L
