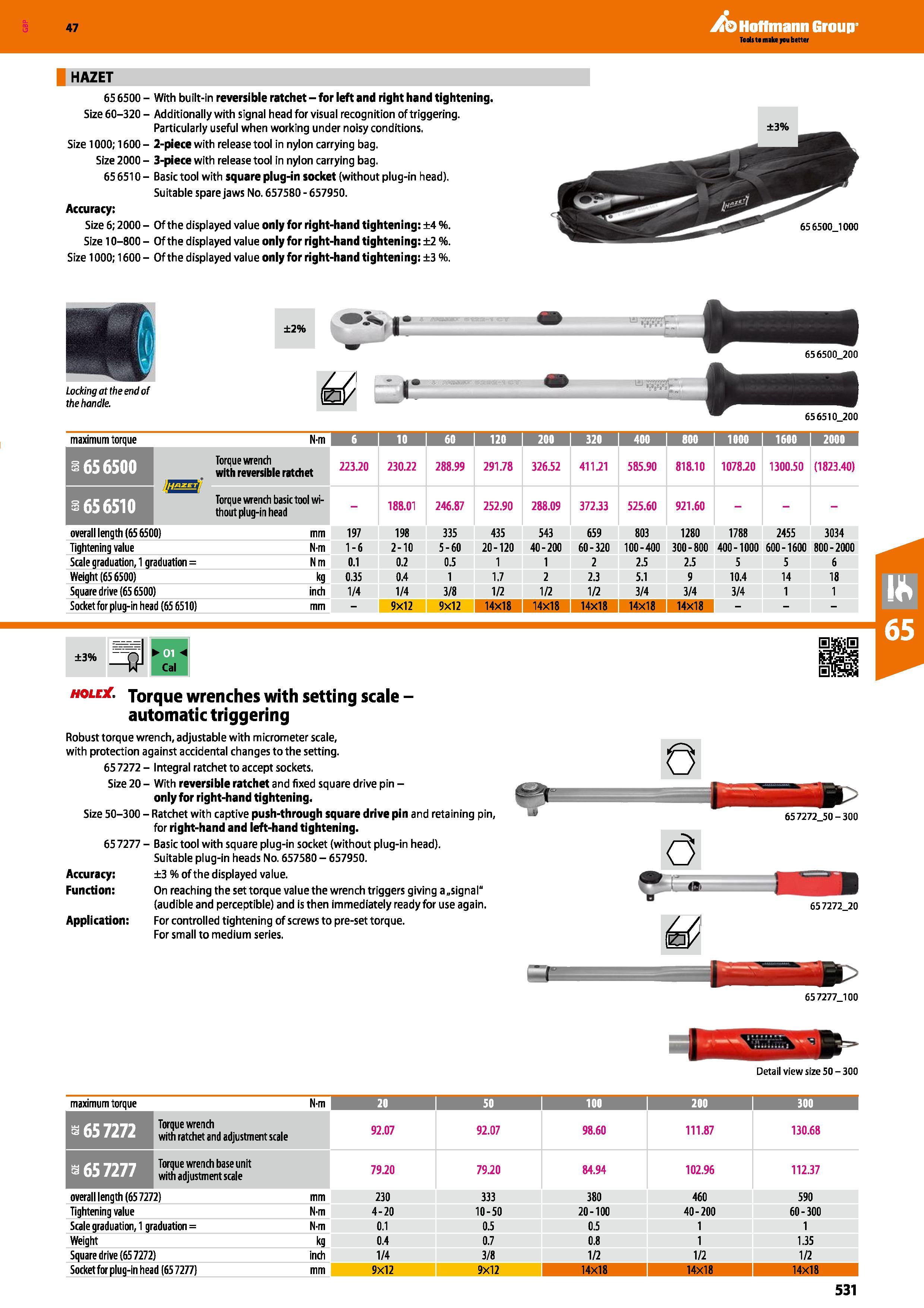

Hoffmann Group 47 HAZET 65 6500 - With built-in reversible ratchet - for left and right hand tightening. Size 60-320 - Additionally with signal head for visual recognition of triggering. Particularly useful when working under noisy conditions. Size 1000; 1600 - 2-piece with release tool in nylon carrying bag. Size 2000 - 3-piece with release tool in nylon carrying bag. 65 6510 - Basic tool with square plug-in socket (without plug-in head). Suitable spare jaws No. 657580 - 657950. Accuracy: Size 6; 2000 - Of the displayed value only for right-hand tightening: ±4 %. Size 10-800 - Of the displayed value only for right-hand tightening: ±2 %. Size 1000; 1600- Of the displayed value only for right-hand tightening; ±3 %. 656500 1000 ±2% Locking at the end of the handle. r 65 6510_200 maximum torque N-m 6 j 10 I 60 I 120 I 200 I 320 I 400 BIM 1000 1 1600 o Torque wrench with reversible ratchet 223.20 230.22 288.99 291.78 326.52 411.21 585.90 818.10 1078.20 1300.50 (1823.40) 65 6510 Torque wrench bask tool without plug-in head - 188.01 246.87 252.90 288.09 372.33 525.60 921.60 overall length (65 6500) mm 197 198 335 435 543 659 803 1280 1788 2455 3034 Tightening value N-m 1-6 2-10 5-60 20-120 40 - 200 60-320 100 - 400 300-800 400-1000 600-1600 800-2000 Scale graduation, 1 graduation = Nm 0.1 0.2 0.5 1 1 2 2.5 2.5 5 5 6 Weight (65 6500) kg 0.35 0.4 1 1.7 2 2.3 5.1 9 10.4 14 18 Square drive (65 6500) inch 1/4 1/4 3/8 1/2 1/2 1/2 3/4 3/4 3/4 1 1 Socket for plug-in head (65 6510) mm - 9x12 9x12 14X18 14X18 14x18 14x18 14x18 ±3% hole . Torque wrenches with setting scale -automatic triggering Robust torque wrench, adjustable with micrometer scale, with protection against accidental changes to the setting. 65 7272 - Integral ratchet to accept sockets. Size 20 - With reversible ratchet and fixed square drive pin -only for right-hand tightening. Size 50-300 - Ratchet with captive push-through square drive pin and retaining pin, for right-hand and left-hand tightening. 65 7277 - Basic tool with square plug-in socket (without plug-in head). Suitable plug-in heads No. 657580 - 657950. Accuracy: ±3 % of the displayed value. Function: On reaching the set torque value the wrench triggers giving a„signal“ (audible and perceptible) and is then immediately ready for use again. Application: For controlled tightening of screws to pre-set torque. For small to medium series. 8 65 7272_50 -300 O : L -4BL 65 7272_20 657277_100 't/mm. Detail view size 50 - 300 maximum torque N-m 20 50 I 100 I 200 1 300 1 Torque wrench with ratchet and adjustment scale 92.07 92.07 98.60 111.87 130.68 3 65 7277 Torque wrench base unit with adjustment scale 79.20 79.20 84.94 102.96 112.37 overall length (65 7272) mm 230 333 380 460 590 Tightening value N-m 4-20 10-50 20-100 40-200 60 - 300 Scale graduation, 1 graduation = N-m 0.1 0.5 0.5 1 1 Weight kg 0.4 0.7 0.8 1 1.35 Square drive (65 7272) inch 1/4 3/8 1/2 1/2 1/2 Socket for plug-in head (65 7277) mm 9x12 9x12 14x18 14x18 14x18 531
