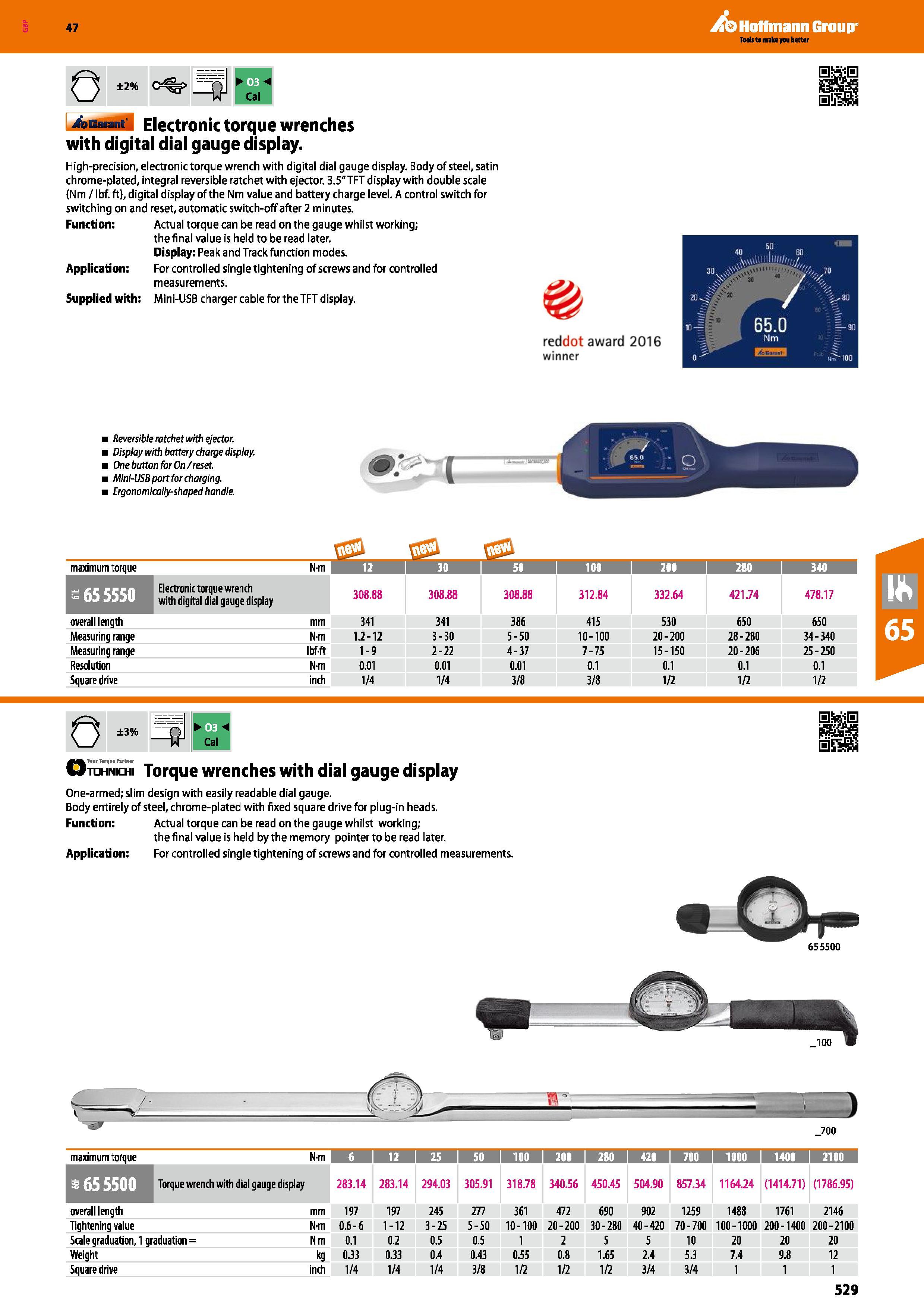

47 Hoffmann Group Q ±2% bGaiant Electronic torque wrenches with digital dial gauge display. High-precision, electronic torque wrench with digital dial gauge display. Body of steel, satin chrome-plated, integral reversible ratchet with ejector. 3.5"TFT display with double scale (Nm / Ibf. ft), digital display of the Nm value and battery charge level. A control switch for switching on and reset, automatic switch-off after 2 minutes. Function: Actual torque can be read on the gauge whilst working; the final value is held to be read later. Display: PeakandTrackfunction modes. Application: For controlled single tightening of screws and for controlled measurements. Supplied with: Mini-USB charger cable for the TFT display. reddot award 2016 winner Reversible ratchet with ejector. Display with battery charge display. One button for On /reset. Mini-USB port for charging. Ergonomically-shaped handle. maximum torque N-m 12 I 30 I 50 i ioo 200 280 340 - 65 5550 Electronic torque wrench with digital dial gauge display 308.88 308.88 308.88 312.84 332.64 421.74 478.17 overall length mm 341 341 386 415 530 650 650 Measuring range N-m 1.2-12 3-30 5-50 10-100 20-200 28-280 34-340 Measuring range Ibf'ft 1-9 2-22 4-37 7-75 15-150 20-206 25 - 250 Resolution N-m 0.01 0.01 0.01 0.1 0.1 0.1 0.1 Square drive inch 1/4 1/4 3/8 3/8 1/2 1/2 1/2 ±3% ff < Cal 0 Mur Torque Partner tohnichi Torque wrenches with dial gauge display One-armed; slim design with easily readable dial gauge. Body entirely of steel, chrome-plated with fixed square drive for plug-in heads. Function: Actual torque can be read on the gauge whilst working; the final value is held by the memory pointer to be read later. Application: For controlled single tightening of screws and for controlled measurements. 655500 -v_ _700 maximum torque N-m 6 12 1 25 1 50 I 100 1 200 1 280 1 420 >iiM 1000 1 1400 1 2100 E Torque wrench with dial gauge display 283.14 283.14 294.03 305.91 318.78 340.56 450.45 504.90 857.34 1164.24 (1414.71) (1786.95) overall length mm 197 197 245 277 361 472 690 902 1259 1488 1761 2146 Tightening value N-m 0.6-6 1-12 3-25 5-50 10-100 20-200 30-280 40-420 70-700 100-1000 200-1400 200-2100 Scale graduation, 1 graduation = Nm 0.1 0.2 0.5 0.5 1 2 5 5 10 20 20 20 Weight kg 0.33 0.33 0.4 0.43 0.55 0.8 1.65 2.4 5.3 7.4 9.8 12 Square drive inch 1/4 1/4 1/4 3/8 1/2 1/2 1/2 3/4 3/4 1 1 1 529
