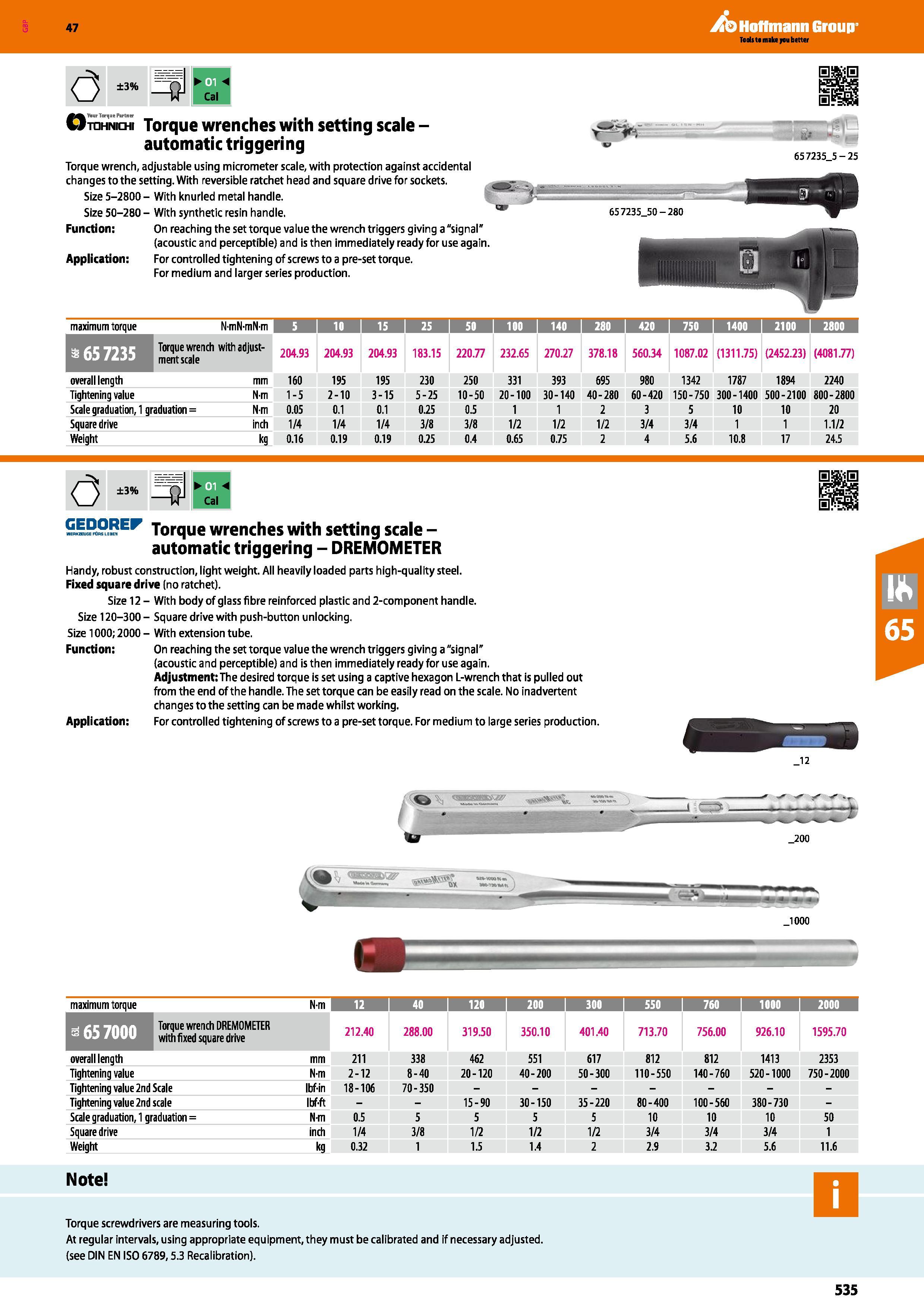

Hoffmann Group 47 ±3% J Cal (3 Yaur Torque Partner tdhnidhi Torque wrenches with setting scale -automatic triggering Torque wrench, adjustable using micrometer scale, with protection against accidental changes to the setting. With reversible ratchet head and square drive for sockets. Size 5-2800- With knurled metal handle. Size 50-280 - With synthetic resin handle. Function: On reaching the set torque value the wrench triggers giving a "signal" (acoustic and perceptible) and is then immediately ready for use again. Application: For controlled tightening of screws to a pre-set torque. For medium and larger series production. maximum torque N-mN-mN-m 5 10 1 15 1 25 I 50 I 100 I 140 I 280 I 420 I 750 1 1400 1 2100 1 2800 1 Torque wrench with adjustment scale 204.93 204.93 204.93 183.15 220.77 232.65 270.27 378.18 560.34 1087.02 (1311.75) (2452.23) (4081.77) overall length mm 160 195 195 230 250 331 393 695 980 1342 1787 1894 2240 Tightening value N-m 1-5 2-10 3-15 5-25 10-50 20-100 30-140 40-280 60-420 150-750 300-1400 500-2100 800-2800 Scale graduation, 1 graduation = N-m 0.05 0.1 0.1 0.25 Oi 1 1 2 3 5 10 10 20 Square drive inch 1/4 1/4 1/4 3/8 3/8 1/2 1/2 1/2 3/4 3/4 1 1 1.1/2 Weight kg 0.16 0.19 0.19 0.25 0.4 0.65 0.75 2 4 5.6 10.8 17 24.5 ±3% M < Cal 0 Torque wrenches with setting scale -automatic triggering - DREMOMETER Handy, robust construction, light weight. All heavily loaded parts high-quality steel. Fixed square drive (no ratchet). Size 12 - With body of glass fibre reinforced plastic and 2-component handle. Size 120-300- Square drive with push-button unlocking. Size 1000; 2000 - With extension tube. Function: On reaching the set torque value the wrench triggers giving a "signal" (acoustic and perceptible) and is then immediately ready for use again. Adjustment: The desired torque is set using a captive hexagon L-wrench that is pulled out from the end of the handle. The set torque can be easily read on the scale. No inadvertent changes to the setting can be made whilst working. Application: For controlled tightening of screws to a pre-set torque. For medium to large series production. 'w. y '' -r _200 _1000 maximum torque N-m 12 40 120 200 300 i 550 760 1000 i 2000 1 Torque wrench DREMOMETER with fixed square drive 212.40 288.00 319.50 350.10 401.40 713.70 756.00 926.10 1595.70 overall length mm 211 338 462 551 617 812 812 1413 2353 Tightening value N-m 2-12 8-40 20-120 40-200 50-300 110-550 140-760 520-1000 750-2000 Tightening value 2nd Scale lbf-in 18-106 70-350 - Tightening value 2nd scale lbf-ft 15-90 30-150 35 - 220 80-400 100-560 380-730 - Scale graduation, 1 graduation = N-m 0.5 5 5 5 5 10 10 10 50 Square drive inch 1/4 3/8 1/2 1/2 1/2 3/4 3/4 3/4 1 Weight kg 0.32 1 1.5 1.4 2 2.9 3.2 5.6 11.6 Torque screwdrivers are measuring tools. At regular intervals, using appropriate equipment, they must be calibrated and if necessary adjusted, (see DIN EN ISO 6789,5.3 Recalibration). 535
