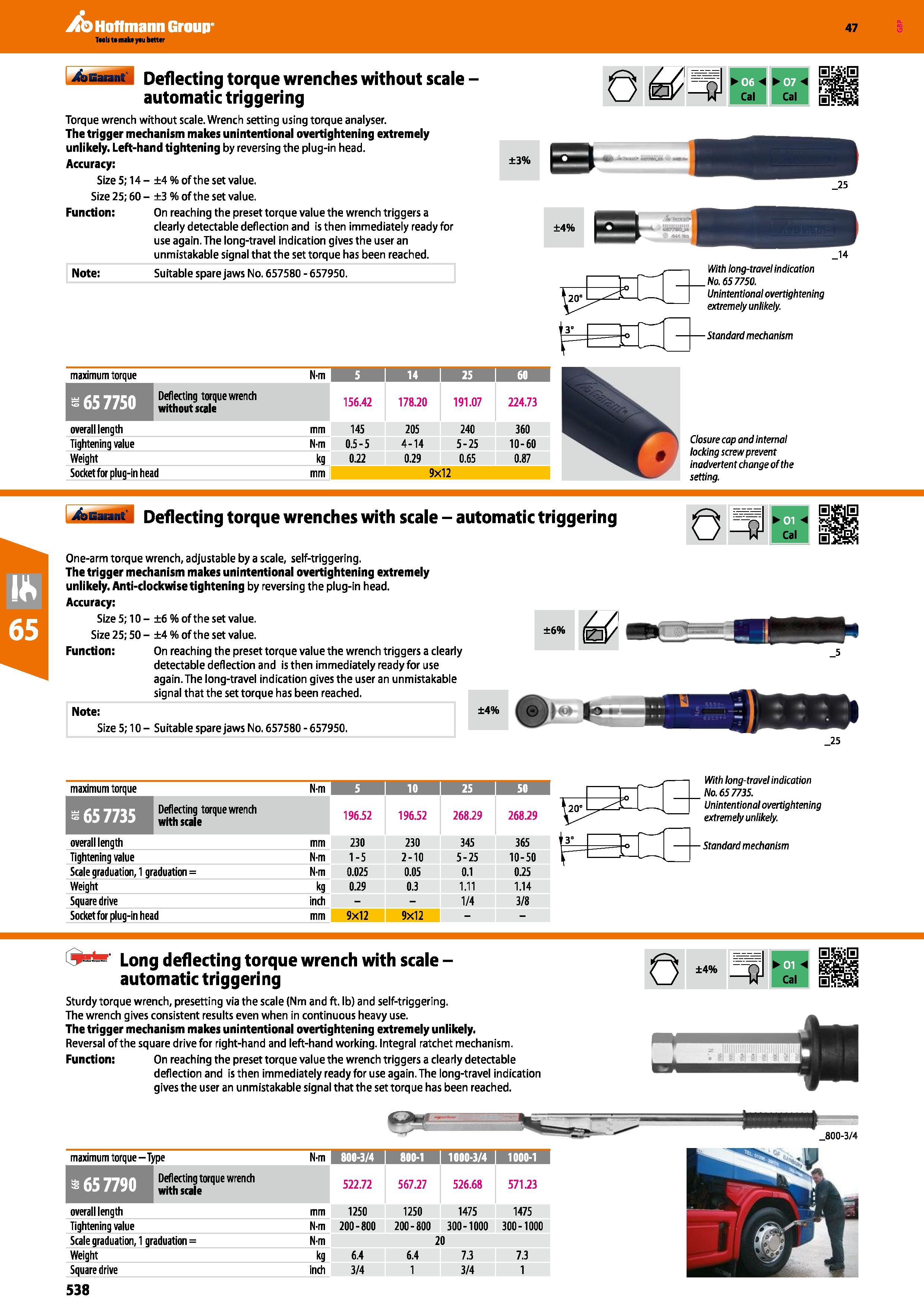

Hoffmann Group 47 Deflecting torque wrenches without scale automatic triggering Torque wrench without scale. Wrench setting using torque analyser. The trigger mechanism makes unintentional overtightening extremely unlikely. Left-hand tightening by reversing the plug-in head. Accuracy: Size 5; 14- ±4%ofthesetvalue. Size 25; 60 - ±3 % of the set value. ±3% Function: Note: On reaching the preset torque value the wrench triggers a clearly detectable deflection and is then immediately ready for use again. The long-travel indication gives the user an unmistakable signal that the set torque has been reached. Suitable spare jaws No. 657580 - 657950. ±4% maximum torque N-m s 14 1 25 60 i Deflecting torque wrench without scale 156.42 178.20 191.07 224.73 overall length mm 145 205 240 360 Tightening value N-m 0.5-5 4-14 5-25 10-60 Weight kg 0.22 0.29 0.65 0.87 Socket for plug-in head mm 9x12 XbGarant Deflecting torque wrenches with scale - automatic triggering One-arm torque wrench, adjustable by a scale, self-triggering. The trigger mechanism makes unintentional overtightening extremely unlikely. Anti-clockwise tightening by reversing the plug-in head. Accuracy: Size5;10- ±6%ofthesetvalue. Size 25; 50 - ±4 % of the set value. Function: On reaching the preset torque value the wrench triggers a clearly detectable deflection and is then immediately ready for use again. The long-travel indication gives the user an unmistakable signal that the set torque has been reached. Note: Size 5; 10 - Suitable spare jaws No. 657580 - 657950. With long-travel indication No. 65 7750. Unintentional overtightening extremely unlikely. Standard mechanism Closure cap and in temal locking screw prevent inadvertent change of the setting. ±6% ±4% maximum torque N-m 5 10 1 25 50 i Deflecting torque wrench with scale 196.52 196.52 268.29 268.29 overall length mm 230 230 345 365 Tightening value N-m 1-5 2-10 5-25 10-50 Scale graduation, 1 graduation = N-m 0.025 0.05 0.1 0.25 Weight kg 0.29 0.3 1.11 1.14 Square drive inch 1/4 3/8 Socket for plug-in head mm 9x12 9x12 Long deflecting torque wrench with scale -automatic triggering Sturdy torque wrench, presetting via the scale (Nm and ft. lb) and self-triggering. The wrench gives consistent results even when in continuous heavy use. The trigger mechanism makes unintentional overtightening extremely unlikely. Reversal of the square drive for right-hand and left-hand working. Integral ratchet mechanism. Function: On reaching the preset torque value the wrench triggers a clearly detectable deflection and is then immediately ready for use again. The long-travel indication gives the user an unmistakable signal that the set torque has been reached. With long-travel indication _ No. 65 7735. Unintentional overtightening extremely unlikely. - Standard mechanism o ±4% < Cal _800-3/4 maximum torque-Type N-m 800-3/4 I 800-1 1 1000-3/4 I 1000-1 Deflecting torque wrench with scale 522.72 567.27 526.68 571.23 overall length mm 1250 1250 1475 1475 Tightening value N-m 200-800 200 - 800 300-1000 300-1000 Scale graduation, 1 graduation = N-m 20 Weight kg 6.4 6.4 7.3 7.3 Square drive inch 3/4 1 3/4 1 538
