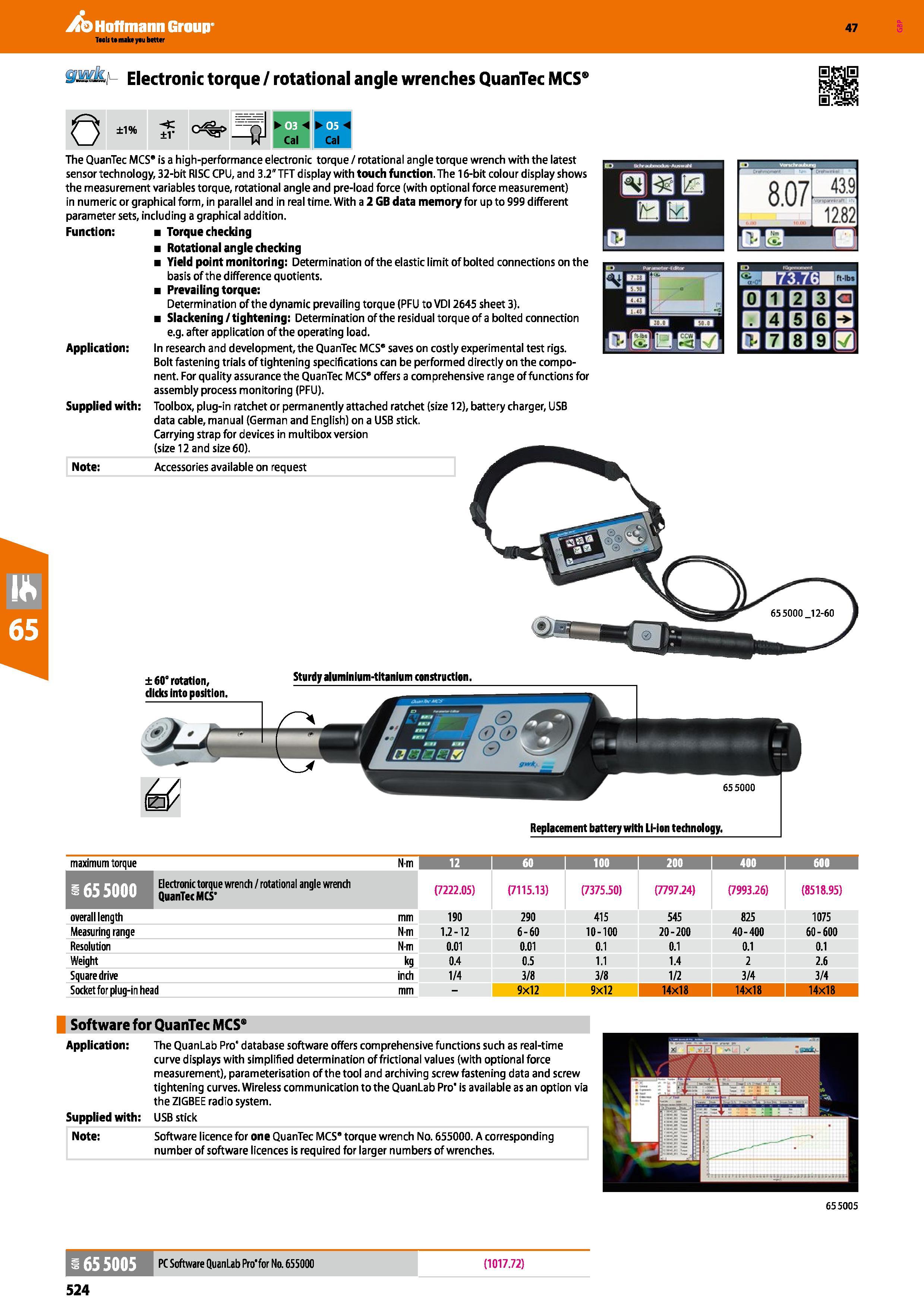

Hoffmann Group 47 Electronic torque / rotational angle wrenches QuanTec MCS s 0 G H ±60° rotation, dicks into position. Sturdy aluminium-titanium construction. maximum torque Nm 12 i 60 ioo 200 400 600 Electronic torque wrench / rotational angle wrench QuanTec MCS' (7222.05) (7115.13) (7375.50) (7797.24) (7993.26) (8518.95) overall length mm 190 290 415 545 825 1075 Measuring range Nm 1.2-12 6-60 10-100 20-200 40-400 60 - 600 Resolution Nm 0.01 0.01 0.1 0.1 0.1 0.1 Weight kg 0.4 0.5 1.1 1.4 2 2.6 Square drive inch 1/4 3/8 3/8 1/2 3/4 3/4 Socket for plug-in head mm - 9x12 9x12 14x18 14x18 14x18 Software for QuanTec MCS8 Application: Supplied with: Note: The QuanLab Pro' database software offers comprehensive functions such as real-time curve displays with simplified determination of frictional values (with optional force measurement), parameterisation of the tool and archiving screw fastening data and screw tightening curves. Wireless communication to the QuanLab Pro' is available as an option via the ZIGBEE radio system. USB stick Software licence for one QuanTec MCS” torque wrench No. 655000. A corresponding number of software licences is required for larger numbers of wrenches. 655005 I 524 655005 PC Software QuanLab Pro'for Na 655000 (1017.72) Note: Accessories available on request Mi Cal Cal The QuanTec MCS" is a high-performance electronic torque / rotational angle torque wrench with the latest sensor technology, 32-bit RISC CPU, and 3.2" TFT display with touch function. The 16-bit colour display shows the measurement variables torque, rotational angle and pre-load force (with optional force measurement) in numeric or graphical form, in parallel and in real time. With a 2 GB data memory for up to 999 different parameter sets, including a graphical addition. Function: Torque checking Rotational angle checking Yield point monitoring: Determination of the elastic limit of bolted connections on the basis of the difference quotients. Prevailing torque: Determination of the dynamic prevailing torque (PFU to VDI 2645 sheet 3). Slackening/tightening: Determination of the residual torque of a bolted connection e.g. after application of the operating load. Application: In research and development, the QuanTec MCS” saves on costly experimental test rigs. Bolt fastening trials of tightening specifications can be performed directly on the component. For quality assurance the QuanTec MCS” offers a comprehensive range of functions for assembly process monitoring (PFU). Supplied with: Toolbox, plug-in ratchet or permanently attached ratchet (size 12), battery charger, USB data cable, manual (German and English) on a USB stick. Carrying strap for devices in multibox version (size 12 and size 60).
