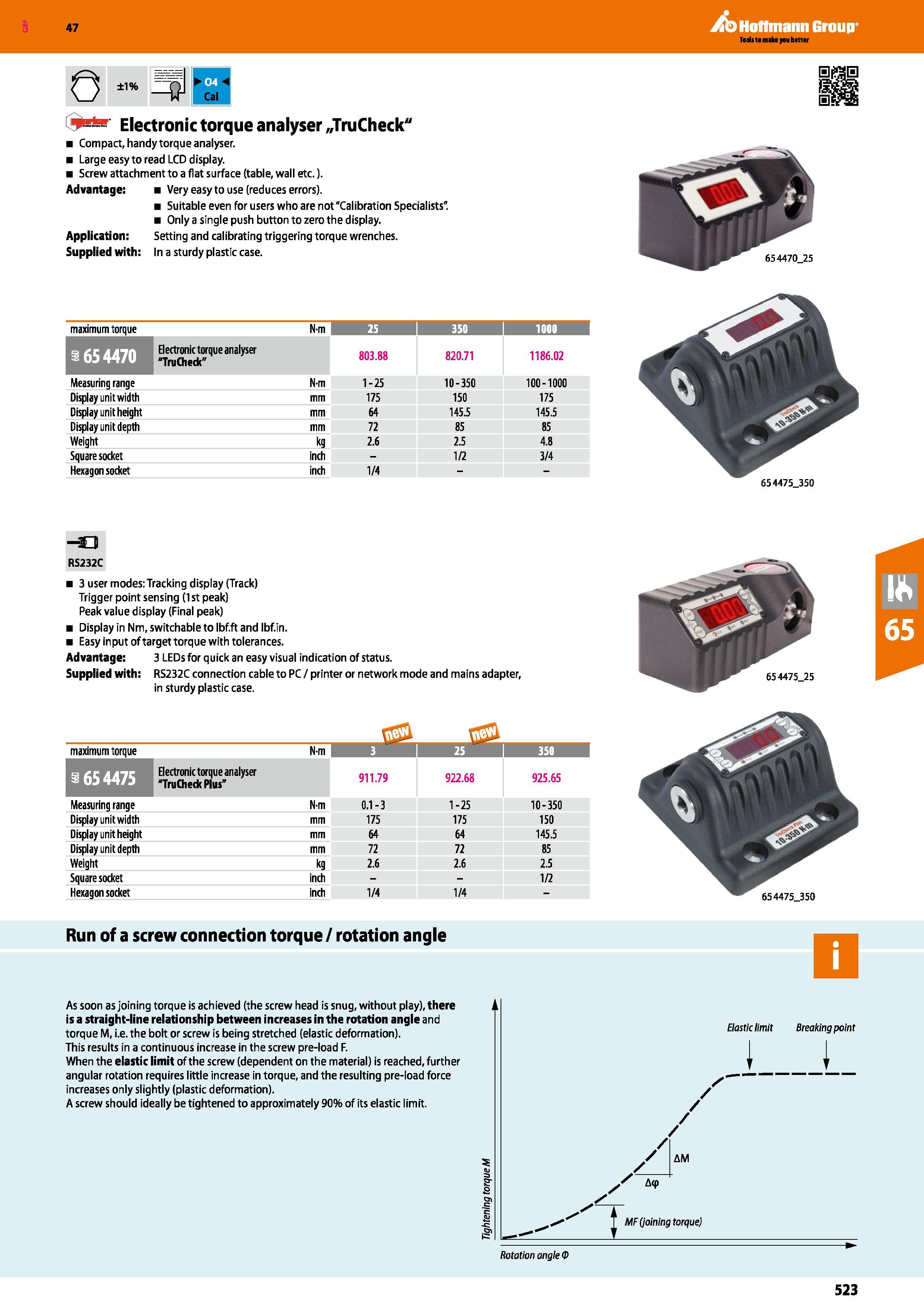

Hoffmann Group 47 0 ±1% -t1 v Cal Electronic torque analyser „TruCheck" Compact, handy torque analyser. Large easy to read LCD display. Screw attachment to a flat surface (table, wall etc.). Advantage: Application: Supplied with: Very easy to use (reduces errors). Suitable even for users who are not “Calibration Specialists". Only a single push button to zero the display. Setting and calibrating triggering torque wrenches. In a sturdy plastic case. maximum torque 654470 Electronic torque analyser "TruCheck" Measuring range Display unit width Display unit height Display unit depth Weight Square socket Hexagon socket N-m 25 350 1000 803.88 820.71 1186.02 N-m 1-25 10-350 100-1000 mm 175 150 175 mm 64 145.5 145.5 mm 72 85 85 kg 2.6 2.5 4.8 inch - 1/2 3/4 inch 1/4 -D RS232C 3 user modes: Tracking display (Track) Trigger point sensing (1st peak) Peak value display (Final peak) Display in Nm, switchable to Ibf.ft and Ibf.in. Easy input of target torque with tolerances. Advantage: 3 LEDs for quick an easy visual indication of status. Supplied with: RS232C connection cable to PC / printer or network mode and mains adapter, in sturdy plastic case. 65 4475_25 maximum torque N-m I 25 350 i a 65 4475 Electronic torque analyser "TruCheck Plus" 911.79 922.68 925.65 Measuring range N-m 0.1-3 1-25 10-350 Display unit width mm 175 175 150 Display unit height mm 64 64 145.5 Display unit depth mm 72 72 85 Weight kg 2.6 2.6 2.5 Square socket inch 1/2 Hexagon socket inch 1/4 1/4 - Run of a screw connection torque / rotation angle As soon as joining torque is achieved (the screw head is snug, without play), there is a straight-line relationship between increases in the rotation angle and torque M, i.e. the bolt or screw is being stretched (elastic deformation). This results in a continuous increase in the screw pre-load F. When the elastic limit of the screw (dependent on the material) is reached, further angular rotation requires little increase in torque, and the resulting pre-load force increases only slightly (plastic deformation). A screw should ideally be tightened to approximately 90% of its elastic limit. Elasticiimit Breaking point / / / / AM MF (joining torque) Rotation angle
