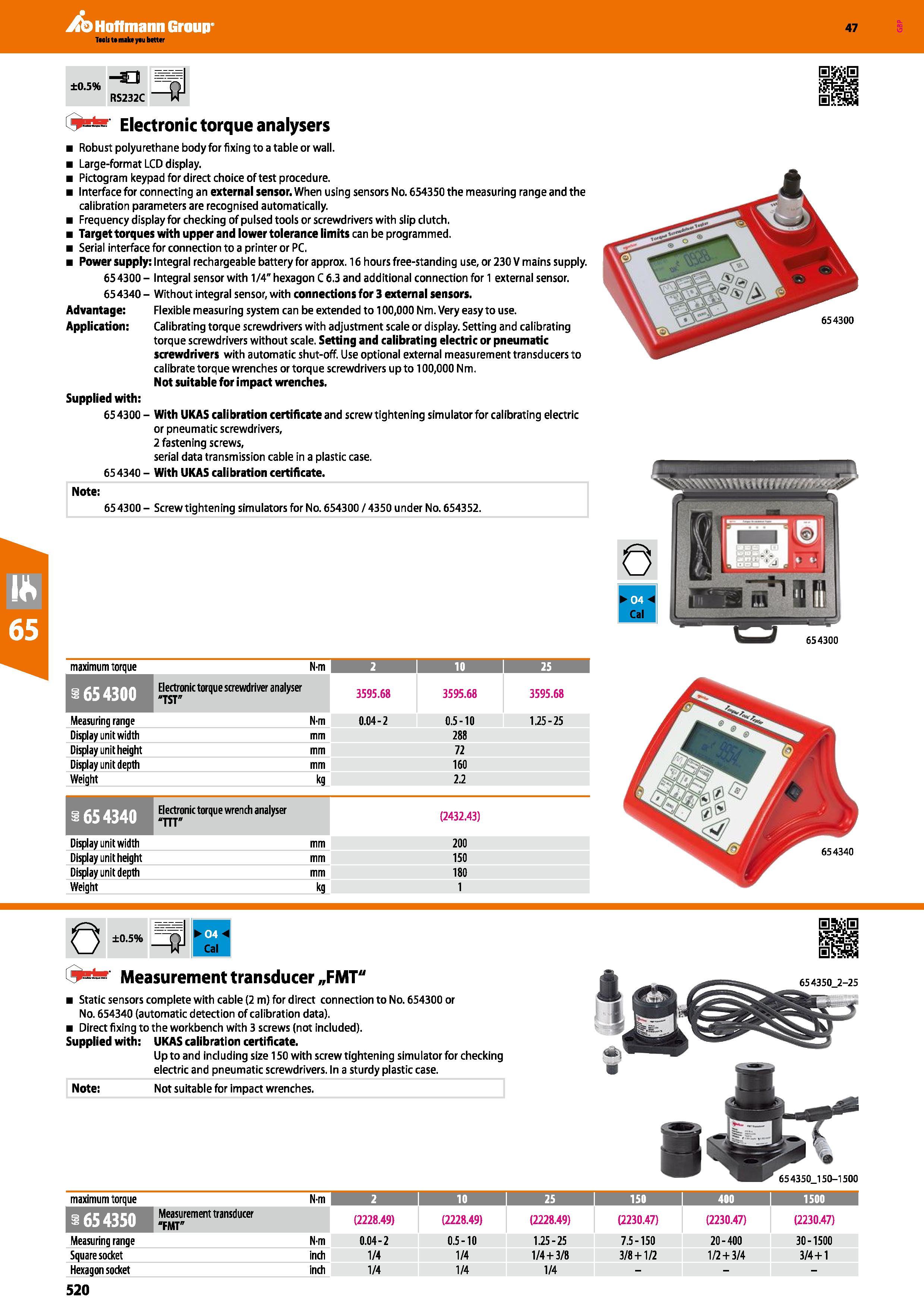

Hoffmann Group 47 S3 ±0.5% RS232C O w Electronic torque analysers Robust polyurethane body for fixing to a table or wall. Large-format LCD display. Pictogram keypad for direct choice of test procedure. Interface for connecting an external sensor. When using sensors No. 654350 the measuring range and the calibration parameters are recognised automatically. Frequency display for checking of pulsed tools or screwdrivers with slip clutch. Target torques with upper and lower tolerance limits can be programmed. Serial interface for connection to a printer or PC. Power supply: Integral rechargeable battery for approx. 16 hours free-standing use, or 230 V mains supply. 654300- Integral sensor with 1/4" hexagon C 6.3 and additional connection for 1 external sensor. 654340 - Without integral sensor, with connections for 3 external sensors. Advantage: Flexible measuring system can be extended to 100,000 Nm. Very easy to use. Application: Calibrating torque screwdrivers with adjustment scale or display. Setting and calibrating torque screwdrivers without scale. Setting and calibrating electric or pneumatic screwdrivers with automatic shut-off. Use optional external measurement transducers to calibrate torque wrenches or torque screwdrivers up to 100,000 Nm. Not suitable for impact wrenches. Supplied with: 65 4300 - With UKAS calibration certificate and screw tightening simulator for calibrating electric or pneumatic screwdrivers, 2 fastening screws, serial data transmission cable in a plastic case. 654340 - With UKAS calibration certificate. Note: 654300- Screw tightening simulators for No. 654300/4350 under No. 654352. maximum torque N-m 2 i 10 I 25 1 654300 Electronic torque screwdriver analyser "TST" 3595.68 3595.68 3595.68 Measuring range N-m 0.04-2 0.5-10 1.25-25 Display unit width mm 288 Display unit height mm 72 Display unit depth mm 160 Weight kg 2.2 I 654340 Electronic torque wrench analyser “nr (2432.43) Display unit width mm 200 Display unit height mm 150 Display unit depth mm 180 Weight kg 1 o ±0.5% v Measurement transducer „FMT" Static sensors complete with cable (2 m) for direct connection to No. 654300 or No. 654340 (automatic detection of calibration data). Direct fixing to the workbench with 3 screws (not included). Supplied with: UKAS calibration certificate. Up to and including size 150 with screw tightening simulator for checking electric and pneumatic screwdrivers. In a sturdy plastic case. Note: Not suitable for impact wrenches. 654350_150-1500 maximum torque N-m 2 j 10 1 25 150 400 1500 I 1654350 Measurement transducer "FMT" (2228.49) (2228.49) (2228.49) (2230.47) (2230.47) (2230.47) Measuring range N-m 0.04-2 0.5-10 1.25-25 7.5-150 20 - 400 30-1500 Square socket inch 1/4 1/4 1/4+ 3/8 3/8+ 1/2 1/2+ 3/4 3/4+1 Hexagon socket inch 1/4 1/4 1/4 520 654300
