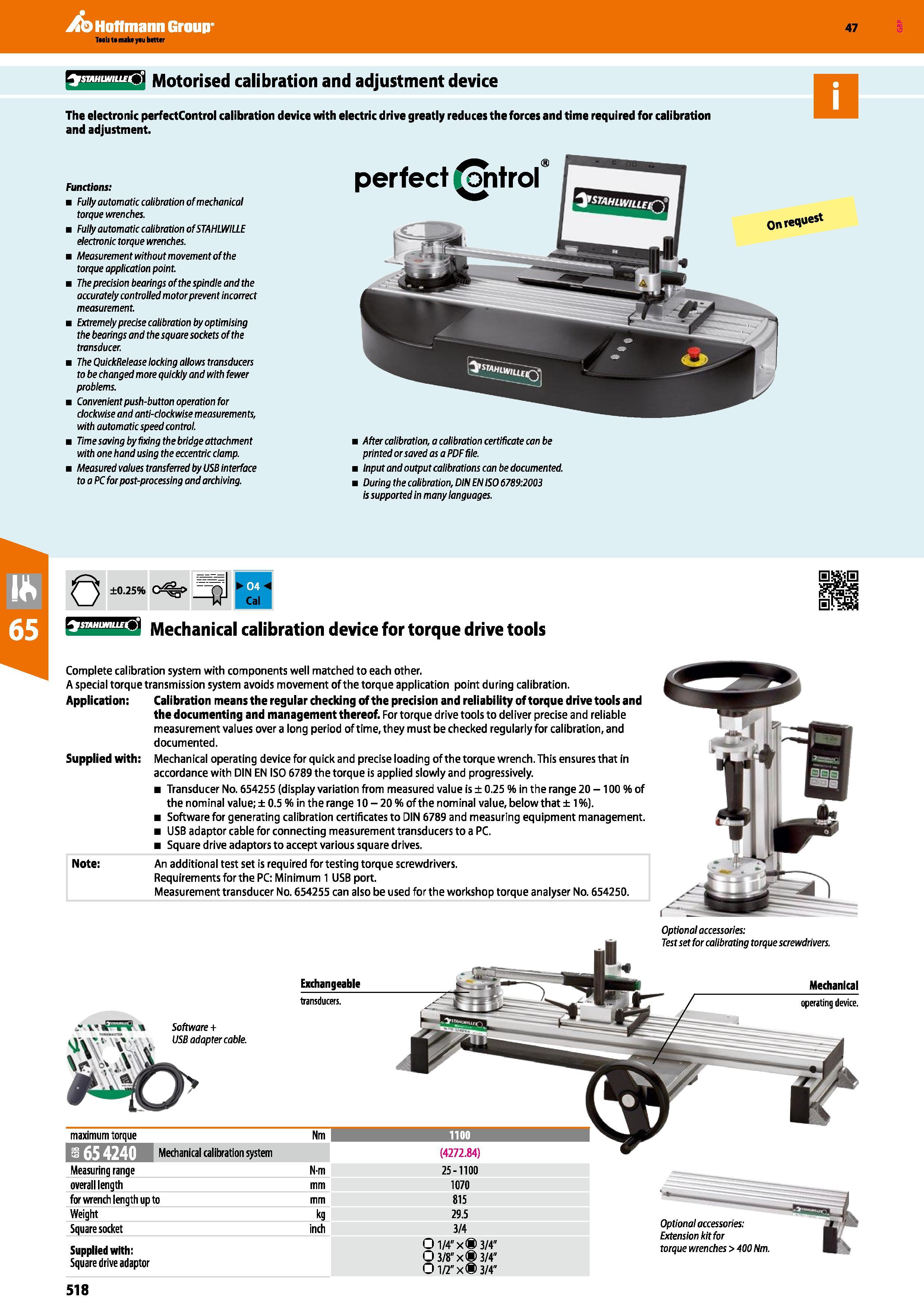

Hoffmann Group 47 fciiimSI Motorised calibration and adjustment device The electronic perfectControl calibration device with electric drive greatly reduces the forces and time required for calibration and adjustment. functions: m Fully automatic calibration of mechanical torque wrenches, m Fully automatic calibration of STAHLWILLE electronic torque wrenches. Measurement without movement of the torque application point m The precision bearings of the spindle and the accurately controlled motor prevent incorrect measurement m Extremely precise calibration by optimising the bearings and the square sockets of the transducer. m The QuickRelease locking allows transducers to be changed more quickly and with fewer problems. m Convenient push-button operation for clockwise and anti-clockwise measuremen ts, with automatic speed control, m Time saving by fixing the bridge attachment with one hand using the eccentric clamp. Measured values transferred by USB interface to a PC for post-processing and archiving. i After calibration, a calibration certificate can be printed or saved as a PDF file. i Input and output calibrations can be documented. i During the calibration, DIN EN ISO 6789:2003 is supported in many languages. 0 ±0.25% o%> H L Cal SMffUHUfO Mechanical calibration device for torque drive tools Complete calibration system with components well matched to each other. A special torque transmission system avoids movement of the torque application point during calibration. Application: Calibration means the regular checking of the precision and reliability of torque drive tools and the documenting and management thereof. For torque drive tools to deliver precise and reliable measurement values over a long period of time, they must be checked regularly for calibration, and documented. Supplied with: Mechanical operating device for quick and precise loading of the torque wrench. This ensures that in accordance with DIN EN ISO 6789 the torque is applied slowly and progressively. Transducer No. 654255 (display variation from measured value is ± 0.25 % in the range 20 -100 % of the nominal value; ±0.5 % in the range 10-20% of the nominal value, below that ± 1% . Software for generating calibration certificates to DIN 6789 and measuring equipment management. USB adaptor cable for connecting measurement transducers to a PC. Square drive adaptors to accept various square drives. Note: An additional test set is required for testing torque screwdrivers. Requirements for the PC: Minimum 1 USB port. Measurement transducer No. 654255 can also be used for the workshop torque analyser No. 654250. Exchangeable transducers. Software + USB adapter cable. maximum torque Nm Mechanical calibration system Measuring range N-m overall length mm for wrench length up to mm Weight kg Square socket inch Supplied with: Square drive adaptor 518 perfect ntrol On t°est (4272.84) 25-1100 1070 815 29.5 3/4 O 1/4" x 3/4" O 3/8" x 3/4" O 1/2" x 3/4" Optional accessories: Test set for calibrating torque screwdrivers. Mechanical operating device. Optional accessories: Extension kit for torque wrenches >400 Nm.
