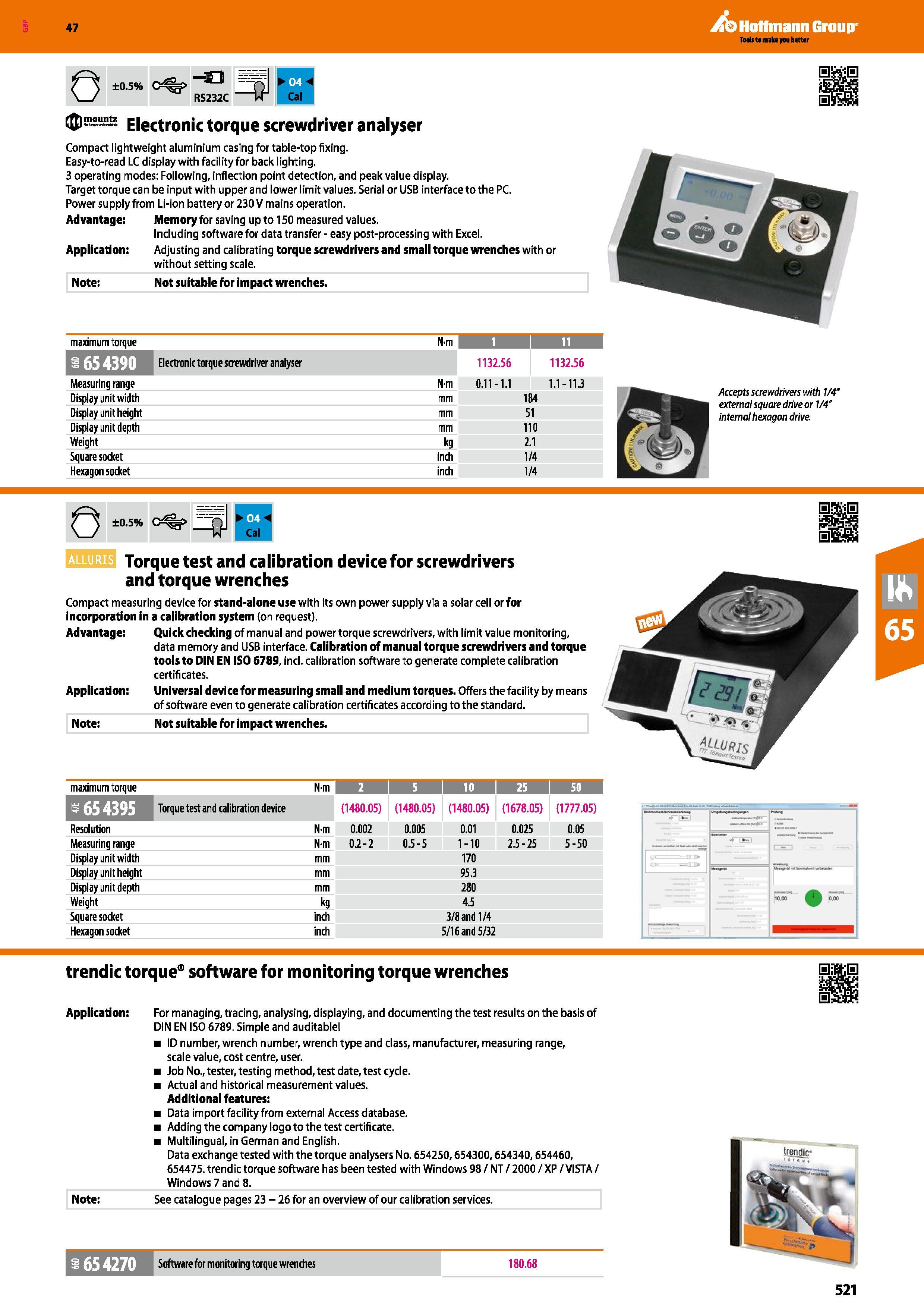

521 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.521

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 521 0521 ENG Lab2u

Hoffmann Group 47 0 ±0.5% Electronic torque screwdriver analyser Compact lightweight aluminium casing for table-top fixing. Easy-to-read LC display with facility for back lighting. 3 operating modes: Following, inflection point detection, and peak value display. Target torque can be input with upper and lower limit values. Serial or USB interface to the PC. Power supply from Li-ion battery or 230 V mains operation. Memory for saving up to 150 measured values. Including software for data transfer - easy post-processing with Excel. Adjusting and calibrating torque screwdrivers and small torque wrenches with or without setting scale. Not suitable for impact wrenches. Advantage: Application: Note: maximum torque N'm 1 I H Electronic torque screwdriver analyser 1132.56 1132.56 Measuring range Display unit width Display unit height Display unit depth Weight Square socket Hexagon socket Nm mm kg inch inch 1.1-11.3 184 51 110 2.1 1/4 1/4 Accepts screwdrivers with 1/4’ external square drive or 1/4" internal hexagon drive. o ±0.5% ALLURIS Torque test and calibration device for screwdrivers and torque wrenches Compact measuring device for stand-alone use with its own power supply via a solar cell or for incorporation in a calibration system (on request). Advantage: Quick checking of manual and power torque screwdrivers, with limit value monitoring, data memory and USB interface. Calibration of manual torque screwdrivers and torque tools to DIN EN ISO 6789, incl. calibration software to generate complete calibration certificates. Application: Universal device for measuring small and medium torques. Offers the facility by means of software even to generate calibration certificates according to the standard. Note: Not suitable for impact wrenches. maximum torque N-m 2 I 5 i 10 25 1 50 E .yrc jvM Torque test and calibration device (1480.05) (1480.05) (1480.05) (1678.05) (1777.05) Resolution N-m 0.002 0.005 0.01 0.025 0.05 Measuring range N-m 0.2-2 0.5-5 1-10 2.5-25 5-50 Display unit width mm 170 Display unit height mm 95.3 Display unit depth mm 280 Weight kg 4.5 Square socket inch 3/8 and 1/4 Hexagon socket inch 5/16 and 5/32 io.oo ooc trendic torque software for monitoring torque wrenches Application: Note: 1 For managing, tracing, analysing, displaying, and documenting the test results on the basis of DIN EN ISO 6789. Simple and auditable ID number, wrench number, wrench type and class, manufacturer, measuring range, scale value, cost centre, user. Job No., tester, testing method, test date, test cycle. Actual and historical measurement values. Additional features: Data import facility from external Access database. Adding the company logo to the test certificate. Multilingual, in German and English. Data exchange tested with the torque analysers No. 654250,654300,654340,654460, 654475. trend ic torque software has been tested with Windows 98 / NT / 2000 / XP / VISTA / Windows 7 and 8. See catalogue pages 23 - 26 for an overview of our calibration services. 654270 Software for monitoring torque wrenches 180.68 521
