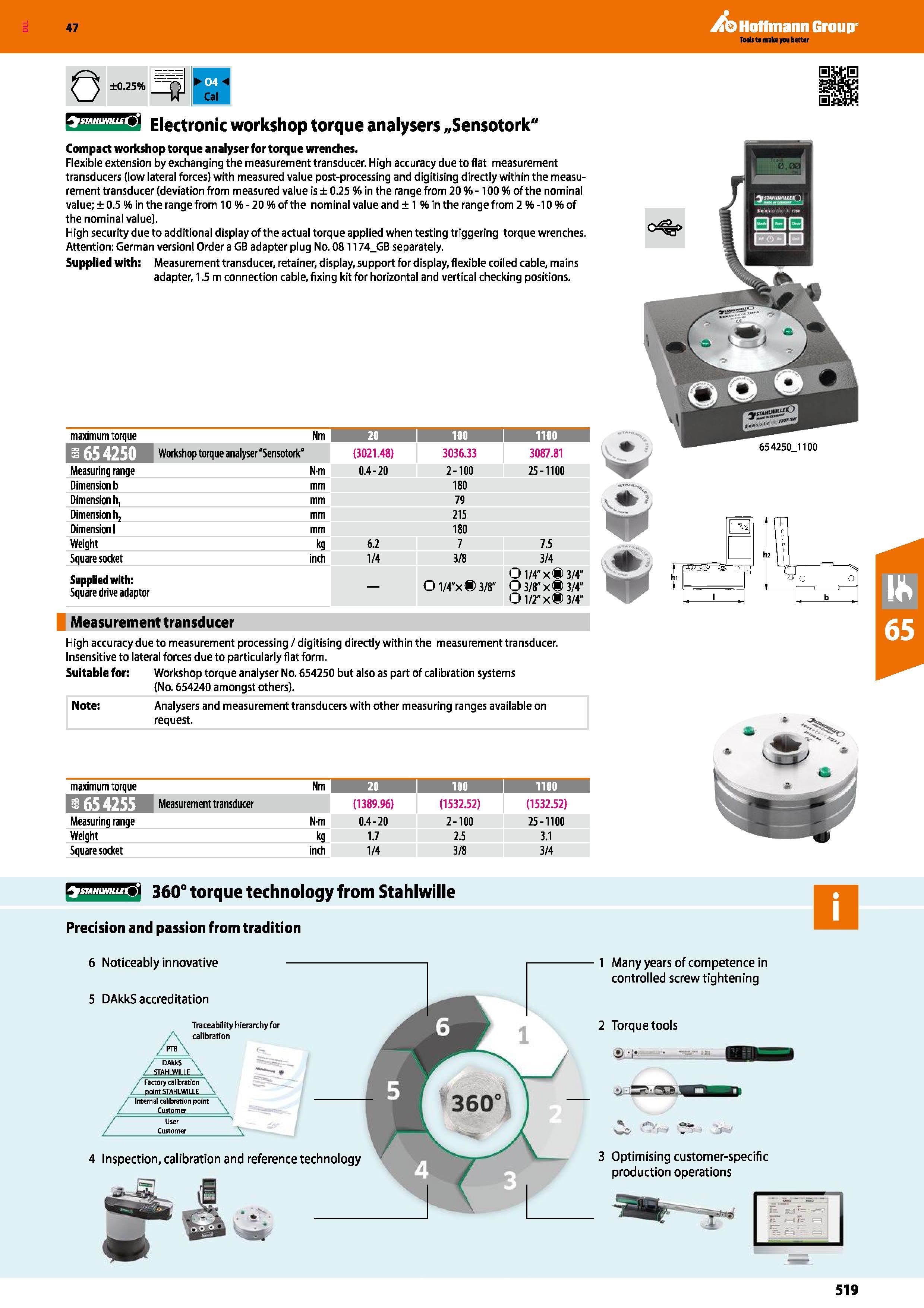

Hoffmann Group 47 0 ±0.25% STAHUMLLE ') Electronic workshop torque analysers „Sensotork" Compact workshop torque analyser for torque wrenches. Flexible extension by exchanging the measurement transducer. High accuracy due to flat measurement transducers (low lateral forces) with measured value post-processing and digitising directly within the measurement transducer (deviation from measured value is ± 0.25 % in the range from 20%-100% of the nominal value; ± 0.5 % in the range from 10 %- 20% of the nominal value and ± 1 % in the range from 2 %-10% of the nominal value). High security due to additional display of the actual torque applied when testing triggering torque wrenches. Attention: German version Order a GB adapter plug No. 081174_GB separately. Supplied with: Measurement transducer, retainer, display, support for display, flexible coiled cable, mains adapter, 1.5 m connection cable, fixing kit for horizontal and vertical checking positions. maximum torque Nm 20 i 100 iioo i 1 654250 Workshop torque analyser“Sensotork" (3021.48) 3036.33 3087.81 Measuring range N-m 0.4-20 2-100 25-1100 Dimension b mm 180 Dimension h, mm 79 Dimension h2 mm 215 Dimension 1 mm 180 Weight kg 6.2 7 7.5 Square socket inch 1/4 3/8 3/4 Supplied with: Square drive adaptor 01/4"x 3/8" O 1/4" x 3/4" O 3/r x 3/4" O 1/2" x 3/4" Measurement transducer 654250_1100 High accuracy due to measurement processing/digitising directly within the measurement transducer. Insensitive to lateral forces due to particularly flat form. Suitable for: Workshop torque analyser No. 654250 but also as part of calibration systems (No. 654240 amongst others). Note: Analysers and measurement transducers with other measuring ranges available on request. maximum torque Nm 20 i 100 i 1100 Nf.'VTy.ltM Measurement transducer (1389.96) (1532.52) (1532.52) Measuring range N-m 0.4-20 2-100 25-1100 Weight kg 1.7 2.5 3.1 Square socket inch 1/4 3/8 3/4 SMMWIUfO 360° torque technology from Stahlwille Precision and passion from tradition 6 Noticeably innovative - 5 DAkkS accreditation Traceability hierarchy for calibration / DAkkS \ / STAHLWILLE \ Factory calibration / point STAHLWILLE v Internal calibration point Customer \ User Customer 4 Inspection, calibration and reference technology 1 Many years of competence in controlled screw tightening 3 Optimising customer-specific production operations 519
