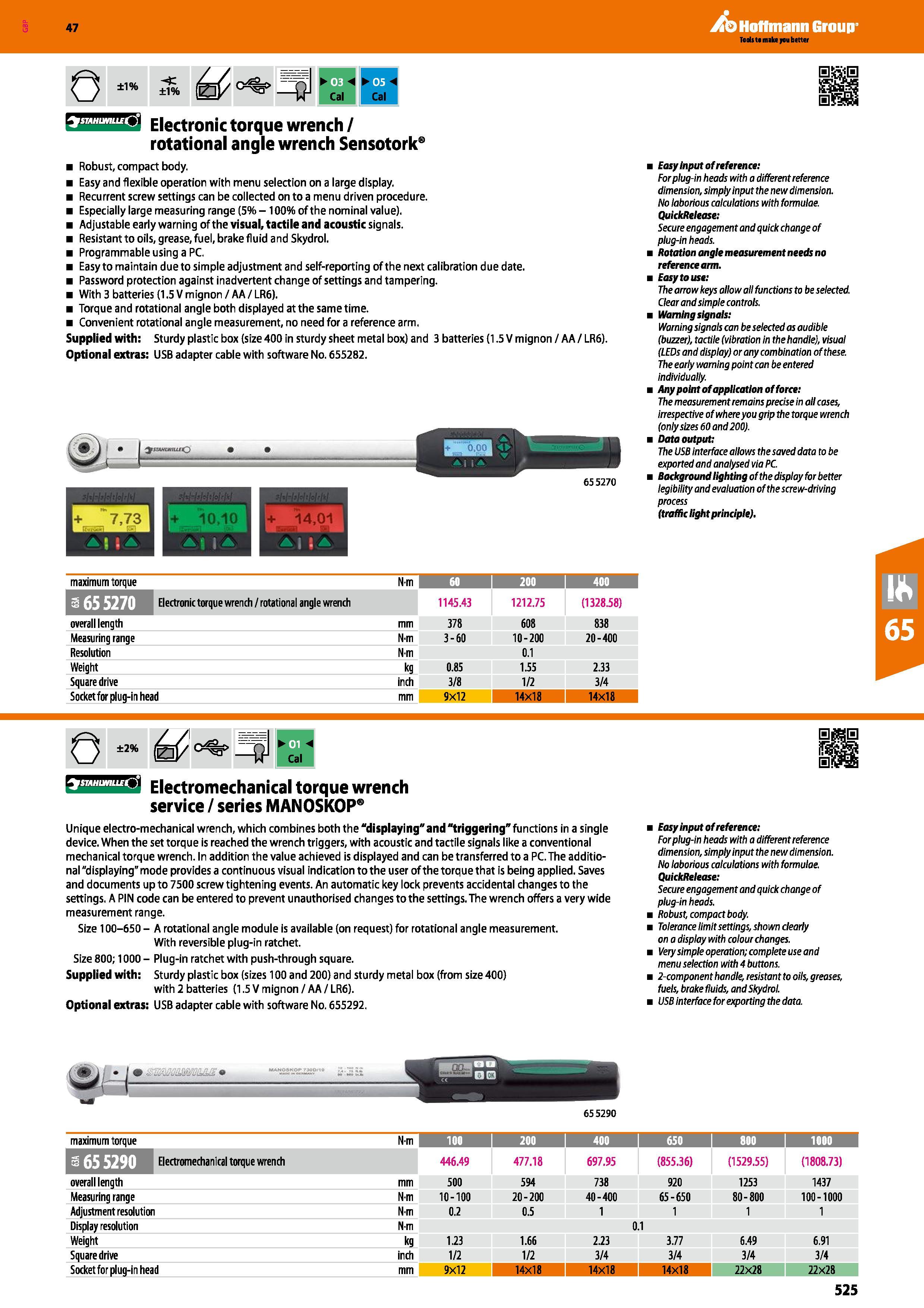

525 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.525

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 525 0525 ENG Lab2u

47 Hoffmann Group 0 ±1% Cal J Cal STAHUMLLE ') Electronic torque wrench / rotational angle wrench Sensotork Robust, compact body. Easy and flexible operation with menu selection on a large display. Recurrent screw settings can be collected on to a menu driven procedure. Especially large measuring range (5% -100% of the nominal value). Adjustable early warning of the visual, tactile and acoustic signals. Resistant to oils, grease, fuel, brake fluid and Skydrol. Programmable using a PC. Easy to maintain due to simple adjustment and self-reporting of the next calibration due date. Password protection against inadvertent change of settings and tampering. With 3 batteries (1.5 V mignon / AA / LR6). Torque and rotational angle both displayed at the same time. Convenient rotational angle measurement, no need for a reference arm. Supplied with: Sturdy plastic box (size 400 in sturdy sheet metal box) and 3 batteries (1.5 V mignon / AA / LR6). Optional extras: USB adapter cable with software No. 655282. 655270 i Easy Input of reference: For plug-in heads with a different reference dimension, simply input the new dimension. No laborious calculations with formulae. QuickRelease: Secure engagement and quick change of plug-in heads. i Rotation angle measurement needs no reference arm. i Easy to use: The arrow keys allow all functions to be selected Clear and simple con trols. i Warning signals: Warning signals can be selected as audible (buzzer), tactile (vibration in the handle), visual (LEDs and display) or any combination of these. The early warning point can be entered individually. i Any point of application of force: The measurement remains precise in all cases, irrespective of where you grip the torque wrench (only sizes 60 and200). i Data output: The USB interface allows the saved data to be exported and analysed via PC. i Background lighting of the display for better legibility and evaluation of the screw-driving process (traffic light principle). maximum torque Nm 60 i 200 1 400 Electronic torque wrench / rotational angle wrench 1145.43 1212.75 (1328.58) overall length mm 378 608 838 Measuring range N-m 3-60 10-200 20-400 Resolution Nm 0.1 Weight kg 0.85 1.55 2.33 Square drive inch 3/8 1/2 3/4 Socketfor plug-in head mm 9x12 14x18 14x18 0 ±2% STAHUmLllir) Electromechanical torque wrench service / series MANOSKOP Unique electro-mechanical wrench, which combines both the ',displaying"and"triggering”functions in a single device. When the set torque is reached the wrench triggers, with acoustic and tactile signals like a conventional mechanical torque wrench. In addition the value achieved is displayed and can be transferred to a PC. The additional "displaying" mode provides a continuous visual indication to the user of the torque that is being applied. Saves and documents up to 7500 screw tightening events. An automatic key lock prevents accidental changes to the settings. A PIN code can be entered to prevent unauthorised changes to the settings. The wrench offers a very wide measurement range. Size 100-650 - A rotational angle module is available (on request) for rotational angle measurement. With reversible plug-in ratchet. Size 800; 1000 - Plug-in ratchet with push-through square. Supplied with: Sturdy plastic box (sizes 100 and 200) and sturdy metal box (from size 400) with 2 batteries (1.5 V mignon / AA / LR6). Optional extras: USB adapter cable with software No. 655292. i Easy input of reference: For plug-in heads with a different reference dimension, simply input the new dimension. No laborious calculations with formulae QuickRelease: Secure engagement and quick change of plug-in heads. i Robust, compact body. i Tolerance limit settings, shown clearly on a display with colour changes. i Very simple operation; complete use and menu selection with 4 buttons. i 2-component handle, resistant to oils, greases, fuels, brake fluids, and Skydrol. i USB interface for exporting the data MANOSKO IMOflt 655290 maximum torque N-m 100 200 j 400 650 800 1 iooo 1 Electromechanical torque wrench 446.49 477.18 697.95 (855.36) (1529.55) (1808.73) overall length mm 500 594 738 920 1253 1437 Measuring range N-m 10-100 20-200 40-400 65 - 650 80-800 100-1000 Adjustment resolution N-m 0.2 0.5 1 1 1 1 Display resolution N-m 0.1 Weight kg 1.23 1.66 2.23 3.77 6.49 6.91 Square drive inch 1/2 1/2 3/4 3/4 3/4 3/4 Socket for plug-in head mm 9X12 14x18 14x18 14x18 22x28 22x28 525
