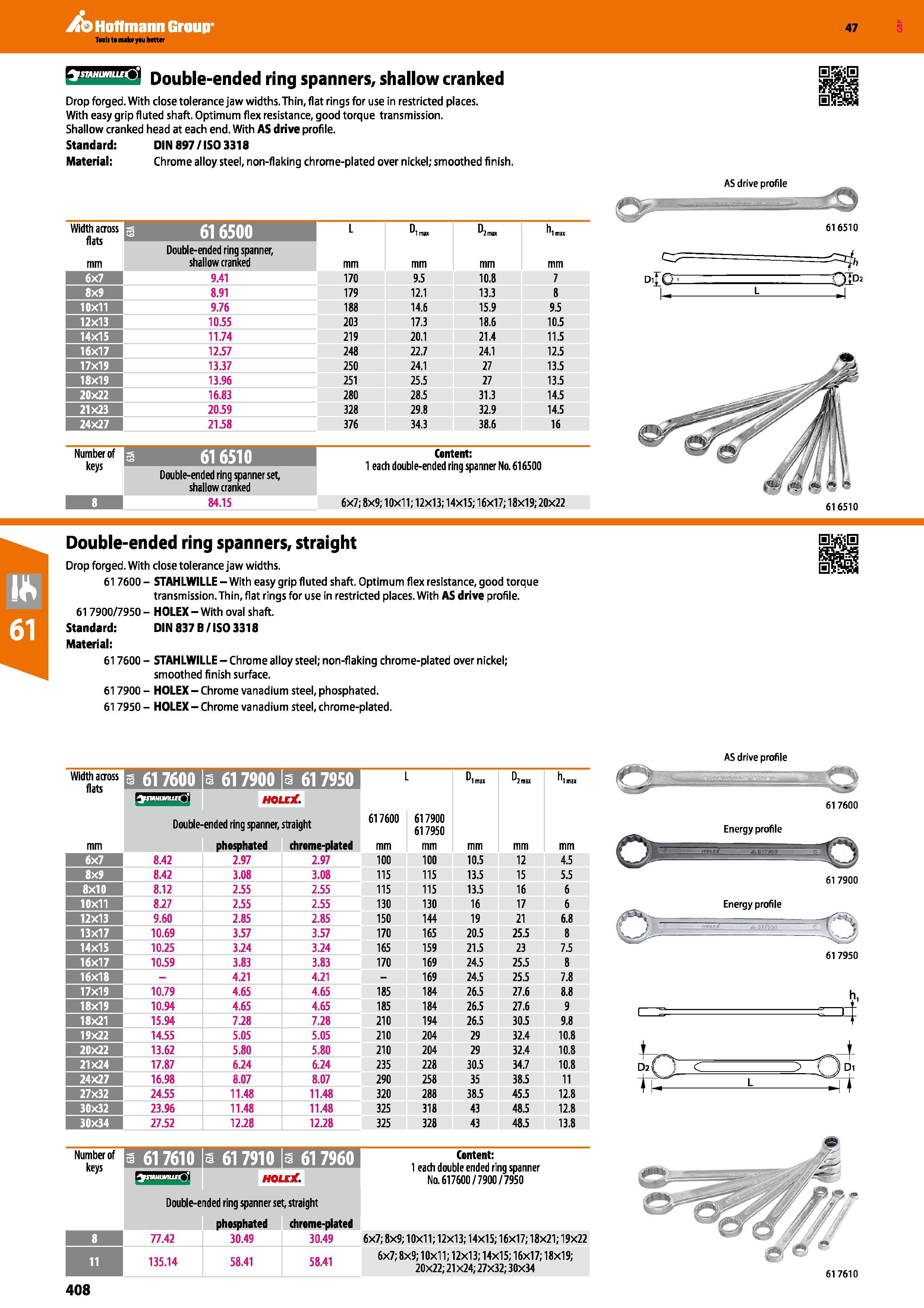

Hoffmann Group 47 Double-ended ring spanners, shallow cranked Drop forged. With close tolerance jaw widths. Thin, flat rings for use in restricted places. With easy grip fluted shaft. Optimum flex resistance, good torque transmission. Shallow cranked head at each end. With AS drive profile. Standard: DIN 897 /ISO 3318 Material: Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish. AS drive profile Width across flats mm s 616500 L Dlm 2 mm Imax Double-ended ring spanner, shallow cranked mm 6x7 9.41 170 9.5 10.8 7 8x9 8.91 179 12.1 13.3 8 10x11 9.76 188 14.6 15.9 9.5 12x13 10.55 203 17.3 18.6 10.5 14x15 11.74 219 20.1 21.4 11.5 16x17 12.57 248 22.7 24.1 12.5 17x19 13.37 250 24.1 27 13.5 18x19 13.96 251 25.5 27 13.5 20x22 16.83 280 28.5 31.3 14.5 21x23 20.59 328 29.8 32.9 14.5 24x27 21.58 376 34.3 38.6 16 616510 Numberof 616510 Content: 1 each double-ended ring spanner No. 616500 Keys Double-ended ring spanner set, shallow cranked i 8 Wm 84.15 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22 diIGh =0ID2 Double-ended ring spanners, straight Drop forged. With close tolerance jaw widths. 61 7600 - STAHLWILLE - With easy grip fluted shaft. Optimum flex resistance, good torque transmission. Thin, flat rings for use in restricted places. With AS drive profile. 61 7900/7950 - HOLEX - With oval shaft. Standard: DIN 837 B/ ISO 3318 Material: 617600 - STAHLWILLE - Chrome alloy steel; non-flaking chrome-plated over nickel; smoothed finish surface. 617900 - HOLEX - Chrome vanadium steel, phosphated. 617950 - HOLEX - Chrome vanadium steel, chrome-plated. Width across flats s 617600 617900 s 617950 L 2 max HOLE . Double-ended ring spanner, straight 617600 617900 617950 mm phosphated chrome-plated mm 6x7 8.42 2.97 2.97 100 100 10.5 12 4.5 8x9 8.42 3.08 3.08 115 115 13.5 15 5.5 8x10 8.12 2.55 2.55 115 115 13.5 16 6 10x11 8.27 2.55 2.55 130 130 16 17 6 12X13 9.60 2.85 2.85 150 144 19 21 6.8 13x17 10.69 3.57 3.57 170 165 20.5 25.5 8 14x15 10.25 3.24 3.24 165 159 21.5 23 7.5 16x17 10.59 3.83 3.83 170 169 24.5 25.5 8 16x18 - 4.21 4.21 - 169 24.5 25.5 7.8 17x19 10.79 4.65 4.65 185 184 26.5 27.6 8.8 18x19 10.94 4.65 4.65 185 184 26.5 27.6 9 18x21 15.94 7.28 7.28 210 194 26.5 30.5 9.8 19x22 14.55 5.05 5.05 210 204 29 32.4 10.8 20X22 13.62 5.80 5.80 210 204 29 32.4 10.8 21X24 17.87 6.24 6.24 235 228 30.5 34.7 10.8 24X27 16.98 8.07 8.07 290 258 35 38.5 11 27x32 24.55 11.48 11.48 320 288 38.5 45.5 12.8 30x32 23.96 11.48 11.48 325 318 43 48.5 12.8 30x34 27.52 12.28 12.28 325 328 43 48.5 13.8 AS drive profile Energy profile Energy profile 617600 61 7900 61 7950 W- 02 ( ) C s-t- Numberof keys s 617610 s 61 7910 3 61 7960 Content: 1 each double ended ring spanner No. 617600 / 7900 / 7950 HOLE . Double-ended ring spanner set, straight phosphated chrome-plated 8 77.42 30.49 30.49 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x21; 19x22 11 135.14 58.41 58.41 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x19; 20X22; 21X24; 27X32; 30X34 616510 617610 408
