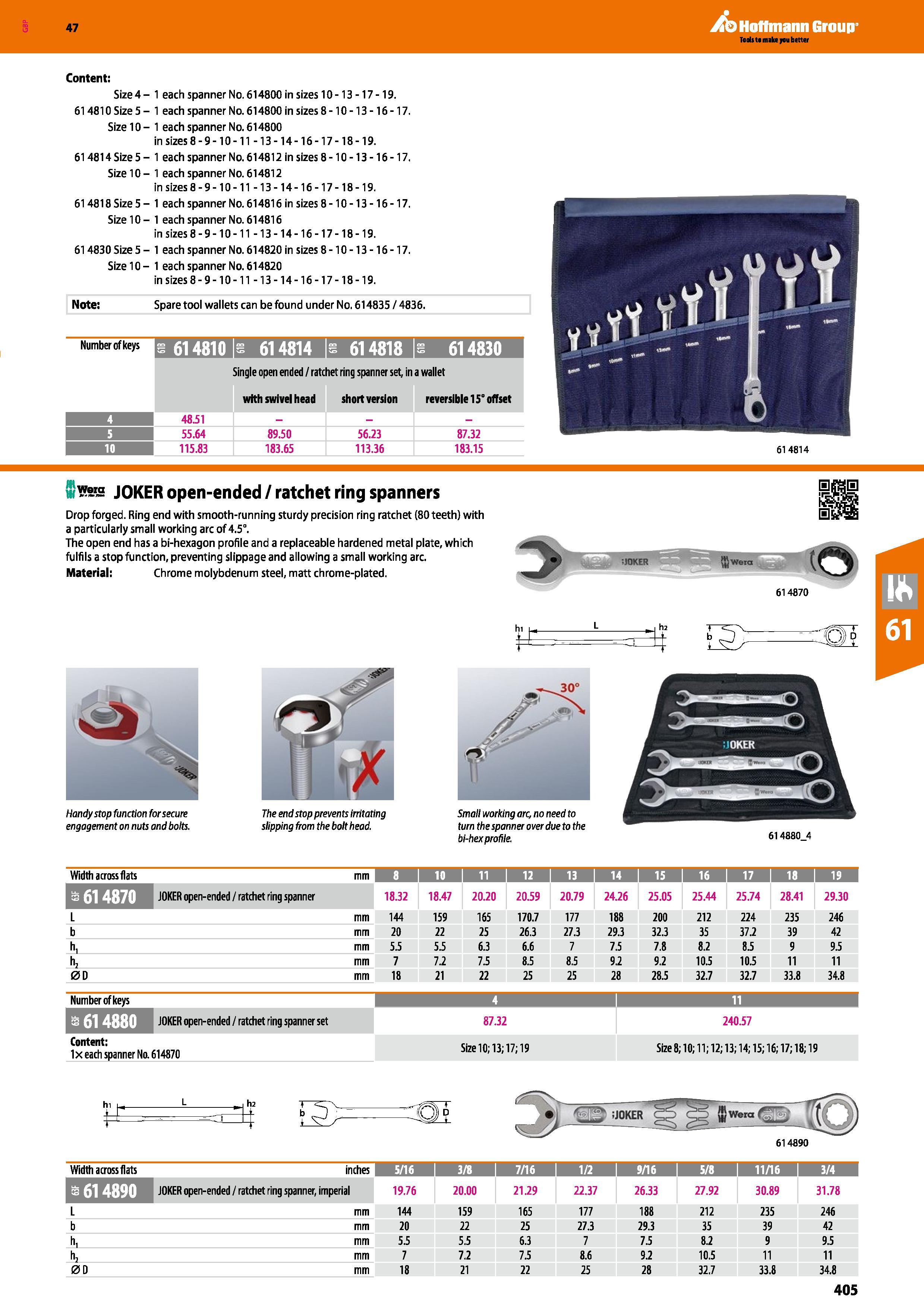

Hoflmann Group Content: Size4- 1 each spanner No. 614800 in sizes 10-13-17-19. 614810 Size 5 - 1 each spanner No. 614800 in sizes 8-10-13 -16-17. Size10- 1 each spanner No. 614800 in sizes 8-9-10-11 -13-14-16-17-18-19. 614814 Size 5 - 1 each spanner No. 614812 in sizes 8-10 -13 -16-17, Size 10- 1 each spanner No. 614812 in sizes 8-9-10-11 -13-14-16-17-18-19. 614818 Size 5 - 1 each spanner No. 614816 in sizes 8-10-13-16-17. Size 10-1 each spanner No. 614816 in sizes 8-9-10-11 -13-14-16-17-18-19. 614830 Size 5 - 1 each spanner No. 614820 in sizes 8-10-13-16-17. Size 10 - 1 each spanner No. 614820 in sizes 8-9-10-11 -13-14-16-17-18-19. Note: Spare tool wallets can be found under No. 614835 / 4836. Number of keys i 614810 614814 Single open ended / ratchet ring spanner set, in a wallet with swivel head short version reversible 15° offset 4 48.51 1 - 1 - 1 5 55.64 89.50 56.23 87.32 10 115.83 183.65 113.36 183.15 JOKER open-ended / ratchet ring spanners Drop forged. Ring end with smooth-running sturdy precision ring ratchet (80 teeth) with a particularly small working arc of 4.5°. The open end has a bi-hexagon profile and a replaceable hardened metal plate, which fulfils a stop function, preventing slippage and allowing a small working arc. Material: Chrome molybdenum steel, matt chrome-plated. 614870 Handy stop function for secure engagement on nuts and bolts. The end stop prevents irritating slipping from the bolt head. Small working arc, no need to turn the spanner over due to the bi-hex profile 614880_4 Width across flats mm 8 I 10 1 11 1 12 1 13 14 1 15 1 16 I 17 I 18 i 19 Li JOKER open-ended / ratchet ring spanner 18.32 18.47 20.20 20.59 20.79 24.26 25.05 25.44 25.74 28.41 29.30 L mm 144 159 165 170.7 177 188 200 212 224 235 246 b mm 20 22 25 26.3 27.3 29.3 32.3 35 37.2 39 42 h, mm 5.5 5.5 6.3 6.6 7 7.5 7.8 8.2 8.5 9 9.5 h2 mm 7 7.2 7.5 8.5 8.5 9.2 9.2 10.5 10.5 11 11 0D mm 18 21 22 25 25 28 28.5 32.7 32.7 33.8 34.8 11 JOKER open-ended / ratchet ring spanner set 87.32 240.57 Content: 1x each spanner No. 614870 Size 10; 13; 17; 19 Size 8; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19 hi 1- L s 'ED ;J0KER c S m w Wera <£3 614890 o Width across flats inches 5/16 3/8 7/16 1 1/2 j 9/16 i 5/8 11/16 3/4 JOKER open-ended / ratchet ring spanner, imperial 19.76 20.00 21.29 22.37 26.33 27.92 30.89 31.78 L mm 144 159 165 177 188 212 235 246 b mm 20 22 25 27.3 29.3 35 39 42 h, mm 5.5 5.5 6.3 7 75 8.2 9 9.5 mm 7 7.2 7.5 8.6 9.2 10.5 11 11 0D mm 18 21 22 25 28 32,7 33.8 34.8 405
