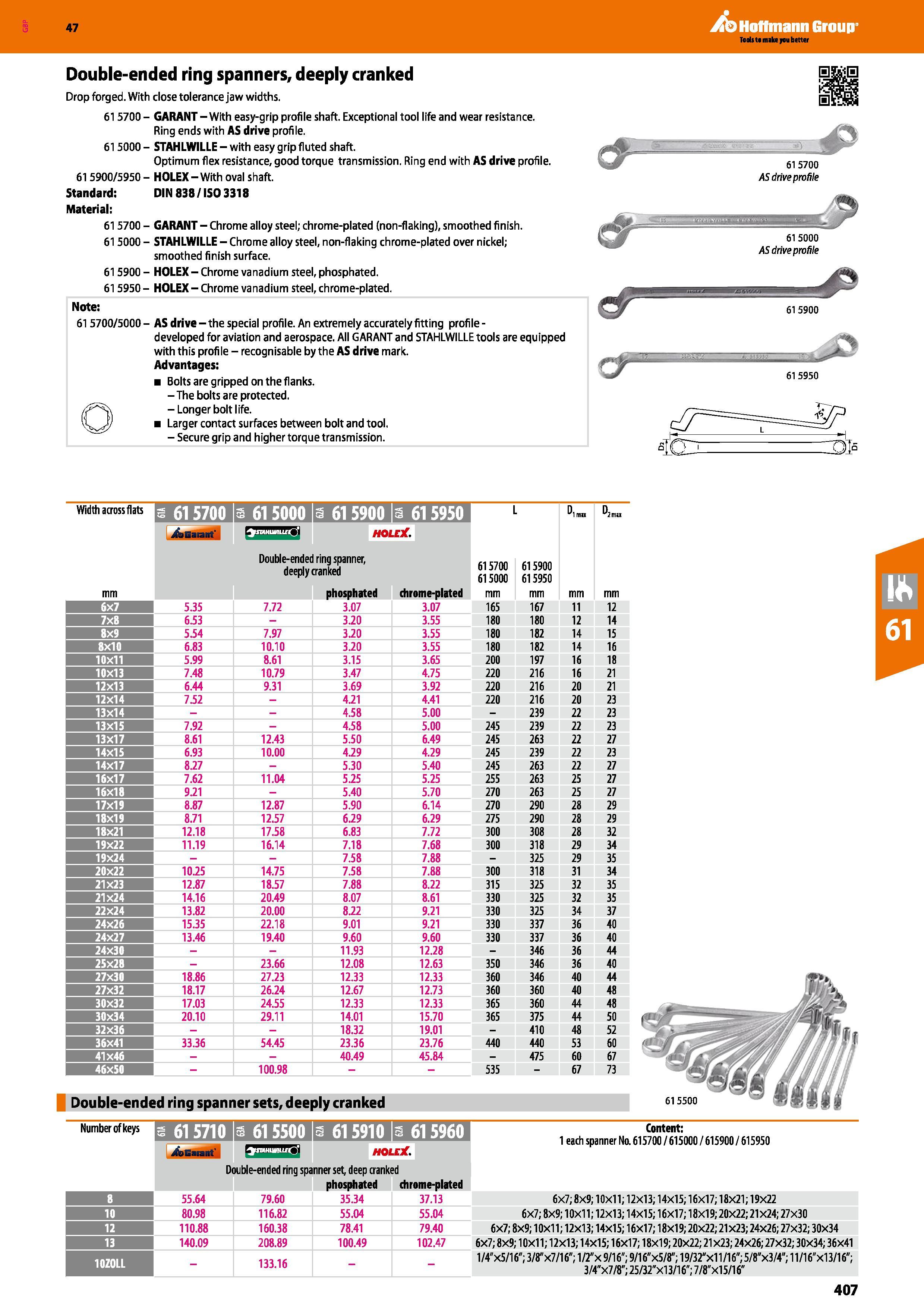

Hoffmann Group 47 Double-ended ring spanners, deeply cranked Drop forged. With close tolerance jaw widths. 615700 - GARANT - With easy-grip profile shaft. Exceptional tool life and wear resistance. Ring ends with AS drive profile. 615000- STAHLWILLE- with easy grip fluted shaft. Optimum flex resistance, good torque transmission. Ring end with AS drive profile. 615900/5950 - HOLEX - With oval shaft. Standard: DIN 838/ISO 3318 Material: 615700 - GARANT - Chrome alloy steel; chrome-plated (non-flaking), smoothed finish. 615000 - STAHLWILLE - Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish surface. 615900 - HOLEX - Chrome vanadium steel, phosphated. 615950 - HOLEX - Chrome vanadium steel, chrome-plated. Note: 61 5700/5000 - AS drive - the special profile. An extremely accurately fitting profile - developed for aviation and aerospace. All GARANT and STAHLWILLE tools are equipped with this profile - recognisable by the AS drive mark. Advantages: Bolts are gripped on the flanks. - The bolts are protected. - Longer bolt life. Larger contact surfaces between bolt and tool. - Secure grip and higher torque transmission. 61 5700 AS drive profile 61 5000 AS drive profile 61 5900 Width across flats mnn 1 L imm 2ma /bCarant' 1 holeX. mm Double-ended ring spanner, deeply cranked phosphated chrome-plated 615700 615000 mm 615900 615950 mm 6x7 5.35 7.72 3.07 3.07 165 167 11 12 7x8 6.53 - 3.20 3.55 180 180 12 14 8x9 5.54 7.97 3.20 3.55 180 182 14 15 8x10 6.83 10.10 3.20 3.55 180 182 14 16 10x11 5.99 8.61 3.15 3.65 200 197 16 18 10x13 7.48 10.79 3.47 4.75 220 216 16 21 12x13 6.44 9.31 3.69 3.92 220 216 20 21 12x14 7.52 - 4.21 4.41 220 216 20 23 13x14 4.58 5.00 - 239 22 23 13x15 7.92 - 4.58 5.00 245 239 22 23 13X17 8.61 12.43 5.50 6.49 245 263 22 27 14x15 6.93 10.00 4.29 4.29 245 239 22 23 14x17 8.27 - 5.30 5.40 245 263 22 27 16x17 7.62 11.04 5.25 5.25 255 263 25 27 16x18 9.21 - 5.40 5.70 270 263 25 27 17x19 8.87 12.87 5.90 6.14 270 290 28 29 18x19 8.71 12.57 6.29 6.29 275 290 28 29 18x21 12.18 17.58 6.83 7.72 300 308 28 32 19x22 11.19 16.14 7.18 7.68 300 318 29 34 19x24 7.58 7.88 - 325 29 35 20x22 10.25 14.75 7.58 7.88 300 318 31 34 21x23 12.87 18.57 7.88 8.22 315 325 32 35 21x24 14.16 20.49 8.07 8.61 330 325 32 35 22X24 13.82 20.00 8.22 9.21 330 325 34 37 24x26 15.35 22.18 9.01 9.21 330 337 36 40 24X27 13.46 19.40 9.60 9.60 330 337 36 40 24X30 11.93 12.28 - 346 36 44 25x28 - 23.66 12.08 12.63 350 346 36 40 27x30 18.86 27.23 12.33 12.33 360 346 40 44 27x32 18.17 26.24 12.67 12.73 360 360 40 48 30x32 17.03 24.55 12.33 12.33 365 360 44 48 30x34 20.10 29.11 14.01 15.70 365 375 44 50 32x36 _ _ 18.32 19.01 _ 410 48 52 36x41 33.36 54.45 23.36 23.76 440 440 53 60 41x46 40.49 45.84 - 475 60 67 46x50 - 100.98 535 - 67 73 Double-ended ring spanner sets, deeply cranked 61 5500 Number of keys s 615710 a 615500 a 615910 a 615960 Content: 1 each spanner No. 615700 / 615000 / 615900 / 615950 HOLCX. Double-ended ring spanner set, deep cranked phosphated chrome-plated 8 55.64 79.60 35.34 37.13 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x21; 19x22 10 80.98 116.82 55.04 55.04 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22; 21x24; 27x30 12 110.88 160.38 78.41 79.40 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22; 21x23; 24x26; 27x32; 30x34 13 140.09 208.89 100.49 102.47 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22; 21x23; 24x26; 27x32; 30x34; 36x41 10Z0LL - 133.16 1/4"x5/16"; 3/8"x7/16"; 1/2"x 9/16"; 9/16"x5/8"; 19/32"x11/16"; 5/8"x3/4"; 11 /16"x13/16"; 3/4"x7/8"; 25/32"x13/16"; 7/8"x15/16" 407
