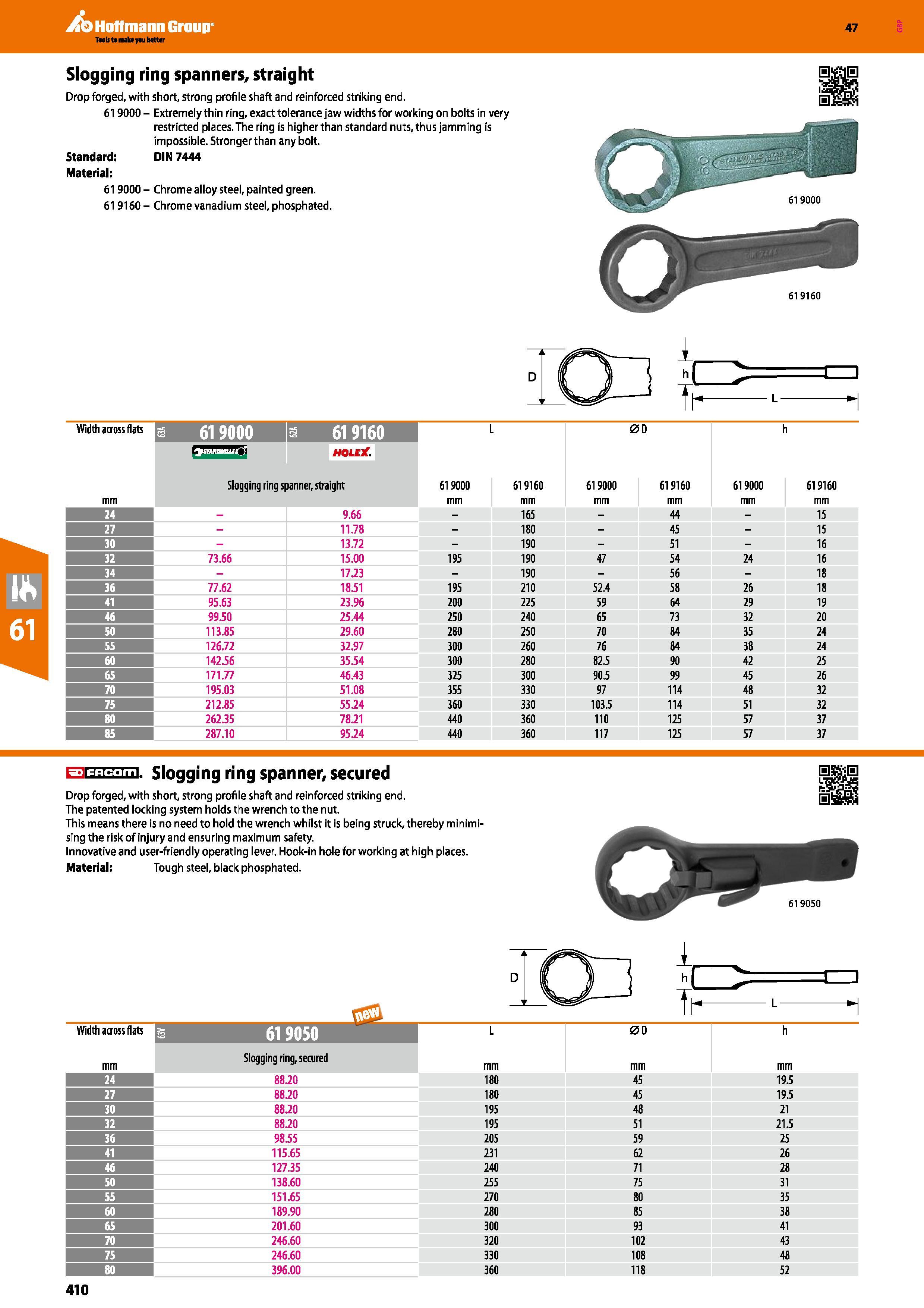

Hoffmann Group 47 Slogging ring spanners, straight Drop forged, with short, strong profile shaft and reinforced striking end. 619000 - Extremely thin ring, exact tolerance jaw widths for working on bolts in very restricted places. The ring is higher than standard nuts, thus jamming is impossible. Stronger than any bolt. Standard: DIN 7444 Material: 619000 - Chrome alloy steel, painted green. 619160 - Chrome vanadium steel, phosphated. Width across flats 619160 L 0D h HOLE/. mm Slogging ring spanner, straight 61 9000 mm 619160 mm 619000 mm 619160 mm 619000 mm 619160 mm 24 - 9.66 - 165 - 44 - 15 27 - 11.78 - 180 - 45 - 15 30 - 13.72 - 190 - 51 - 16 32 73.66 15.00 195 190 47 54 24 16 34 - 17.23 - 190 - 56 - 18 36 77.62 18.51 195 210 52.4 58 26 18 41 95.63 23.96 200 225 59 64 29 19 46 99.50 25.44 250 240 65 73 32 20 50 113.85 29.60 280 250 70 84 35 24 55 126.72 32.97 300 260 76 84 38 24 60 142.56 35.54 300 280 82.5 90 42 25 65 171.77 46.43 325 300 90.5 99 45 26 70 195.03 51.08 355 330 97 114 32 75 212.85 55.24 360 330 103.5 114 51 32 80 262.35 78.21 440 360 110 125 57 37 85 287.10 95.24 440 360 117 125 57 37 E3ld:L-Niil. Slogging ring spanner, secured Drop forged, with short, strong profile shaft and reinforced striking end. The patented locking system holds the wrench to the nut. This means there is no need to hold the wrench whilst it is being struck, thereby minimising the risk of injury and ensuring maximum safety. Innovative and user-friendly operating lever. Hook-in hole for working at high places. Material: Tough steel, black phosphated. 61 9050 an: in “ h Width across flats Is 619050 L 00 h mm Slogging ring, secured mm 24 88.20 180 45 19.5 27 88.20 180 45 19.5 30 88.20 195 48 21 32 88.20 195 51 21.5 36 98.55 205 59 25 41 115.65 231 62 26 46 127.35 240 71 28 50 138.60 255 75 31 55 151.65 270 80 35 60 189.90 280 85 38 65 201.60 300 93 41 70 246.60 320 102 43 75 246.60 330 108 48 80 396.00 360 118 52 410
