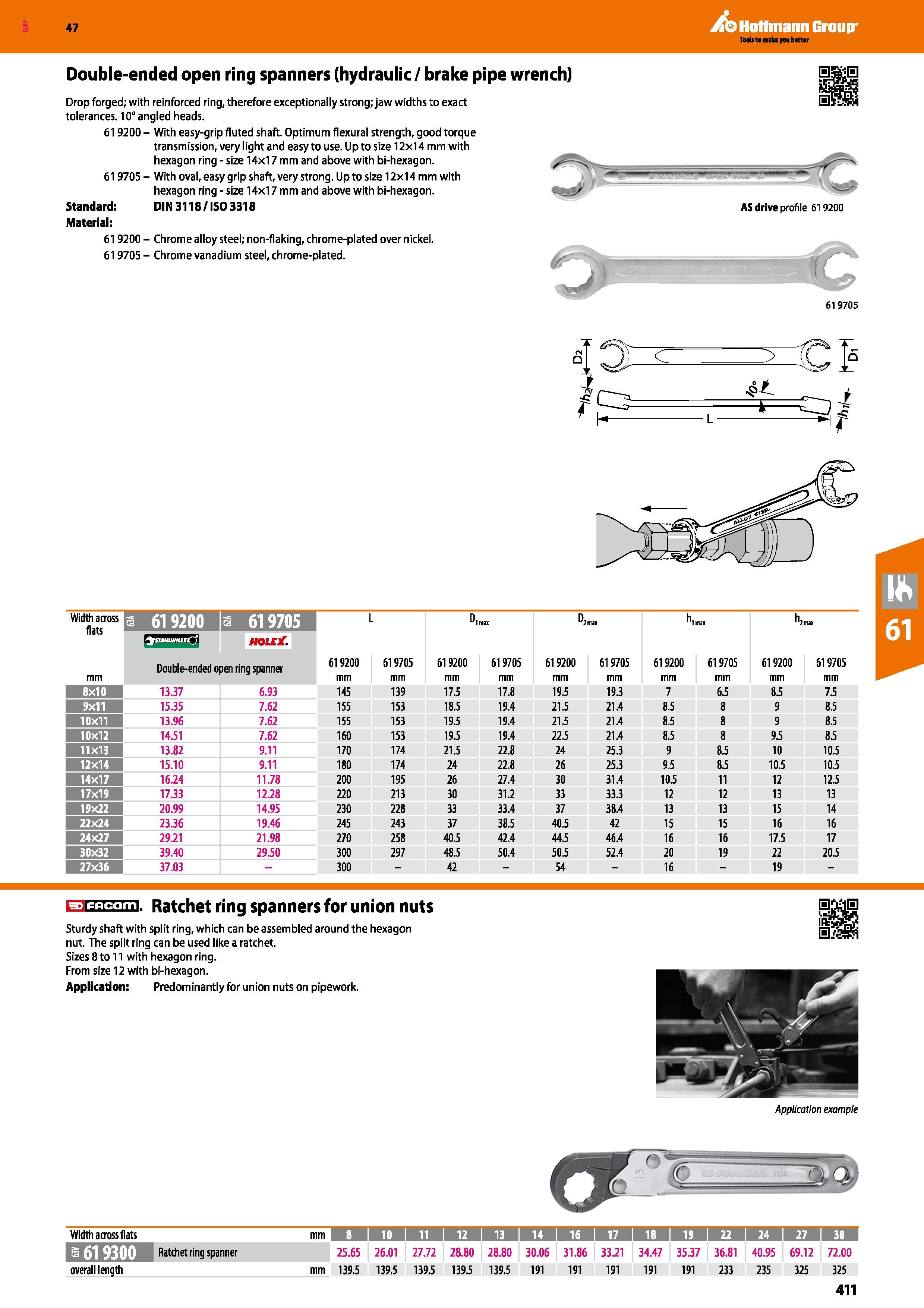

Hoffmann Group 47 Double-ended open ring spanners (hydraulic / brake pipe wrench) Drop forged; with reinforced ring, therefore exceptionally strong; jaw widths to exact tolerances. 10° angled heads. 619200 - With easy-grip fluted shaft. Optimum flexural strength, good torque transmission, very light and easy to use. Up to size 12x14 mm with hexagon ring - size 14x17 mm and above with bi-hexagon. 619705 - With oval, easy grip shaft, very strong. Up to size 12x14 mm with hexagon ring - size 14x17 mm and above with bi-hexagon. Standard: DIN3118/IS0 3318 Material: 619200 - Chrome alloy steel; non-flaking, chrome-plated over nickel. 619705 - Chrome vanadium steel, chrome-plated. AS drive profile 619200 619705 C Width across flats la 619200 a 619705 L Imix 2 mix Imax 2 mix mu/. mm Double-ended open ring spanner 619200 mm 619705 mm 619200 mm 619705 mm 619200 mm 619705 mm 619200 mm 619705 mm 619200 mm 619705 mm 8x10 13.37 6.93 145 139 17.5 17.8 19.5 19.3 7 6.5 8.5 7.5 9x11 15.35 7.62 155 153 18.5 19.4 21.5 21.4 8.5 8 9 8.5 10x11 13.96 7.62 155 153 19.5 19.4 21.5 21.4 8.5 8 9 8.5 10x12 14.51 7.62 160 153 19.5 19.4 22.5 21.4 8.5 8 9.5 8.5 11x13 13.82 9.11 170 174 21.5 22.8 24 25.3 9 8.5 10 lOi 12X14 15.10 9.11 180 174 24 22.8 26 25.3 9.5 8.5 10.5 10.5 14x17 16.24 11.78 200 195 26 27.4 30 31.4 10.5 11 12 12.5 17x19 17.33 12.28 220 213 30 31.2 33 33.3 12 12 13 13 19x22 20.99 14.95 230 228 33 33.4 37 38.4 13 13 15 14 22X24 23.36 19.46 245 243 37 38.5 40.5 42 15 15 16 16 24X27 29.21 21.98 270 258 40.5 42.4 44.5 46.4 16 16 17.5 17 30X32 39.40 29.50 300 297 48.5 50.4 50.5 52.4 20 19 22 20J 27x36 37.03 - 300 - 42 - 54 - 16 - 19 - Emm. Ratchet ring spanners for union nuts Sturdy shaft with split ring, which can be assembled around the hexagon nut. The split ring can be used like a ratchet. Sizes 8 to 11 with hexagon ring. From size 12 with bi-hexagon. Application: Predominantly for union nuts on pipework. Application example Width across flats Ratchet ring spanner overall length a a- 25.65 26.01 27.72 28.80 28.80 30.06 31.86 33.21 34.47 35.37 36.81 40.95 69.12 72.00 mm 139.5 139.5 139.5 139.5 139.5 191 191 191 191 191 233 235 325 325 411
