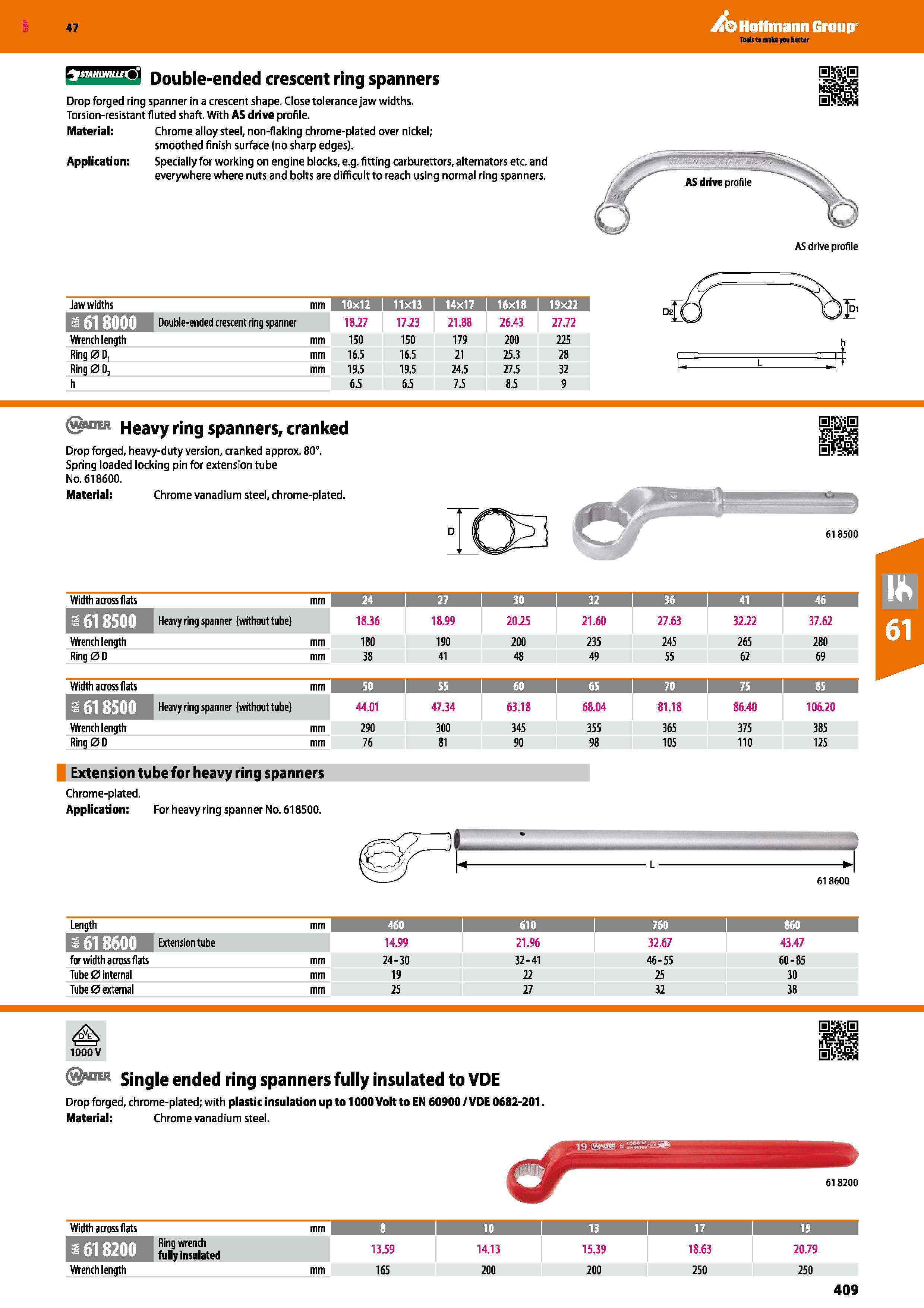

409 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.409

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 409 0409 ENG Lab2u

Hoffmann Group 47 Double-ended crescent ring spanners Drop forged ring spanner in a crescent shape. Close tolerance jaw widths. Torsion-resistant fluted shaft. With AS drive profile. Material: Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish surface (no sharp edges). Application: Specially for working on engine blocks, e.g. fitting carburettors, alternators etc. and everywhere where nuts and bolts are difficult to reach using normal ring spanners. Jaw widths mm 10x12 1 11x13 1 14x17 1 16x18 I 19x22 I N 618000 Double-ended crescent ring spanner 18.27 17.23 21.88 26.43 27.72 Wrench length mm 150 150 179 200 225 Ring 0 D, mm 16.5 16.5 21 25.3 28 Ring 0 D, mm 19.5 19.5 24.5 27.5 32 h 6.5 6.5 7.5 8.5 9 (wader Heavy ring spanners, cranked Drop forged, heavy-duty version, cranked approx. 80°. Spring loaded locking pin for extension tube No. 618600. Material: Chrome vanadium steel, chrome-plated. Wrench length Ring 0 D mm 180 38 190 41 200 48 235 49 245 55 Extension tube for heavy ring spanners Chrome-plated. Application: For heavy ring spanner No. 618500. 265 62 SpiS Bl 618500 Width across flats mm 24 I 27 i 30 I 32 i 36 I 41 46 i 618500 Heavy ring spanner (without tube) 18.36 18.99 20.25 21.60 27.63 32.22 37.62 Width across flats mm 50 I 55 i 60 I 65 70 I 75 I 5 1618500 Heavy ring spanner (without tube) 44.01 47.34 63.18 68.04 81.18 86.40 106.20 Wrench length mm 290 300 345 355 365 375 385 Ring 0 D mm 76 81 90 98 105 110 125 61 8600 Length mm 460 i 610 i 760 I 860 S 11618600 14.99 21.96 32.67 43.47 for width across flats mm 24-30 32-41 46-55 60-85 Tube 0 internal mm 19 22 25 30 Tube 0 external mm 25 27 32 38 /D E\ 1000 V ader single ended ring spanners fully insulated to VDE Drop forged, chrome-plated; with plastic insulation up to 1000 Volt to EN 60900 / VDE 0682-201. Material: Chrome vanadium steel. 618200 Width across flats mm 8 10 i 13 I 17 I 19 i 1618200 Ring wrench fully insulated 13.59 14.13 15.39 18.63 20.79 Wrench length 165 200 200 250 250 409
