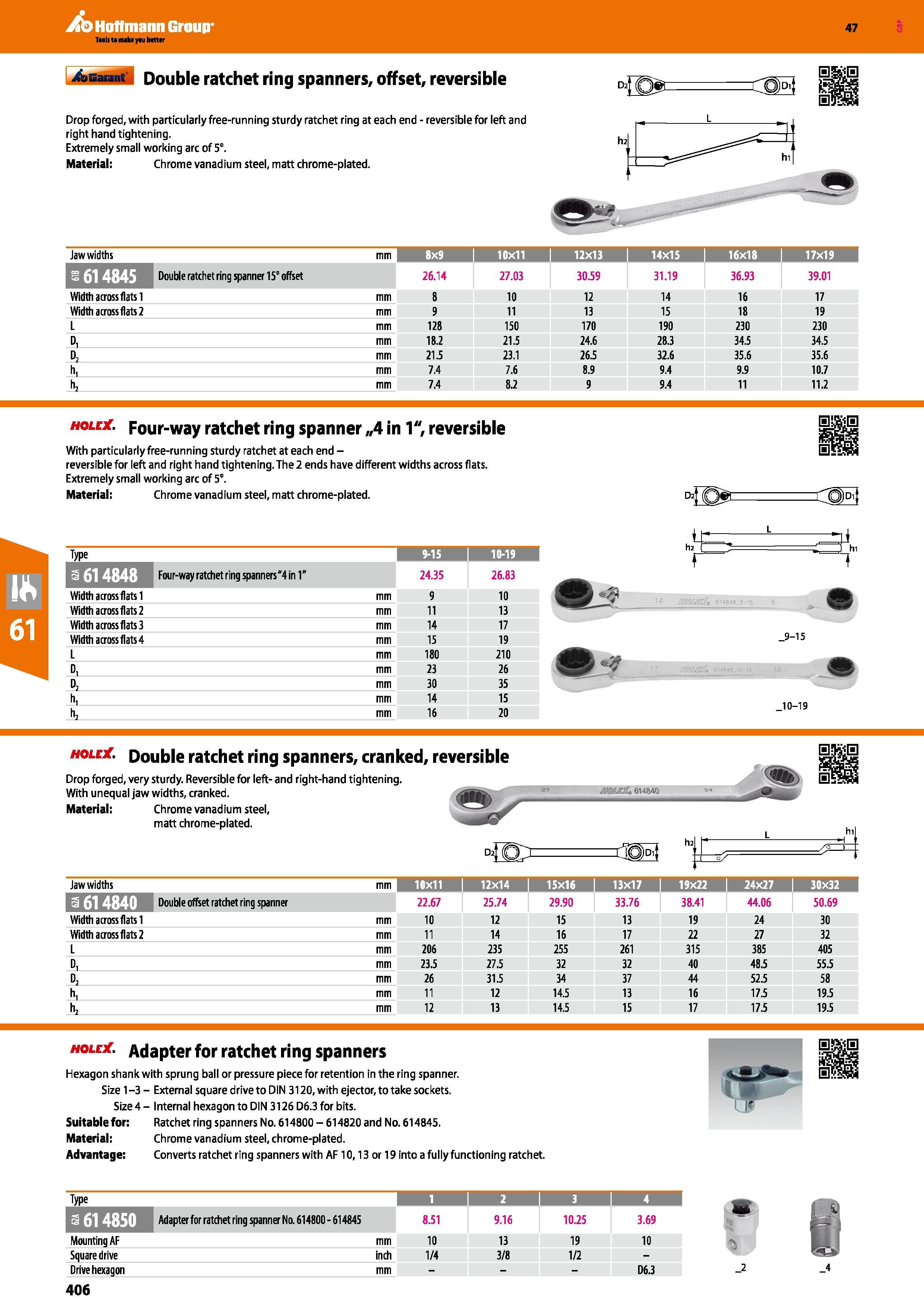

Hoffmann Group 47 Double ratchet ring spanners, offset, reversible Drop forged, with particularly free-running sturdy ratchet ring at each end - reversible for left and right hand tightening. Extremely small working arc of 5°. Material: Chrome vanadium steel, matt chrome-plated. Jaw widths mm 8x9 10x11 1 12x13 j 14x15 i 16x18 1 17x19 1 Double ratchet ring spanner 15° offset 26.14 27.03 30.59 31.19 36.93 39.01 Width across flats 1 mm 8 10 12 14 16 17 Width across flats 2 mm 9 11 13 15 18 19 L mm 128 150 170 190 230 230 D, mm 18.2 21.5 24.6 28.3 34.5 34.5 mm 21J 23.1 26.5 32.6 35.6 35.6 h, mm 7.4 7.6 8.9 9.4 9.9 10.7 mm 7.4 8.2 9 9.4 11 11.2 hole . Four-way ratchet ring spanner „4 in 1", reversible With particularly free-running sturdy ratchet at each end - reversible for left and right hand tightening. The 2 ends have different widths across flats. Extremely small working arc of 5°. Material: Chrome vanadium steel, matt chrome-plated. Type 1 9-15 i 10-19 1 Four-way ratchet ring spanners"4 in 1” 24.35 26.83 Width across flats 1 mm 9 10 Width across flats 2 mm 11 13 Width across flats 3 mm 14 17 Width across flats 4 mm 15 19 L mm 180 210 0, mm 23 26 o2 mm 30 35 h, mm 14 15 mm 16 20 r i _9-15 _10-19 hole . Double ratchet ring spanners, cranked, reversible Drop forged, very sturdy. Reversible for left- and right-hand tightening. With unequal jaw widths, cranked. Material: Chrome vanadium steel, matt chrome-plated. Jaw widths mm 10x11 i 12X14 j 15x16 I 13x17 19X22 i 24X27 i 30x32 1 Double offset ratchet ring spanner 22.67 25.74 29.90 33.76 38.41 44.06 50.69 Width across flats 1 mm 10 12 15 13 19 24 30 Width across flats 2 mm 11 14 16 17 22 27 32 L mm 206 235 255 261 315 385 405 n, mm 23.5 27.5 32 32 40 48.5 55.5 2 mm 26 31.5 34 37 44 52.5 58 h, mm 11 12 14.5 13 16 17 j 19.5 hi mm 12 13 14.5 15 17 17 J 19.5 hole . Adapter for ratchet ring spanners Hexagon shankwith sprung ball or pressure piece for retention in the ring spanner. Size 1 -3 - External square drive to DIN 3120, with ejector, to take sockets. Size 4 - Internal hexagon to DIN 3126 D6.3 for bits. Suitable for: Ratchet ring spanners No. 614800 - 614820 and No. 614845. Material: Chrome vanadium steel, chrome-plated. Advantage: Converts ratchet ring spanners with AF10,13 or 19 into a fully functioning ratchet. Type I 1 I 2 I 3 4 I 614850 Adapter for ratchet ring spanner No. 614800 - 614845 8.51 9.16 10.25 3.69 Mounting AF mm 10 13 19 10 Square drive inch 1/4 3/8 1/2 - Drive hexagon mm D6.3 406
