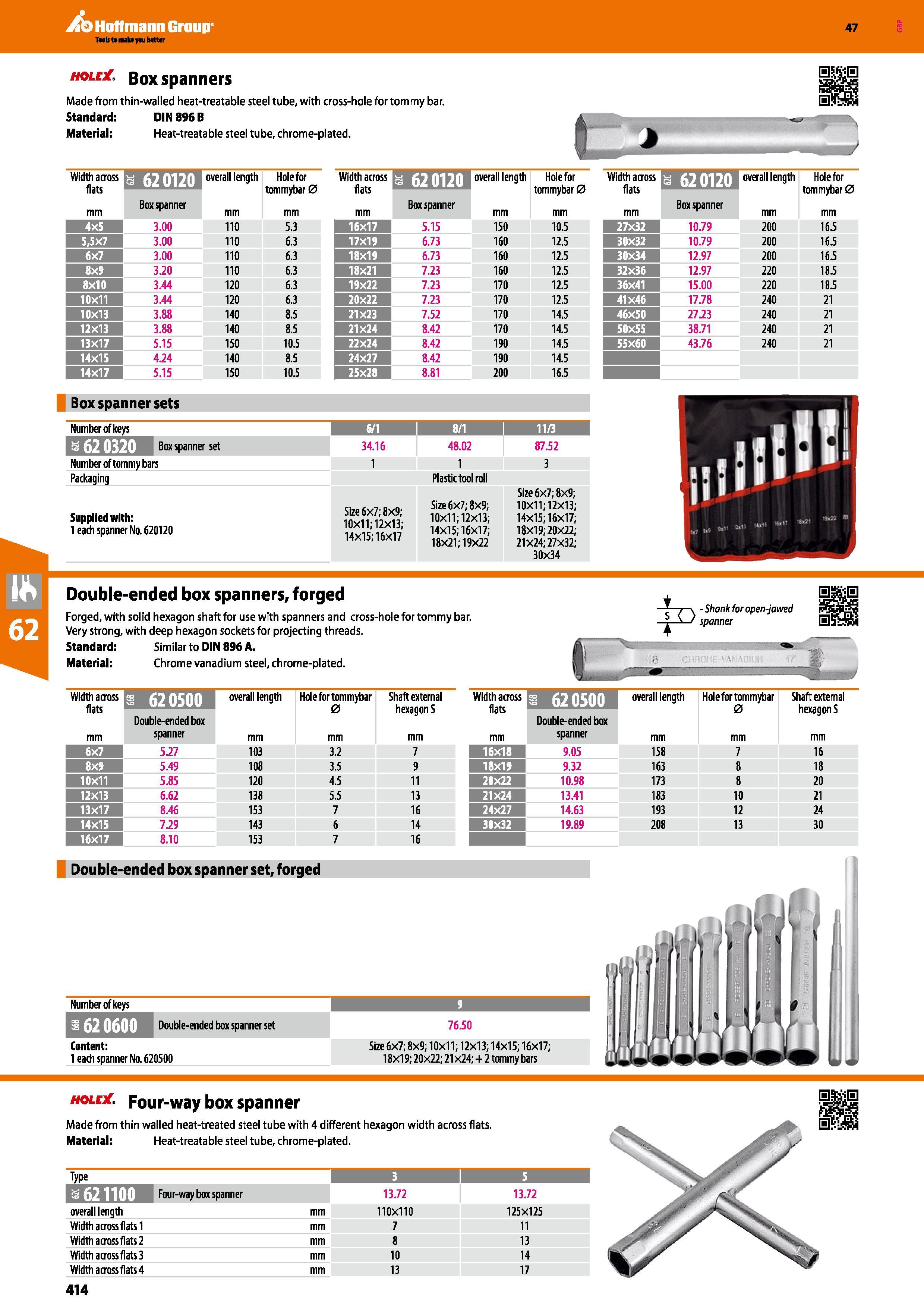

Hoffmann Group 47 holoC. Box spanners Made from thin-walled heat-treatable steel tube, with cross-hole for tommy bar. Standard: DIN 896 B Material: Heat-treatable steel tube, chrome-plated. Width across flats mm s 620120 overall length Hole for tommybar 0 mm Width across flats mm s 620120 overall length Hole for tommybar 0 mm Width across flats mm a 620120 overall length Hole for tommybar 0 mm Box spanner mm Box spanner mm Box spanner mm 4x5 3.00 110 5.3 16x17 5.15 150 10.5 27X32 10.79 200 16.5 5,5x7 3.00 110 6.3 17x19 6.73 160 12.5 30x32 10.79 200 16 5 6x7 3.00 110 6.3 18x19 6.73 160 12.5 30x34 12.97 200 16.5 8x9 3.20 110 6.3 18x21 7.23 160 12.5 32x36 12.97 220 18 J 8x10 3.44 120 6.3 19x22 7.23 170 12.5 36x41 15.00 220 18 J 10x11 3.44 120 6.3 20x22 7.23 170 12.5 41x46 17.78 240 21 10x13 3.88 140 8.5 21x23 7.52 170 14.5 46x50 27.23 240 21 12x13 3.88 140 8.5 21X24 8.42 170 14.5 50x55 38.71 240 21 13x17 5.15 150 10.5 22X24 8.42 190 14.5 55x60 43.76 240 21 14x15 4.24 140 8.5 24x27 8.42 190 14.5 14x17 5.15 150 10.5 25x28 8.81 200 16.5 Box spanner sets Number of keys 6/1 8/1 11/3 a 62 0320 Box spanner set 34.16 48.02 87.52 Number of tommy bars 1 1 3 Packaging Plastic tool roll Supplied with: 1 each spanner No. 620120 Size 6x7; 8x9; 10x11; 12x13; 14x15; 16x17 Size 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x21; 19x22 Size 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22; 21x24; 27x32; 30x34 Double-ended box spanners, forged Forged, with solid hexagon shaft for use with spanners and cross-hole for tommy bar. Very strong, with deep hexagon sockets for projecting threads. Standard: Similar to DIN 896 A. Material: Chrome vanadium steel, chrome-plated. -j-\ -Shank for open-jawed \ / < spanner Width across flats 620500 overall length Hole for tommybar 0 Shaft external hexagon S Width across flats E ,T IWIIIM overall length Hole for tommybar 0 Shaft external hexagonS Double-ended box Double-ended bon mm spanner mm spanner mm 6x7 5.27 103 3.2 7 16x18 9.05 158 7 16 8x9 5.49 108 3.5 9 18x19 9.32 163 8 18 10x11 5.85 120 4.5 11 20x22 10.98 173 8 20 12X13 6.62 138 5.5 13 21X24 13.41 183 10 21 13x17 8.46 153 7 16 24x27 14.63 193 12 24 14x15 7.29 143 6 14 30x32 19.89 208 13 30 16x17 8.10 153 7 16 Double-ended box spanner set, forged 62 0600 Double-ended box spanner set 76.50 Content: leach spanner No. 620500 Size 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22; 21 x24; + 2 tommy bars hole . Four-way box spanner Made from thin walled heat-treated steel tube with 4 different hexagon width across flats. Material: Heat-treatable steel tube, chrome-plated. Type 3 1 5 gfiTKIl'W Four-way box spanner 13.72 13.72 overall length mm 110x110 125X125 Width across flats 1 mm 7 11 Width across flats 2 mm 8 13 Width across flats 3 mm 10 14 Width across flats 4 mm 13 17 414
