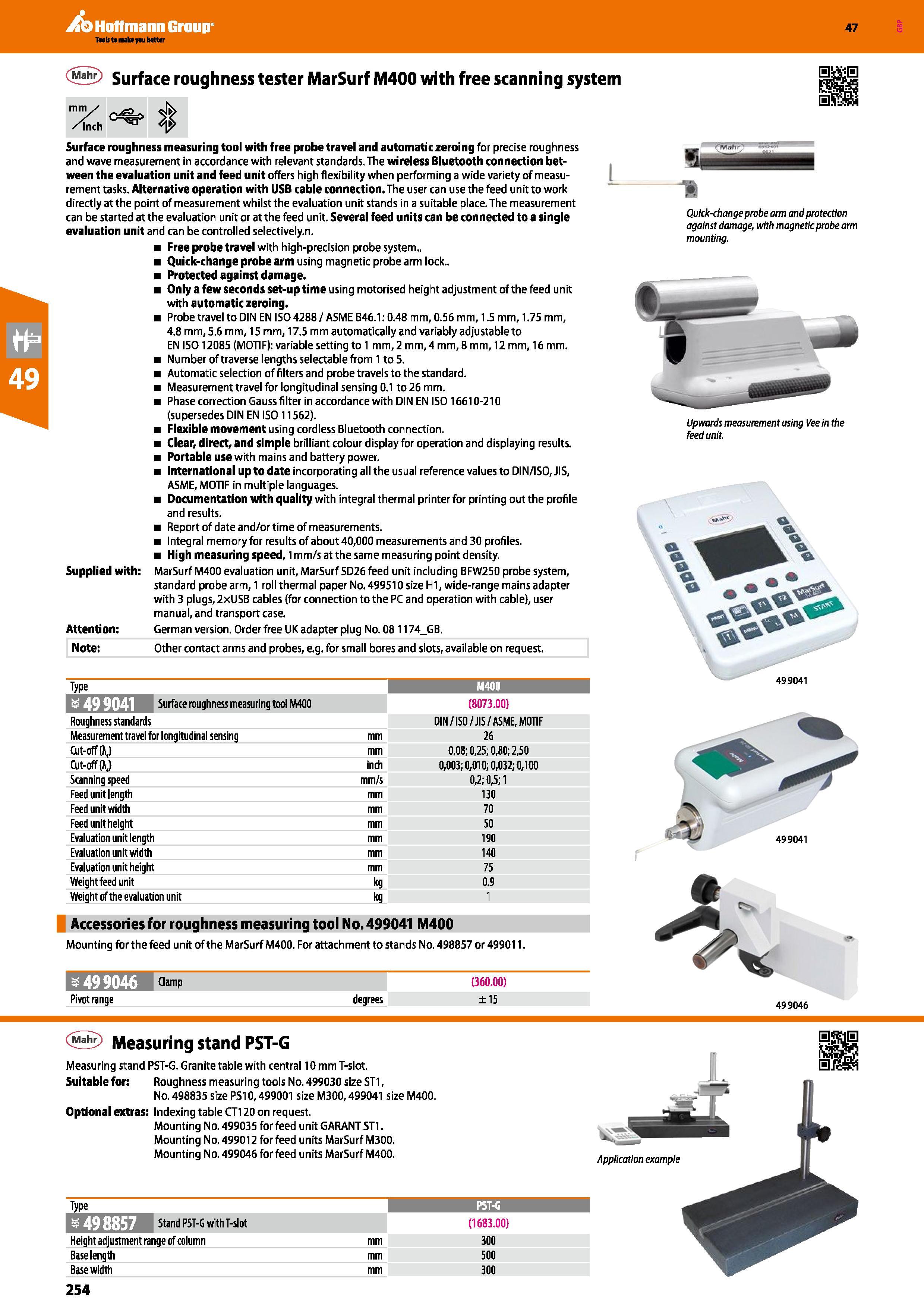

Hoffmann Group 47 Surface roughness tester MarSurf M400 with free scanning system Surface roughness measuring tool with free probe travel and automatic zeroing for precise roughness and wave measurement in accordance with relevant standards. The wireless Bluetooth connection between the evaluation unit and feed unit offers high flexibility when performing a wide variety of measurement tasks. Alternative operation with USB cable connection. The user can use the feed unit to work directly at the point of measurement whilst the evaluation unit stands in a suitable place. The measurement can be started at the evaluation unit or at the feed unit. Several feed units can be connected to a single evaluation unit and can be controlled selectively.n. Free probe travel with high-precision probe system.. Quick-change probe arm using magnetic probe arm lock.. Protected against damage. Only a few seconds set-up time using motorised height adjustment of the feed unit with automatic zeroing. Probe travel to DIN EN ISO 4288 / ASME B46.1:0.48 mm, 0.56 mm, 1.5 mm, 1.75 mm, 4.8 mm, 5.6 mm, 15 mm, 17.5 mm automatically and variably adjustable to EN IS012085 (MOTIF): variable setting to 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm. Number of traverse lengths selectable from 1 to 5. Automatic selection of filters and probe travels to the standard. Measurement travel for longitudinal sensing 0.1 to 26 mm. Phase correction Gauss filter in accordance with DIN EN ISO 16610-210 (supersedes DIN EN ISO 11562). Flexible movement using cordless Bluetooth connection. Clear, direct, and simple brilliant colour display for operation and displaying results. Portable use with mains and battery power. International up to date incorporating all the usual reference values to DIN/ISO, JIS, ASME, MOTIF in multiple languages. Documentation with quality with integral thermal printer for printing out the profile and results. Report of date and/or time of measurements. Integral memory for results of about 40,000 measurements and 30 profiles. High measuring speed, 1 mm/s at the same measuring point density. MarSurf M400 evaluation unit, MarSurf SD26 feed unit including BFW250 probe system, standard probe arm, 1 roll thermal paper No. 499510 size H1, wide-range mains adapter with 3 plugs, 2xUSB cables (for connection to the PC and operation with cable), user manual, and transport case. German version. Order free UK adapter plug No. 081174_GB. Other contact arms and probes, e.g. for small bores and slots, available on request. Quick-change probe arm and protection against damage, with magnetic probe arm mounting. Upwards measurement using Veein the feed unit. Supplied with: Attention: Note: Type 499041 Surface roughness measuring tool M400 (8073.00) Roughness standards DIN/ISO/JIS/ASME, MOTIF Measurement travel for longitudinal sensing mm 26 Cut-off (A,) mm 0,08; 0,25; 0,80; 2,50 Cut-off (A,) inch 0,003; 0,010; 0,032; 0,100 Scanning speed mm/s 0,2; 0,5; 1 Feed unit length mm 130 Feed unit width mm 70 Feed unit height mm 50 Evaluation unit length mm 190 Evaluation unit width mm 140 Evaluation unit height mm 75 Weightfeed unit kg 0.9 Weight of the evaluation unit kg 1 499041 Accessories for roughness measuring tool No. 499041 M400 Mounting for the feed unit of the MarSurf M400. For attachment to stands No. 498857 or 499011. 499046 Pivot range Clamp degrees (360.00) ±15 499046 Measuring stand PST-G Measuring stand PST-G. Granite table with central 10 mm T-slot. Suitable for: Roughness measuring tools No. 499030 size ST1, No. 498835 size PS10,499001 size M300,499041 size M400. Optional extras: Indexing table CT120 on request. Mounting No. 499035 for feed unit GARANT ST1. Mounting No. 499012 for feed units MarSurf M300. Mounting No. 499046 for feed units MarSurf M400. Type PST-G I Is 49 8857 (1683.00) Height adjustment range of column mm 300 Base length mm 500 Base width mm 300 254
