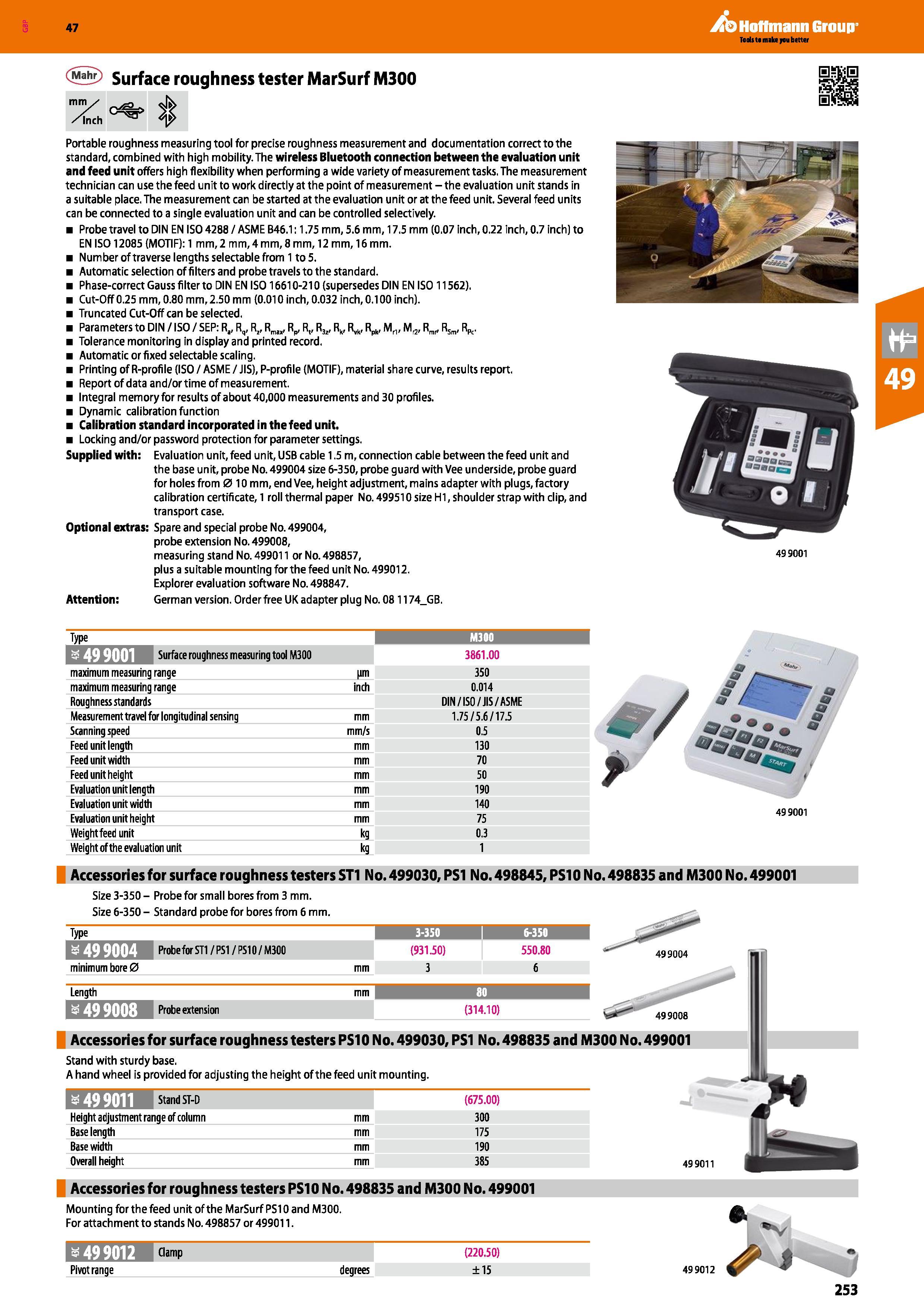

Hoffmann Group 47 Surface roughness tester MarSurf M300 Portable roughness measuring tool for precise roughness measurement and documentation correct to the standard, combined with high mobility. The wireless Bluetooth connection between the evaluation unit and feed unit offers high flexibility when performing a wide variety of measurement tasks. The measurement technician can use the feed unit to work directly at the point of measurement - the evaluation unit stands in a suitable place. The measurement can be started at the evaluation unit or at the feed unit. Several feed units can be connected to a single evaluation unit and can be controlled selectively. Probe travel to DIN EN ISO 4288 / ASME B46.1:1.75 mm, 5.6 mm, 17.5 mm (0.07 inch, 0.22 inch, 0.7 inch) to EN IS012085 (MOTIF): 1 mm,2 mm,4 mm,8 mm, 12 mm, 16 mm. Number of traverse lengths selectable from 1 to 5. Automatic selection of filters and probe travels to the standard. Phase-correct Gauss filter to DIN EN IS016610-210 (supersedes DIN EN ISO 11562). Cut-Off 0.25 mm, 0.80 mm, 2.50 mm (0.010 inch, 0.032 inch, 0.100 inch). Truncated Cut-Off can be selected. Parameters to DIN / ISO / SEP: Rs, Rq, Rz, Rms>, Rp, R„ R3z, Rk, R„k, Rpk, Mrl, Mr2, Rmr, RSm, RPc. Tolerance monitoring in display and printed record. Automatic or fixed selectable scaling. Printing of R-profile (ISO / ASME / JIS), P-profile (MOTIF), material share curve, results report. Report of data and/or time of measurement. Integral memory for results of about 40,000 measurements and 30 profiles. Dynamic calibration function Calibration standard incorporated in the feed unit. Locking and/or password protection for parameter settings. Supplied with: Evaluation unit, feed unit, USB cable 1.5 m, connection cable between the feed unit and the base unit, probe No. 499004 size 6-350, probe guard with Vee underside, probe guard for holes from 010 mm, end Vee, height adjustment, mains adapter with plugs, factory calibration certificate, 1 roll thermal paper No. 499510 size HI, shoulder strap with clip, and transport case. Optional extras: Spare and special probe No. 499004, probe extension No. 499008, measuring stand No. 499011 or No. 498857, plus a suitable mounting for the feed unit No. 499012. Explorer evaluation software No. 498847. Attention: German version. Order free UK adapter plug No. 081174_GB. 499001 Type 499001 Surface roughness measuring tool M300 maximum measuring range maximum measuring range Roughness standards Measurement travel for longitudinal sensing Scanning speed Feed unit length Feed unit width Feed unit height Evaluation unit length Evaluation unit width Evaluation unit height Weightfeed unit Weight of the evaluation unit im inch mm mm/s mm kg kg 3861.00 350 0.014 DIN / ISO / JIS/ASME 1.75/5.6/17.5 0.5 130 70 50 190 140 75 0.3 1 499001 Size 3-350 - Probe for small bores from 3 mm. Size 6-350- Standard probe for bores from 6 mm. Type 3-350 6-350 w 49 9004 Probe for ST1/PS1/PS10/M300 (931.50) 550.80 minimum bore 0 mm 3 fi Length mm 80 1 499008 Probe extension (314.10) 499008 Accessories for surface roughness testers PS10 No. 499030, PS1 No. 498835 and M300 No. 499001 Stand with sturdy base. A hand wheel is provided for adjusting the height of the feed unit mounting. 499011 Stand ST-D Height adjustment range of column Base length Basewidth Overall height mm (675.00) 300 175 190 385 Accessories for roughness testers PS10 No. 498835 and M300 No. 499001 Mounting for the feed unit of the MarSurf PS10 and M300. For attachment to stands No. 498857 or 499011. 499012 Pivot range Clamp degrees (220.50) ±15 499012 253 499011
