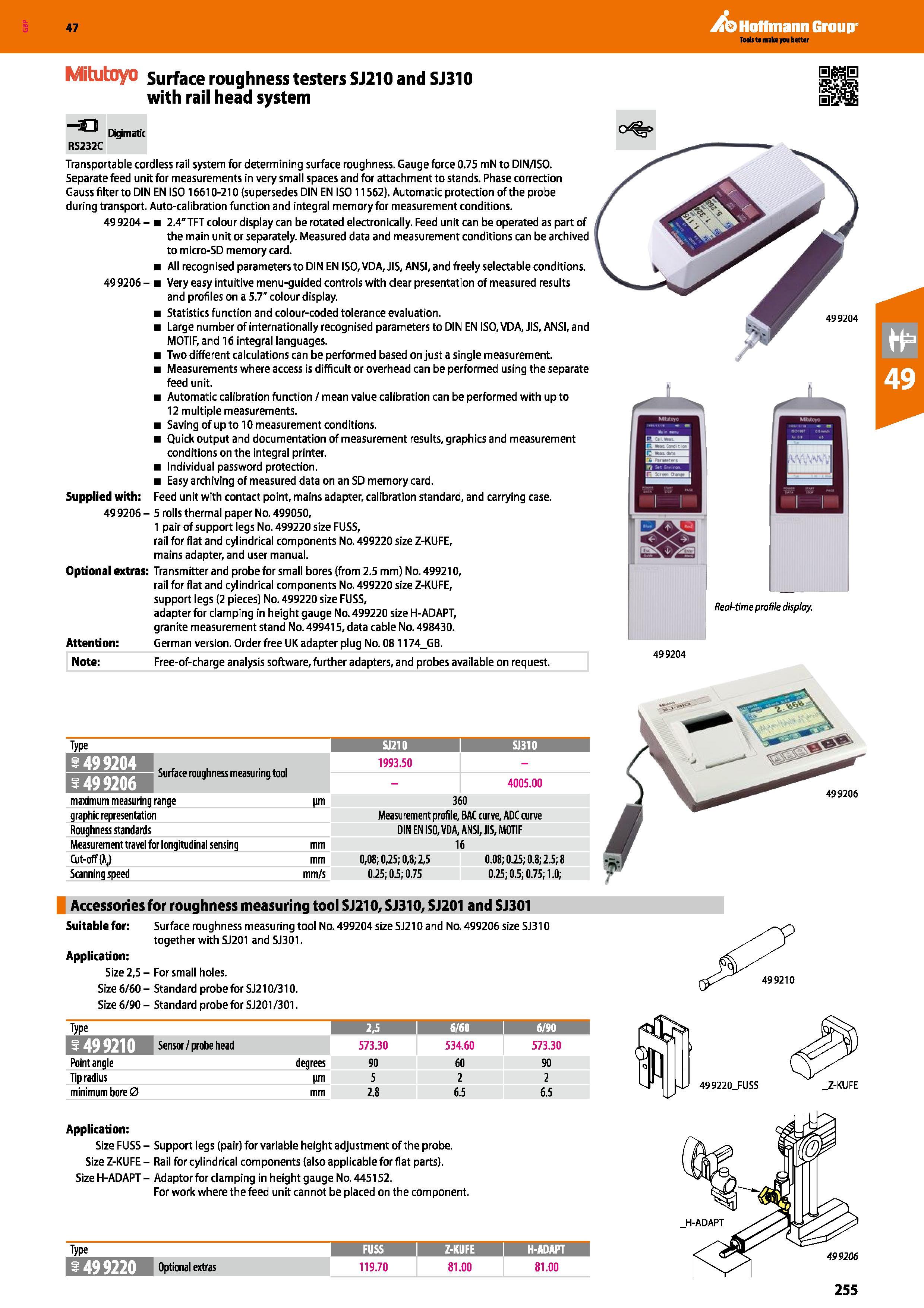

Mitutoyo Surface roughness testers SJ210 and SJ310 with rail head system Dkjmatic -SJ RS232C Transportable cordless rail system for determining surface roughness. Gauge force 0.75 mN to DIN/ISO. Separate feed unit for measurements in very small spaces and for attachment to stands. Phase correction Gauss filter to DIN EN ISO 16610-210 (supersedes DIN EN ISO 11562). Automatic protection of the probe during transport. Auto-calibration function and integral memory for measurement conditions. 499204- 2.4"TFT colour display can be rotated electronically. Feed unit can be operated as part of the main unit or separately. Measured data and measurement conditions can be archived to micro-SD memory card. All recognised parameters to DIN EN ISO, VDA, JIS, ANSI, and freely selectable conditions. 499206- Very easy intuitive menu-guided controls with clear presentation of measured results and profiles on a 5.7" colour display. Statistics function and colour-coded tolerance evaluation. Large number of internationally recognised parameters to DIN EN ISO, VDA, JIS, ANSI, and MOTIF, and 16 integral languages. Two different calculations can be performed based on just a single measurement. Measurements where access is difficult or overhead can be performed using the separate feed unit. Automatic calibration function / mean value calibration can be performed with upto 12 multiple measurements. Saving of upto 10 measurement conditions. Quick output and documentation of measurement results, graphics and measurement conditions on the integral printer. Individual password protection. Easy archiving of measured data on an SD memory card. Supplied with: Feed unit with contact point, mains adapter, calibration standard, and carrying case. 499206 - 5 rolls thermal paper No. 499050, 1 pair of support legs No. 499220 size FUSS, rail for flat and cylindrical components No. 499220 size Z-KUFE, mains adapter, and user manual. Optional extras: Transmitter and probe for small bores (from 2.5 mm) No. 499210, rail for flat and cylindrical components No. 499220 size Z-KUFE, support legs (2 pieces No. 499220 size FUSS, adapter for clamping in height gauge No. 499220 size H-ADAPT, granite measurement stand No. 499415, data cable No. 498430. Attention: German version. Order free UK adapter plug No. 081174_GB. Note: Free-of-charge analysis software, further adapters, and probes available on request. _ Real-time profile display. 499204 Type SJ210 1 SJ310 1993.50 Surface roughness measuring tool 4005.00 maximum measuring range pm 360 graphic representation Measurement profile, BAC curve, ADC curve Roughness standards DIN EN ISO, VDA, ANSI, JIS, MOTIF Measurement travel for longitudinal sensing mm 16 Cut-off (\) mm 0,08; 0,25; 0,8; 2,5 0.08; 0.25; 0.8; 2 5; 8 Scanning speed mm/s 0.25; 0.5; 0.75 0.25; 0.5; 0.75; 1.0; Accessories for roughness measuring tool SJ210, SJ310, SJ201 and SJ301 Suitable for: Surface roughness measuring tool No. 499204 size SJ210 and No. 499206 size SJ310 together with SJ201 and SJ301. Application: Size 2,5 - For small holes. Size 6/60- Standard probe for SJ210/310. Size 6/90- Standard probe for SJ201/301. Type 2,5 6/60 I 6/90 Sensor/probe head 573.30 534.60 573.30 Point angle degrees 90 60 90 Tip radius pm 5 2 2 minimum bore 0 mm 2.8 6.5 6.5 499210 499220_FUSS _Z-KUFE Application: Size FUSS - Support legs (pair) for variable height adjustment of the probe. Size Z-KUFE - Rail for cylindrical components (also applicable for flat parts). Size H-ADAPT - Adaptor for clamping in height gauge No. 445152. For work where the feed unit cannot be placed on the component. Type H FUSS i Z-KUFE H-ADAPT ( VM 11 Ootional extras 119.70 81.00 81.00 499204 499206 255
