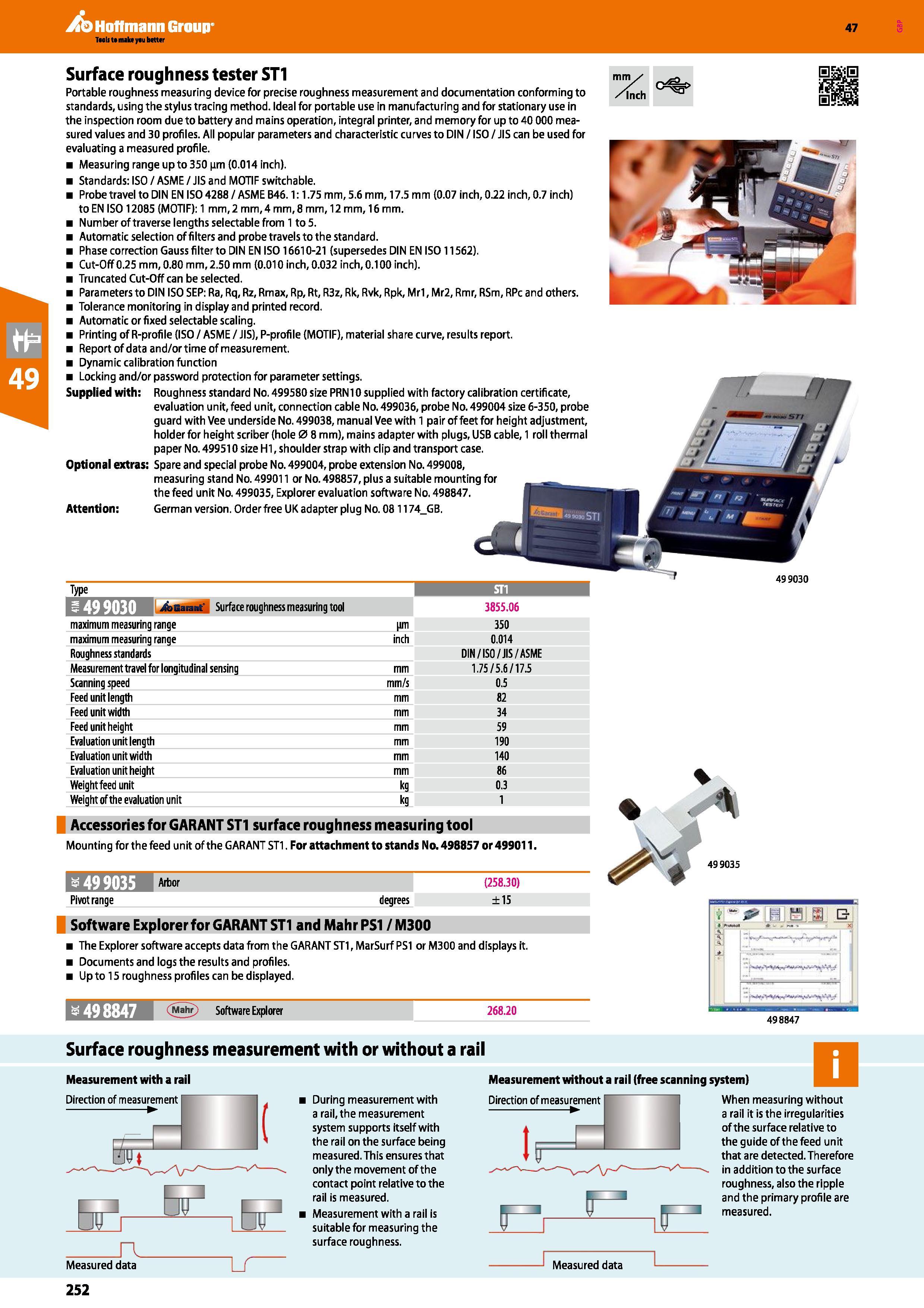

Hoffmann Group 47 Type fcTLLIlETMl jtoGaianf Surface roughness measurina tool 3855.06 maximum measuring range im 350 maximum measuring range inch 0.014 Roughness standards DIN / ISO/JIS/ASME Measurement travel for longitudinal sensing mm 1.75/5.6/17.5 Scanning speed mm/s 0.5 Feed unit length mm 82 Feed unit width mm 34 Feed unit height mm 59 Evaluation unit length mm 190 Evaluation unit width mm 140 Evaluation unit height mm 86 Weightfeed unit kg 0.3 Weight of the evaluation unit kg 1 Accessories for GARANT ST1 surface roughness measuring tool Mounting for the feed unit of the GARANT ST1. For attachment to stands No. 498857 or 499011. w 49 9035 Pivot range (258.30) ±15 mm /inch Surface roughness tester ST1 Portable roughness measuring device for precise roughness measurement and documentation conforming to standards, using the stylus tracing method. Ideal for portable use in manufacturing and for stationary use in the inspection room due to battery and mains operation, integral printer, and memory for up to 40 000 measured values and 30 profiles. All popular parameters and characteristic curves to DIN / ISO / JIS can be used for evaluating a measured profile. Measuring range upto350 (im (0.014 inch). Standards: ISO / ASME / JIS and MOTIF switchable. Probe travel to DIN EN ISO 4288/ASME B46.1:1.75 mm, 5.6 mm, 17.5 mm (0.07 inch, 0.22 inch, 0.7 inch) to EN ISO 12085 (MOTIF): 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm. Number of traverse lengths selectable from 1 to 5. Automatic selection of filters and probe travels to the standard. Phase correction Gauss filter to DIN EN IS016610-21 (supersedes DIN EN IS011562). Cut-Off 0.25 mm, 0.80 mm, 2.50 mm (0.010 inch, 0.032 inch, 0.100 inch). Truncated Cut-Off can be selected. Parameters to DIN ISO SEP: Ra, Rq, Rz, Rmax, Rp, Rt, R3z, Rk, Rvk, Rpk, Mr1,Mr2, Rmr, RSm, RPcand others. Tolerance monitoring in display and printed record. Automatic or fixed selectable scaling. Printing of R-profile (ISO/ASME/JIS), P-profile (MOTIF), material share curve, results report. Report of data and/or time of measurement. Dynamic calibration function Locking and/or password protection for parameter settings. Supplied with: Roughness standard No. 499580 size PRN10 supplied with factory calibration certificate, evaluation unit, feed unit, connection cable No. 499036, probe No. 499004 size 6-350, probe guard with Vee underside No. 499038, manual Vee with 1 pair of feet for height adjustment, holder for height scriber (hole 0 8 mm), mains adapter with plugs, USB cable, 1 roll thermal paper No. 499510 size HI, shoulder strap with clip and transport case. Optional extras: Spare and special probe No. 499004, probe extension No. 499008, measuring stand No. 499011 or No. 498857, plus a suitable mounting for the feed unit No. 499035, Explorer evaluation software No. 498847. Attention: German version. Order free UK adapter plug No. 081174_GB. 499030 Software Explorer for GARANT ST1 and Mahr PS1 / M300 The Explorer software accepts data from the GARANT ST1, MarSurf PS1 or M300 and displays it. Documents and logs the results and profiles. Up to 15 roughness profiles can be displayed. 498847 (Mahr) Software Explorer 268.20 498847 Surface roughness measurement with or without a rail Measurement with a rail Direction of measurement Measured data u During measurement with a rail, the measurement system supports itself with the rail on the surface being measured. This ensures that only the movement of the contact point relative to the rail is measured. Measurement with a rail is suitable for measuring the surface roughness. Measurement without a rail (free scanning system) Direction of measurement f measurement H I Measured data When measuring without a rail it is the irregularities of the surface relative to the guide of the feed unit that are detected. Therefore in addition to the surface roughness, also the ripple and the primary profile are measured. 252
