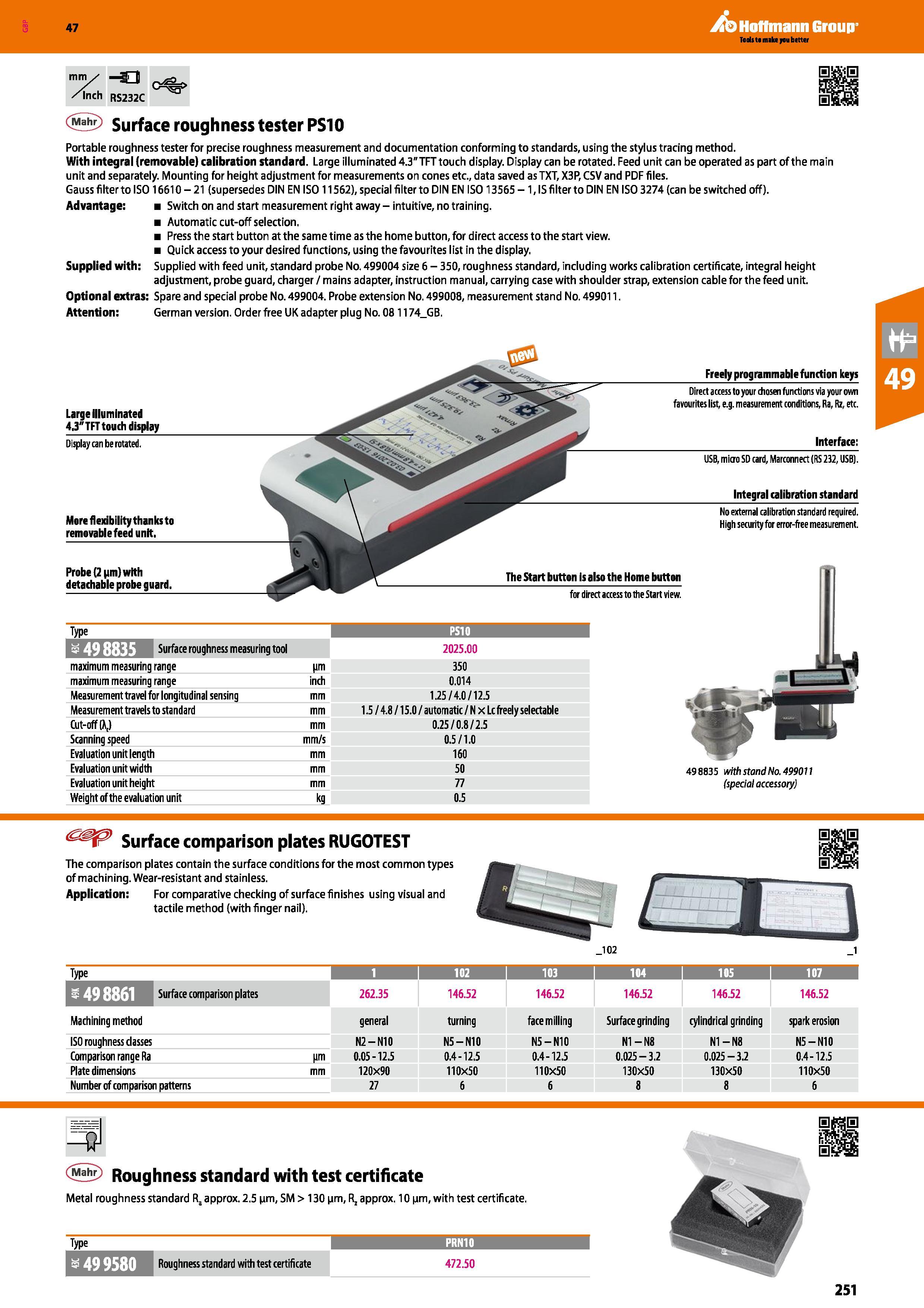

Hoffmann Group 47 Inch RS232C Surface roughness tester PS10 Portable roughness tester for precise roughness measurement and documentation conforming to standards, using the stylus tracing method. With integral (removable) calibration standard. Large illuminated 4.3"TFT touch display. Display can be rotated. Feed unit can be operated as part of the main unit and separately. Mounting for height adjustment for measurements on cones etc., data saved as TXT, X3P, CSV and PDF files. Gauss filter to IS016610 - 21 (supersedes DIN EN IS011562), special filter to DIN EN IS013565 -1, IS filter to DIN EN ISO 3274 (can be switched off). Advantage: Supplied with: Optional extras: Attention: Switch on and start measurement right away - intuitive, no training. Automatic cut-off selection. Press the start button at the same time as the home button, for direct access to the start view. Quick access to your desired functions, using the favourites list in the display. Supplied with feed unit, standard probe No. 499004 size 6 - 350, roughness standard, including works calibration certificate, integral height adjustment, probe guard, charger / mains adapter, instruction manual, carrying case with shoulder strap, extension cable for the feed unit. Spare and special probe No. 499004. Probe extension No. 499008, measurement stand No. 499011. German version. Order free UK adapter plug No. 081174_GB. Surface comparison plates RUGOTEST The comparison plates contain the surface conditions for the most common types of machining. Wear-resistant and stainless. Application: For comparative checking of surface finishes using visual and tactile method (with finger nail). _102 _1 Type 1 1 I 102 I 103 1 104 105 107 Surface comparison plates 262.35 146.52 146.52 146.52 146.52 146.52 Machining method general turning face milling Surface grinding cylindrical grinding spark erosion ISO roughness classes N2-N10 N5-N10 N5-N10 N1-N8 N1-N8 N5-N10 Comparison range Ra im 0.05-12.5 0.4-12.5 0.4-12.5 0.025 - 3.2 0.025-3.2 0.4-12,5 Plate dimensions mm 120x90 110x50 110x50 130x50 130x50 110x50 Numberof comparison patterns 27 6 6 8 8 6 Roughness standard with test certificate Metal roughness standard Ra approx. 2.5 nm, SM > 130 jm, R; approx. 10 jm, with test certificate. Type PRN10 499580 Roughness standard with test certificate 472.50 PS10 ZHIMVm Surface roughness measuring tool 2025.00 maximum measuring range pm 350 maximum measuring range inch 0.014 Measurement travel for longitudinal sensing mm 1.25/4.0/12.5 Measurement travels to standard mm 1.5 / 4.8 /15.0 / automatic /NxLc freely selectable Cut-off (A,) mm 0.25/0.8/2.5 Scanning speed mm/s 0.5/1.0 Evaluation unit length mm 160 Evaluation unit width mm 50 Evaluation unit height mm 77 Weight of the evaluation unit kg 0.5 Large illuminated 4,3" TFT touch display Display can be rotated. More flexibility thanks to removable feed unit. Integral calibration standard No external calibration standard required. High security for error-free measurement. Probe (2 im) with detachable probe guard. The Start button is also the Home button for direct access to the Start view. 498835 with stand No. 499011 (special accessory) USB, micro SD card, Marconnect (RS 232, USB). Direct access to your diosen functions via your own favourites list, e.g. measurement conditions, Ra, Rz, etc. Interface: Freely programmable function keys 251
