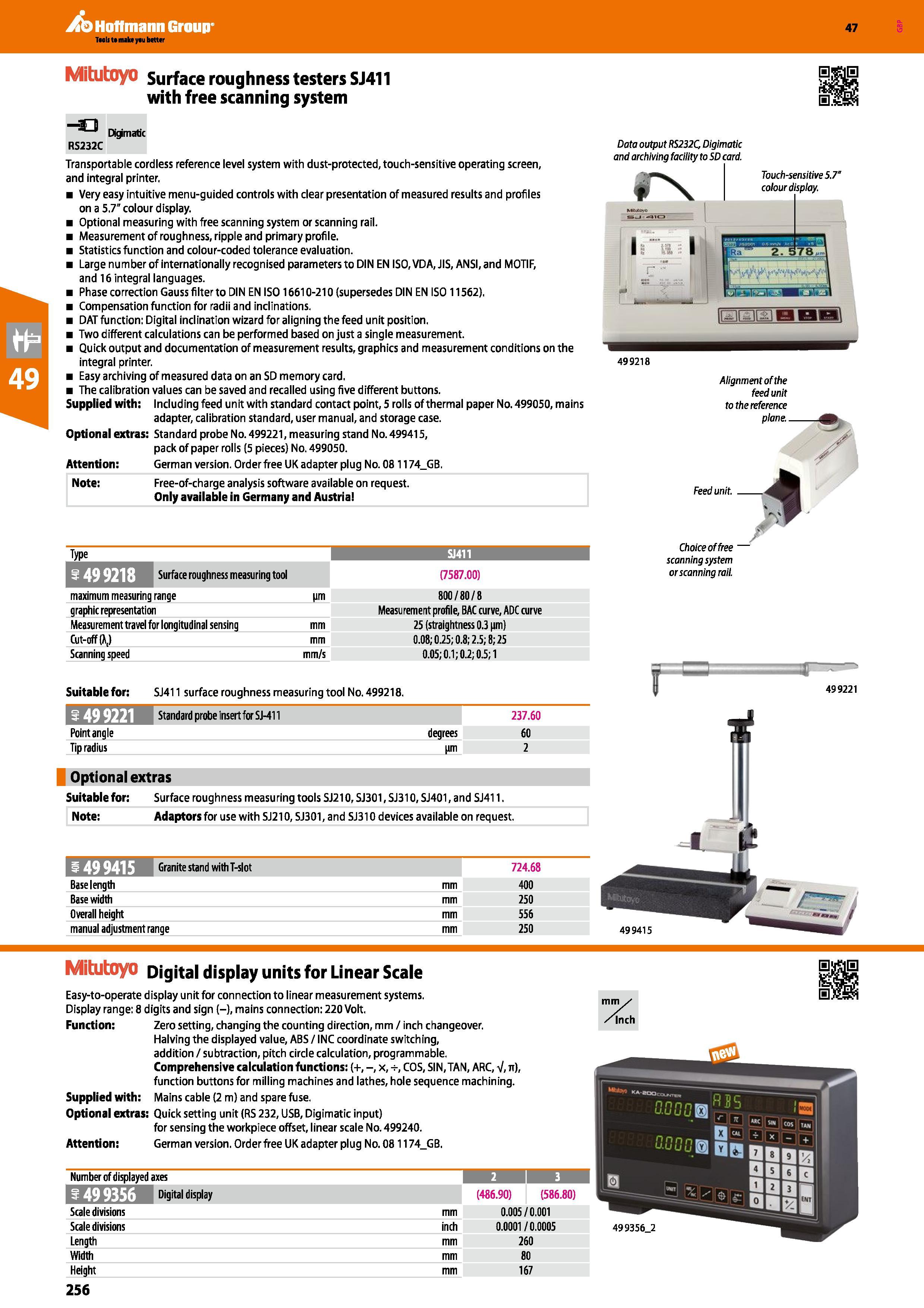

Hoffmann Group 47 Mitutoyo Surface roughness testers SJ411 with free scanning system -a RS232C Digmatic Transportable cordless reference level system with dust-protected, touch-sensitive operating screen, and integral printer. Very easy intuitive menu-guided controls with clear presentation of measured results and profiles on a 5.7" colour display. Optional measuring with free scanning system or scanning rail. Measurement of roughness, ripple and primary profile. Statistics function and colour-coded tolerance evaluation. Large number of internationally recognised parameters to DIN EN ISO, VDA, JIS, ANSI, and MOTIF, and 16 integral languages. Phase correction Gauss filter to DIN EN IS016610-210 (supersedes DIN EN ISO 11562). Compensation function for radii and inclinations. DAT function: Digital inclination wizard for aligning the feed unit position. Two different calculations can be performed based on just a single measurement. Quick output and documentation of measurement results, graphics and measurement conditions on the integral printer. Easy archiving of measured data on an SD memory card. The calibration values can be saved and recalled using five different buttons. Supplied with: Including feed unit with standard contact point, 5 rolls of thermal paper No. 499050, mains adapter, calibration standard, user manual, and storage case. Optional extras: Standard probe No. 499221, measuring stand No. 499415, pack of paper rolls (5 pieces) No. 499050. Attention: German version. Order free UK adapter plug No. 081174_GB. Note: Free-of-charge analysis software available on request. Only available in Germany and Austria Data output RS232C, Digimatic and archiving facility to SD card. Touch-sensitive 5.7’ colour display. 1 1 1 1 s 1 1 499218 Alignment of the feed unit to the reference plane. _ Type SJ411 I Surface roughness measuring tool (7587.00) maximum measuring range pm 800 / 80 /8 graphic representation Measurement profile, BAC curve, ADC curve Measurement travel for longitudinal sensing mm 25 (straightness 0.3 pm) Cut-off ft,) mm 0.08; 0.25; 0.8; 2.5; 8; 25 Scanning speed mm/s 0.05; 0.1; 0.2; 0.5; 1 Feed unit. . Choice of free' scanning system or scanning rail. I Suitable for: SJ411 surface roughness measuring tool No. 499218. 1499221 499221 Standard probe insert for SJ-411 Point angle Tip radius degrees pm 237.60 60 2 Optional extras Suitable for: Surface roughness measuring tools SJ210, SJ301, SJ310, SJ401, and SJ411. Note: Adaptors for use with SJ210, SJ301, and SJ310 devices available on request. i 499415 Baselength Basewidth Overall height manual adjustment range Granite stand with T-slot mm 724.68 400 250 556 250 Mitutoyo Digital display units for Linear Scale Easy-to-operate display unit for connection to linear measurement systems. Display range: 8 digits and sign (-), mains connection: 220 Volt. Function: Zero setting, changing the counting direction, mm / inch changeover. Halving the displayed value, ABS / INC coordinate switching, addition / subtraction, pitch circle calculation, programmable. Comprehensive calculation functions: (+, -, x, -r, COS, SIN,TAN, ARC, V, n), function buttons for milling machines and lathes, hole sequence machining. Supplied with: Mains cable (2 m) and spare fuse. Optional extras: Quick setting unit (RS 232, USB, Digimatic input) for sensing the workpiece offset, linear scale No. 499240. Attention: German version. Order free UK adapter plug No. 081174_GB. mm / /Inch Numberof displayed axes 2 1 3 I f499356 Bil (486.90) (586.80) Scale divisions mm 0.005 / 0.001 Scale divisions inch 0.0001 / 0.0005 Length mm 260 Width mm 80 Height mm 167 ogaa -asaajy 499356_2 256 499415
